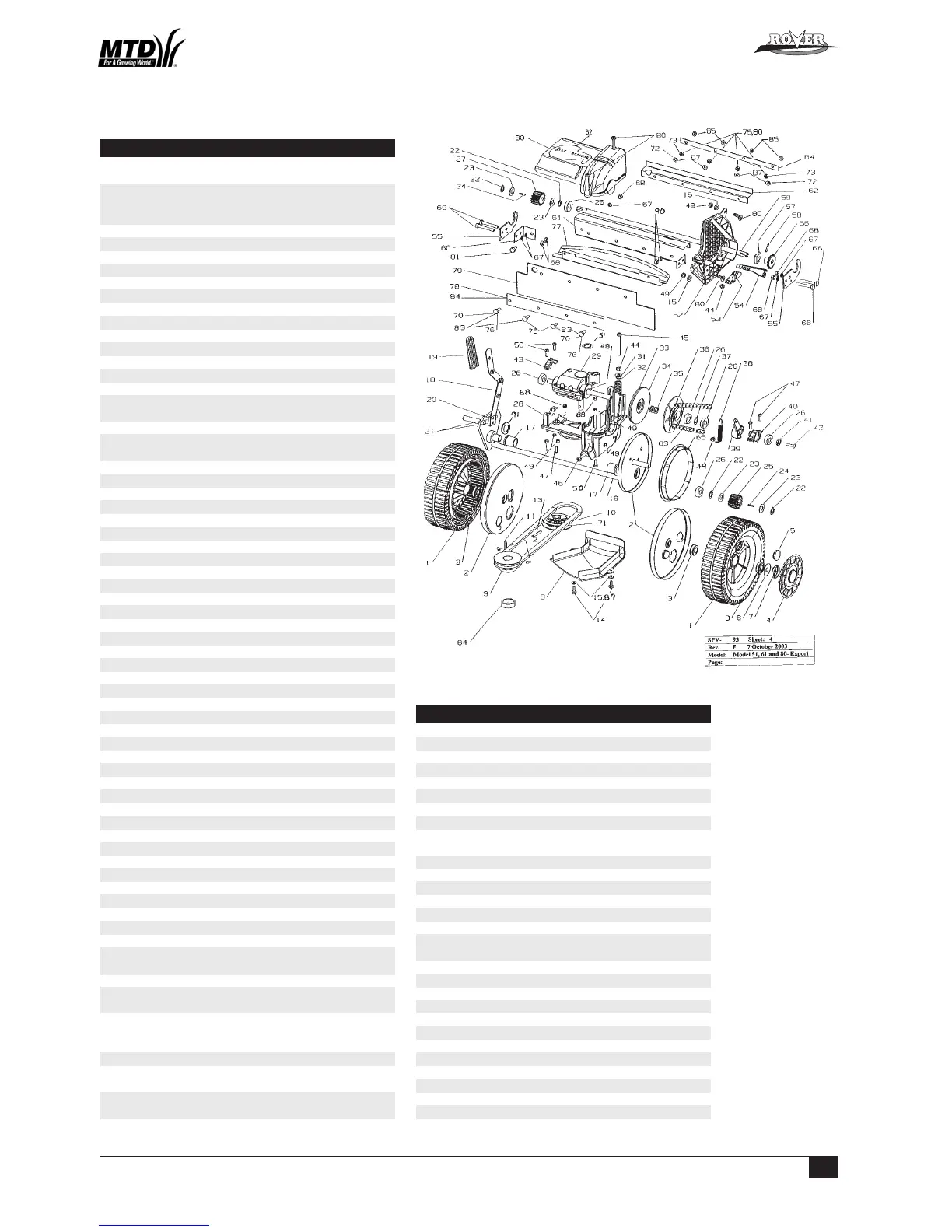

SPARE PARTS VIEWS
SELF PROPELLED SPARE PARTS
No. Part No. Description Qty
1 A10624 Wheel assembly- 20” 2
1 A 10669 Wheel assembly- 22” 2
2 A 03381 Cover Plate- 20” LH 1
2 A 0338 0 Cover Plate- 20” RH 1
2 A16045 Cover Plate- 22” Common 2
3 A 03353 Wheel bearing 4
4 A03414 Hub cap 2
5 A3521047 Plug 2
6 A 373109 Tension washer 2
7 A03092 Ratchet plate 2
8 A 16 0 75 Belt cover 1
9 A 16 0 65 Engine pulley 1
10 A 16 079 Gearbox pulley 1
11 A 02051 Woodruff key 1
12 A04075 Grub screw- 1/4” x 3/8” unc 2
13 A04073 Roll pin- gearbox pulley 5 x 40 1
14 A04167 Setscrew- M5 x 16 hex. 2
15 A04099 Washer- 3/16” x 3/4” x 16g 2
16 A10639 Rear axle assembly- complete 20” 1
16 A 10637 Rear axle assembly- complete 22” 1
17 A 1629 4 Axle bush 2
18 A10284 Height adjustment lever- 20” 1
18 A10635 Height adjustment lever- 22” 1
19 A03250 Handle grip 1
20 A 03336 Packing plate 1
21 A 0211 8 Rivets- 1/4” x 3/4” 2
22 A02090 Circlip 4
23 A 03373 Pawl retainer 4
24 A 03372 Pawl 2
25 A 03370 Pinion- LH 1
26 A 03361 Bearing 2
27 A 03371 Pinion- RH 1
28 A 16131 Drive frame 1
29 A10640 Gearbox assembly 1
30 A 16 0 63 Frame cover 1
31 A 16 0 61 Cap- spring 1
32 A 16 0 6 4 Spring- gearbox 1
33 A10636 Clutch plate assembly- incl. item 34 1
34 A 0339 0 Clutch lining 1
35 A 163 2 2 Spring- clutch plates 1
36 A 10170 Clutch plate assembly- drive 1
37 A 16 056 Thrust washer 1
38 A16323 Spring- cam lever 1
39 A 16 05 7 Cam lever 1
40 A16060 Bearing retainer and cam 1
41 A 1613 9 Thrust cap 1
42 A04165 Screw- M6 x 12 csk. Cap screw 1
43 A 16 0 6 2 Bearing cap 1
44 A 0 2111 Nyloc nut- M6 2
45 A04162 Screw- M6 x 60 1
46 A0 4161 Screw- M6 x 70 1
47 A04091 Screw- M5 x 16 3
48 A04157 Roll pin- gearbox shaft 1
49 A04163 Nyloc nut- M5 9
50 A04160 Screw- M5 x 40 3
51 A 16337 Label- Caution Drive Belt Tension 1
5
2 A 16 0 6 6 Chain case 1
53 A 16 0 69 Wedge 1
54 A 16 0 6 8 Chain tensioner 1
55 A 16 0 71 Axle supports 2
56 A 16 0 7 2 Sprocket- 12 tooth (
suits 1/8” x 3/4” roll pin
) 1
56 A 1636 0 Sprocket- 12 tooth (
suits 5/32” x 3/4” roll pin
) 1
57 A 0339 4 Felt seal 1
58 A02069 Roll pin- drive shaft (
suits 1/8” x 3/4” roll pin
) 1
58 A 0 4174 Roll pin- drive shaft (
suits 5/32” x 3/4” roll pin
) 1
59 A 16 0 58 Drive shaft- 20” (
suits 1/8” x 3/4” roll pin
) 1
59 A 16179 Drive shaft- 22” (
suits 1/8” x 3/4” roll pin
) 1
59 A 16 361 Drive shaft- 22” (
suits 5/32” x 3/4” roll pin
) 1
60 A 03391 Mount bracket 1
61 A 03383 Rear axle retainer- CE 1
61 A03878 Rear axle retainer- US 1
62 A03393 Drive shaft shield- CE 1
62 A 03879 Drive shaft shield- US 1
No. Part No. Description Qty
63 A 16 0 78 Chain- 3/8” x 58 pitch ASA incl. con link 1
64 A 1618 2 Spacer- engine pulley 20” only 1
65 A03382 Seal- rear wheel 20” only 2
66 A02081 Setscrew- 1/4” x 1-3/4” unc. hex. 2
67 A02027 Washer- 1/4” spring 5
68 A02001 Nut- 1/4” hex. 5
69 A02146 Setscrew- 1/4” x 3/4” unc. hex. 2
70 A 02078 Setscrew- 1/4” x 1/2” unc. hex. CE only 2
71 A 16 07 7 Belt- Dayco SPZX-612 20” only 1
71 A 16 217 Belt- Dayco SPZX-670 22” only 1
72 A02027 Washer- 1/4” spring CE only 2
73 A02001 Nut- 1/4” unc. hex. CE only 2
75 A 02 235 Nyloc nut- 1/4” unc- 20” US only 4
76 A 0 2 214 Setscrew- 1/4” x 5/8” unc. hex. 20” US 4
77 A03604 Extension- CE mowers only 1
78 A 03881 Backing plate- 20” US only 1
79 A03883 Rubber flap- 20” only 1
79 A 162 35 Rubber flap- 22” only 1
80 A04158 Screw- M5 x 20 4
81 A02078 Setscrew- 1/4” x 1/2” unc. hex. 1
82 A 16 239 Label- Self propelled cover 1
83 A 0 2169 Setscrew- 1/4” x 1” unc. 22” US only 4
84 A 16 28 4 Backing plate- 22” US only 2
85 A 02 235 Nyloc nut- 1/4” unc. 22” US only 4
86 A02001 Nut- 1/4” unc. hex. 22” US only 4
87 A02027 Washer- 1/4” spring 22” US only 4
88 A04169 Nut- M5 hex. 2
89 A02234 Washer- 3/16” shakeproof 2
90 A02235 Nyloc nut- 1/4” hex. 2
91 A04013 Washer- 3/4” x 1- 1/2” flat 1
