31 Pull off the knobs on the heater controls.
32 Undo the three screws securing the cowl
to the facia above the instrument panel.
33 Undo the two screws below the vent
panel on the driver’s side and the two screws
below the heater/air conditioning control
panel.
34 Release the clips at the top, at each end,
ease the cowl away from the facia slightly,
and disconnect the switch panel and heater
control/air conditioning wiring multiplugs.
35 Remove the cowl from the car.
36 Undo the four screws and remove the
driver’s vent panel.
37 Undo the three screws and remove the
switch unit.
38 Undo the four screws and remove the
heater and air conditioning control unit.
39 Refitting is a reversal of removal.
Lower facia switches
40 Refer to Section 12 for removal of the
switches on the clock console.
5 Bulbs (exterior lights) -
renewal
1
Note: Ensure that all exterior lights are
switched off before disconnecting the wiring
connectors to any exterior light bulbs.
Headlight dipped beam bulb
Note: On 1992 model year onwards vehicles,
remove the headlight lens unit first, as
described in Section 7, for access to the bulb.
1 From within the engine compartment,
disconnect the wiring multiplug at the rear of
the headlight bulb, then pull off the rubber
cover (see illustration).
2 Release the wire retaining clip and
withdraw the bulb from its location in the
headlight lens unit (see illustration). Take
care not to touch the bulb glass with your
fingers; if touched. clean the bulb with
methylated spirit.
3 Fit the bulb, ensuring that the lugs in the
bulb engage with the slots in the lens unit.
4 Refit the retaining clip, rubber cover and
wiring plug. Ensure that the tab marked TOP
on the cover is uppermost.
Sidelight bulb
Note: On 1992 model year onwards vehicles,
remove the headlight lens unit first, as
described in Section 7, for access to the bulb.
5 From within the engine compartment,
disconnect the wiring multiplug at the rear of
the headlight bulb, then pull off the rubber
cover.
6 Withdraw the sidelight bulbholder from the
headlight lens unit and remove the bulb from
the holder (see illustration).
7 Fit a new bulb to the holder and fit the
holder to the lens unit.
8 Refit the rubber cover and headlight wiring
plug. Ensure that the tab marked TOP on the
cover is uppermost.
Headlight main beam bulb
Note: On 1992 model year onwards vehicles,
remove the headlight lens unit first, as
described in Section 7, for access to the bulb.
9 Withdraw the plastic cover, release the wire
clip and withdraw the bulb from the headlight
lens unit (see illustration). Take care not to
touch the bulb glass with your fingers; if
touched, clean the bulb with methylated spirit.
10 Disconnect the wiring connectors and
remove the bulb.
11 Connect the wiring to the new bulb and
place the bulb in the light unit, ensuring that
the flange cut-out locates in the housing
ridge.
12 Refit the wire clip and the plastic cover.
Front direction indicator bulb
13 From within the engine compartment,
unhook the retaining spring and withdraw the
lens unit and seal from the wing (see
illustration).
14 Press and turn the bulbholder anti-
clockwise to remove it from the lens unit;
remove the bulb from the holder in the same
way (see illustration).
15 Refit the bulb and holder, locate the lens
unit in position and secure with the retaining
spring.
Direction indicator side repeater
bulb
16 Press the light unit to the right, free the
left-hand retainer and withdraw the unit from
the front wing.
12•6 Body electrical system

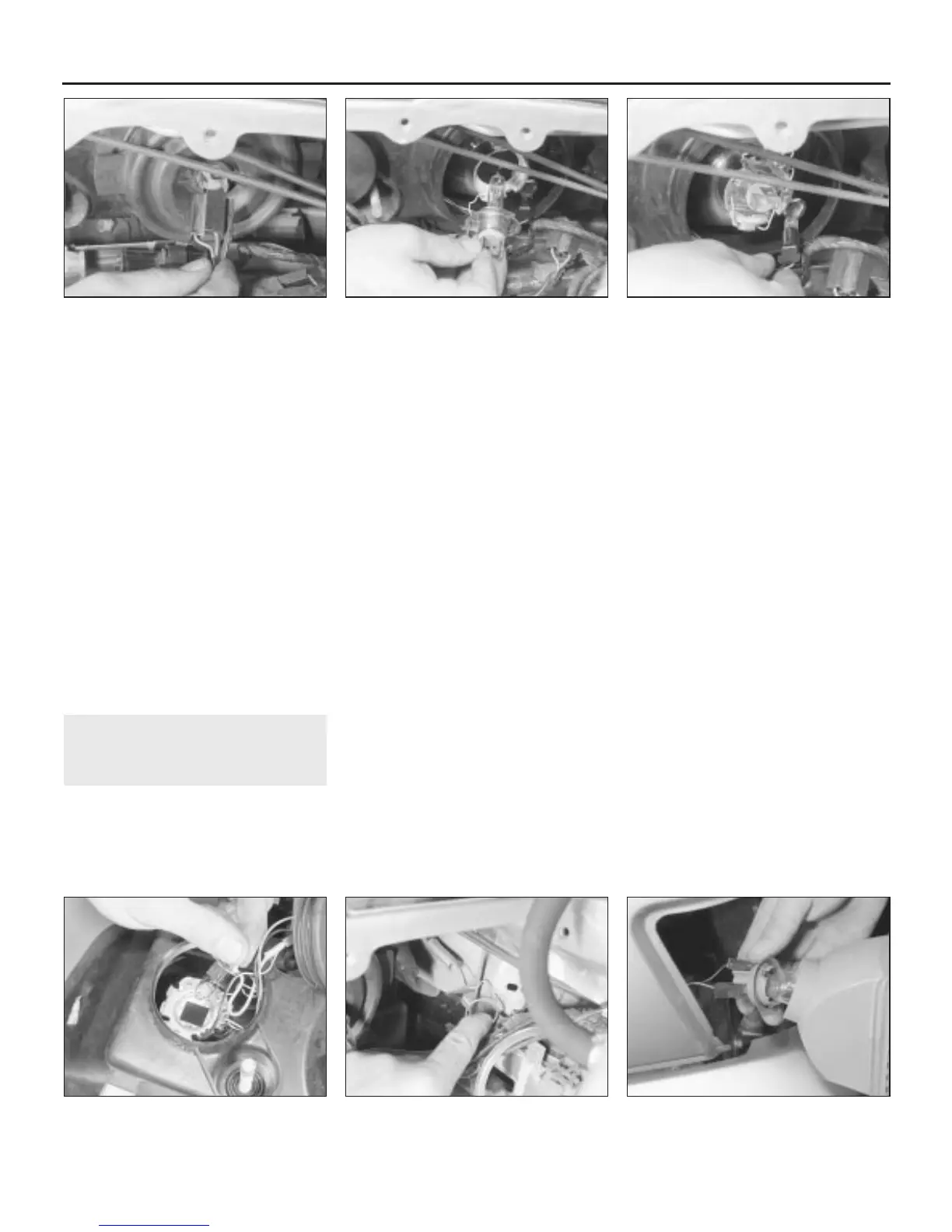

5.14 Withdraw the lens assembly and
remove the bulbholder
5.13 Unhook the direction indicator lens
retaining spring
5.9 Withdraw the main beam bulb from the
headlight unit
5.6 Withdraw the sidelight bulbholder from
the headlight unit
5.2 Release the wire clip and withdraw the
bulb from the headlight unit
5.1 Disconnect the headlight dipped beam
bulb multiplug
