17 Turn the bulbholder anti-clockwise to
remove it from the light unit, then remove the
push-fit bulb from the holder.
18 Fit a new bulb, refit the bulbholder, and
push the light unit into position in the wing.
Front fog light bulb
19 Undo the two upper screws and remove
the light unit surround.
20 Disconnect the wiring multiplug and
remove the light unit from the front bumper
assembly
21 Release the rubber cover at the base of
the light unit and disconnect the wiring at the
connector.
22 Release the retaining spring clip and
withdraw the bulb and holder.
23 Fit a new bulb then refit the components.
Rear light cluster bulbs
Rear wing light cluster
24 From within the luggage compartment,
release the trim covering (where fitted) for
access to the light cluster.
25 On early models, press the retainer on the
access panel and remove the panel (see
illustration).
26 Lift the top retainer on the bulb panel,
press the two bottom retainers and withdraw
the panel (see illustration). On the later type
bulb panel, press the top and bottom
retainers together and remove the panel (see
illustration).
27 Remove the bulbs as required by
depressing and turning anti-clockwise (see
illustration).
28 Fit the new bulb(s), push the bulb panel
into position and refit the access panel and/or
trim panel.
Boot lid/tailgate light cluster
29 On Saloon and Coupe models, unscrew
the plastic fasteners to release the boot lid
trim lining. On Fastback models, remove the
plastic cover.
30 Squeeze the plastic lever and withdraw
the bulbholder.
31 Remove the bulbs as required by
depressing and turning anti-clockwise.
32 Fit the new bulb(s), push the bulbholder
into position and refit the lining or cover.
Number plate light bulb
Saloon models - pre-1992 model year
33 Open the boot lid, turn the bulbholder
anti-clockwise and withdraw the bulb and
holder (see illustration).
34 Remove the push-fit bulb from the holder.
35 Fit the new bulb and refit the bulbholder.
Fastback models - pre-1992 model
year
36 Open the tailgate, release the plastic
retaining screws and remove the inner trim.
37 Turn the bulbholder anti-clockwise and
withdraw the bulb and holder (see
illustration).
38 Remove the push-fit bulb from the holder.
39 Fit the new bulb and refit the bulbholder
and trim.
All models - 1992 model year onwards
40 Undo the two screws and withdraw the
number plate light unit from its location (see
illustration).
41 Squeeze the two plastic tags together and
release the bulbholder from the light unit (see
illustration).
42 Remove the festoon bulb from the holder.
43 Fit the new bulb and refit the bulbholder
and light unit.
Engine compartment light bulb
44 Open the bonnet, undo the two retaining
screws and remove the light lens.
Body electrical system 12•7

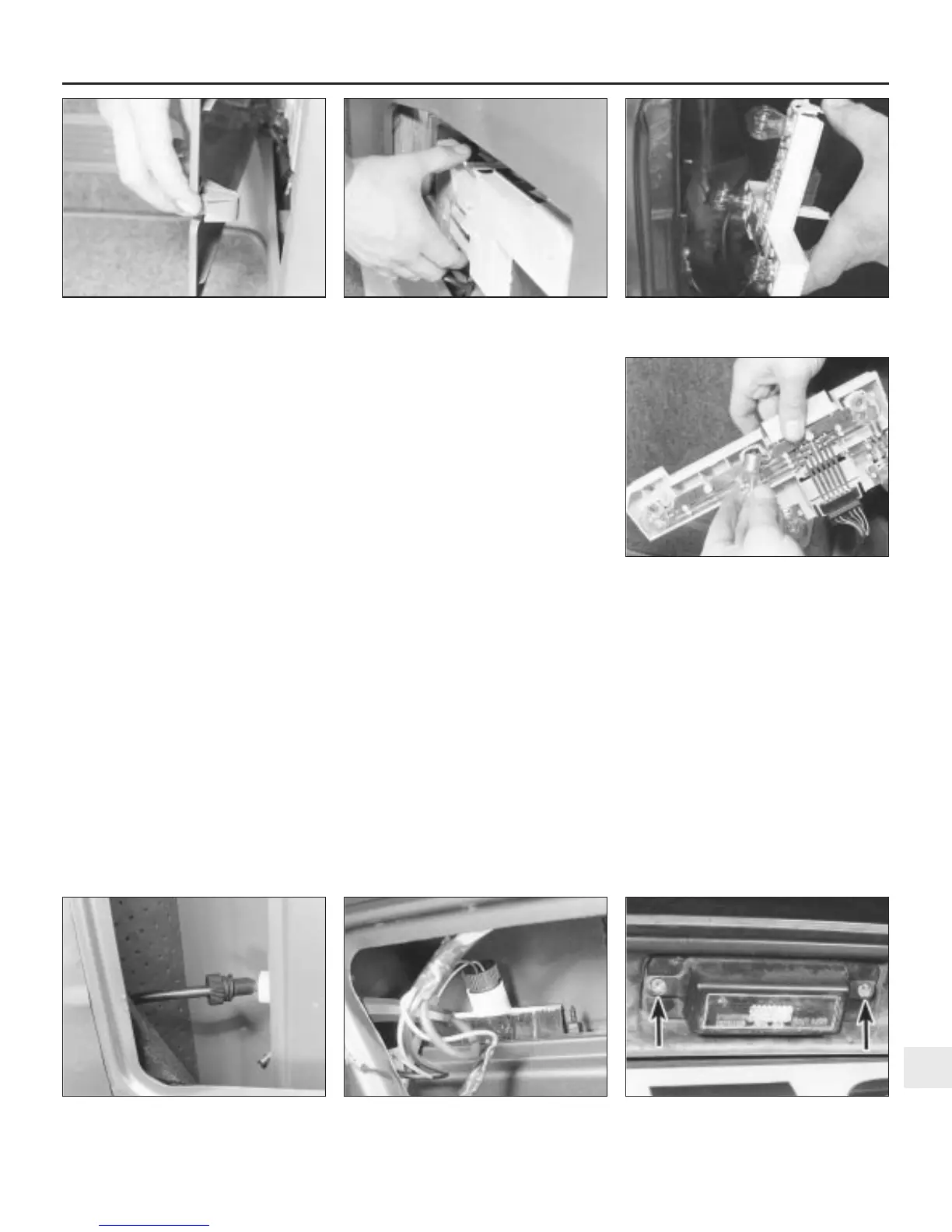

5.26b On the alternative bulb panel, press
the top and bottom retainers together and
remove the panel
5.27 Rear light cluster bulb renewal
5.26a Lift the top retainer on the bulb
panel, press the two bottom retainers and
withdraw the panel
5.25 Press the retainer on the access
panel and remove the panel
5.40 On later models, undo the number plate
light unit retaining screws (arrowed) . . .
5.37 Number plate light bulbholder on
early Fastback models
5.33 Number plate light bulbholder on
early Saloon
