disconnect the wiring multiplug from the side
of the unit.
3 Undo the four nuts and remove the unit
from its location.
Refitting
4 Refitting is a reversal of removal.
21 Speakers -
removal and refitting
1
Rear speaker - Saloon and
Coupe models
Removal
1 From inside the luggage compartment,
disconnect the two leads and undo the four
retaining nuts (see illustration).
2 Withdraw the speaker upwards into the car,
and remove it from the rear parcel shelf (see
illustration).
Refitting
3 Refitting is a reversal of removal.
Rear speaker - Fastback models
Removal
4 Undo the three screws securing the trim
panel to the parcel tray support and remove
the trim panel (see illustration).
5 Remove the speaker grille.
6 Undo the six speaker retaining screws, lift
the speaker from its location and disconnect
the wiring connectors (see illustration).
7 Remove the speaker from the car.
Refitting
8 Refitting is a reversal of removal.
Front main speaker and filter
Removal
9 Remove the front door inner trim panel as
described in Chapter 11.
10 Undo the four screws securing the
speaker to the door (see illustration).
11 Withdraw the speaker, disconnect the
leads and remove the speaker from the door
(see illustration).
12 To remove the filter, cut off the tape
securing it to the wiring harness adjacent to
the main speaker location.
13 Disconnect the leads at each end and
remove the filter.
Refitting
14 Refitting is a reversal of removal.
Tweeter
Removal
15 Refer to Chapter 11, Section 21 and
remove the escutcheon around the door inner
release handle.
16 Rotate the tweeter clockwise to release it
from the escutcheon, then disconnect the
leads and remove the tweeter (see
illustration).
Refitting
17 Refitting is a reversal of removal.
22 Aerial amplifier -
removal and refitting
1
Saloon and Coupe models
Removal
Note: The aerial amplifier is located below the
rear parcel shelf on pre-1992 models, and
above it on later models.
1 Disconnect the battery negative (earth) lead
(refer to Chapter 5, Section 1).
2 On later models, remove the rear speakers
(Section 21), fold the seat squabs forward and
remove the parcel tray and insulation pad.
3 From inside the luggage or passenger
compartment, as applicable, disconnect the

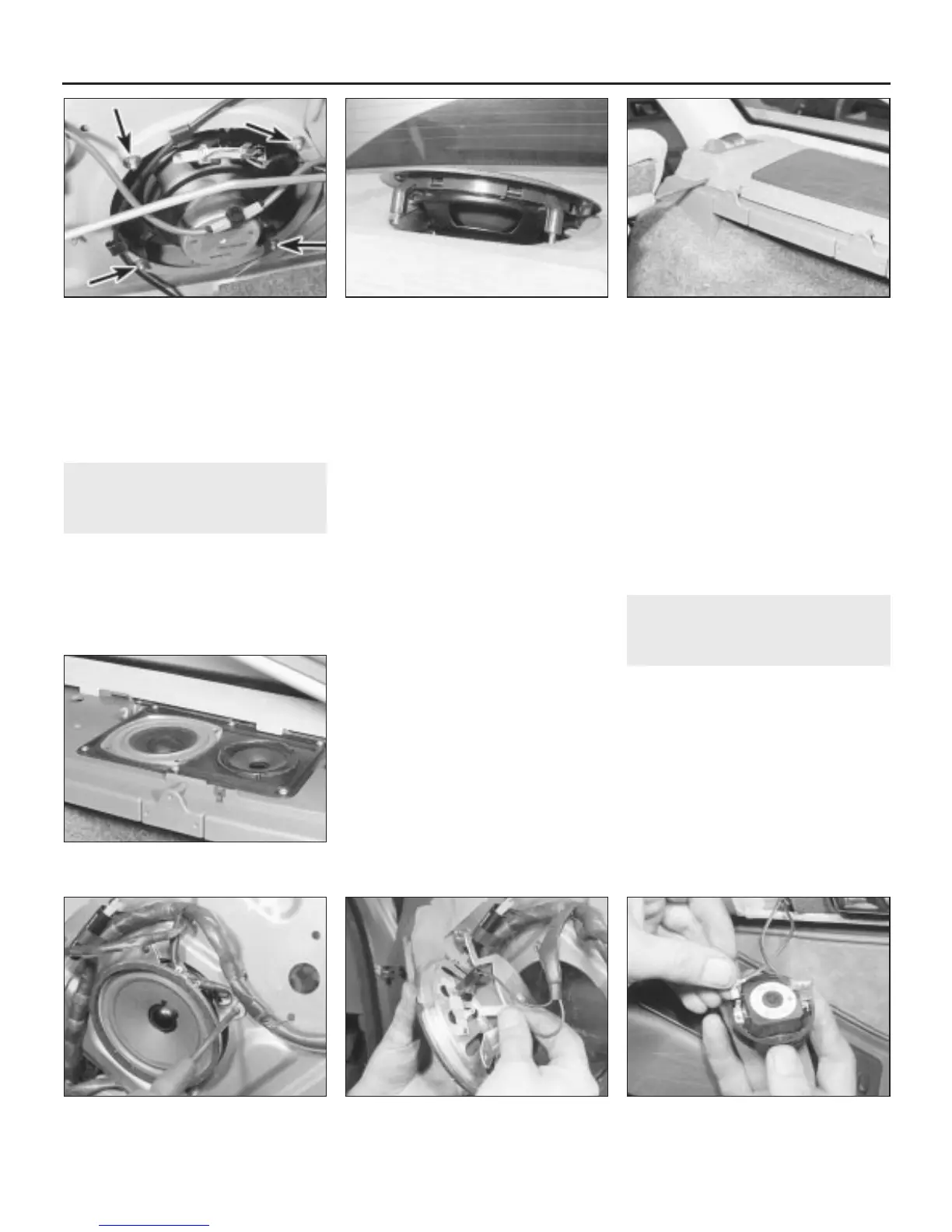

12•16 Body electrical system
21.16 Disconnect the wiring and remove
the tweeter
21.11 Withdraw the speaker and
disconnect the wiring
21.10 Undo the main door speaker
retaining screws
21.6 Undo the six screws and remove the
speaker assembly
21.4 Remove the trim panel over the rear
speaker on Fastback models
21.2 Removing the rear speaker from the
parcel shelf
21.1 Rear speaker retaining nuts (arrowed)
on Saloon and Coupe models
