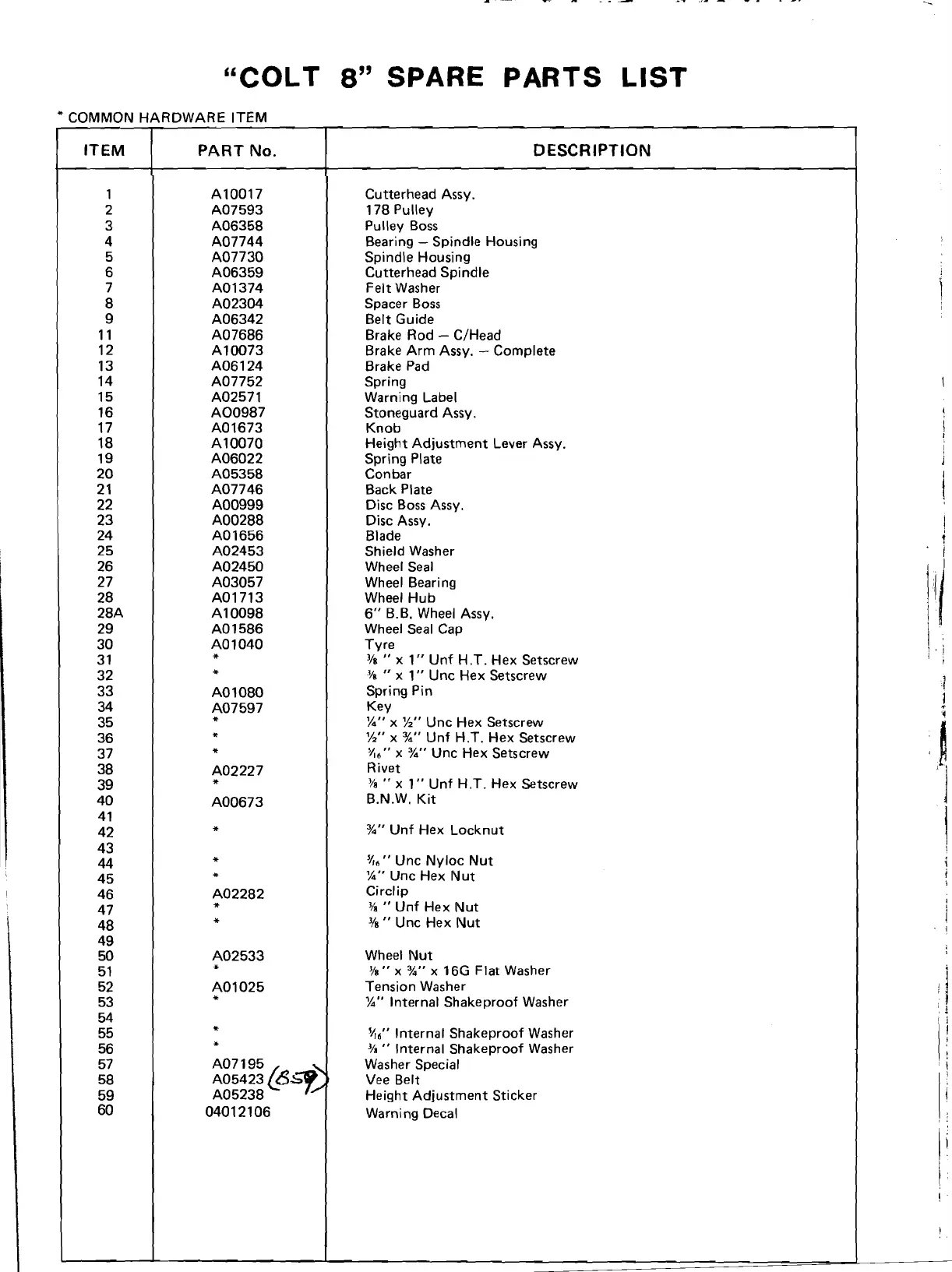

"COLT 8" SPARE PARTS LIST
* COMMON HARDWARE ITEM
ITEM
PART No.
DESCRIPTION
1 A 10017 Cutterhead Assy.
2 A07593 178 Pulley
3
A06358
Pulley Boss
4
A07744
Bearing - Spindle Housing
5
A07730
Spindle Housing
6
A06359 Cutterhead Spindle
7
A01374 Felt Washer
8
A02304
Spacer Boss
9
A06342 Belt Guide
11
A07686 Brake Rod - C/Head
12
Al0073
Brake Arm Assy. - Complete
13
A06124 Brake Pad
14
A07752
Spring
15
A02571 Warning Label
16
A00987 Stoneguard Assy.
17
A01673 Knob
18 Al0070
Height Adjustment Lever Assy.
19
A06022 Spring Plate
20
A05358 Conbar
21
A07746 Back Plate
22
A00999 Disc Boss Assy.
23
A00288
Disc Assy.
24
A01656
Blade
25
A02453
Shield Washer
26
A02450 Wheel Seal
27
A03057 Wheel Bearing
28
A01713 Wheel Hub
28A
Al0098 6" B.B. Wheel Assy.
29
A01586 Wheel Seal Cap
30
A01040
Tyre
31 *
lfs " x t " Unf H.T. Hex Setscrew
32
*
J/
g
"
x t " Unc Hex Setscrew
33
A01080
Spring Pin
34
A07597
Key
35
*
)1.." x Y/' Unc Hex Setscrew
36
*
y," x %" Unf H.T. Hex Setscrew
37
*
'Ii6 " x %" Unc Hex Setscrew
38
A02227
Rivet
39
*
% " x 1" Unf H.T. Hex Setscrew
40
A00673
B.NW. Kit
41
42
*
%" Unf Hex Locknut
43
44
*
51,. " Unc Nyloc Nut
45
*
)1.." Unc Hex Nut
46
A02282
Circlip
47
*
Jig" Unf Hex Nut
48
*
J/s" Unc Hex Nut
49
50
A02533
Wheel Nut
51
*
Vs" x %" x 16G Flat Washer
52
A01025
Tension Washer
53
*
)1.." Internal Shake proof Washer
54
55
*
11,." Internal Shakeproof Washer
56
*
3j, " Internal Shake proof Washer
57
A07195 ~
Washer Special
58
A05423(l3~
Vee Belt
59
A05238
Height Adjustment Sticker
60
04012106
Warning Decal
\
