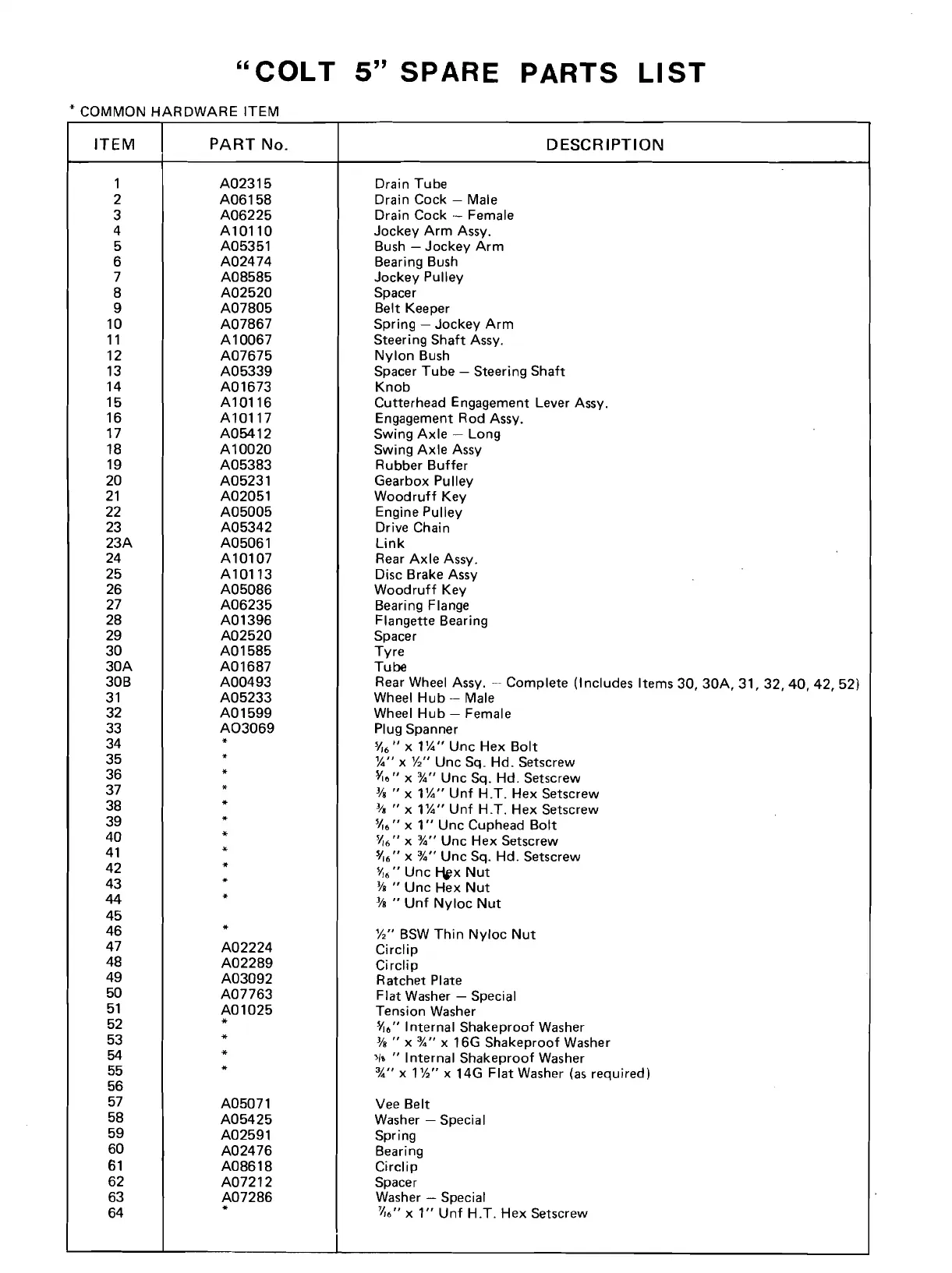

"COLT
5"
SPARE
PARTS
LIST
* COMMON
HARDWARE
ITEM
ITEM
PART
No.
DESCRIPTION
1
A02315
Drain Tube
2
A06158
Drain Cock - Male
3
A06225
Drain Cock - Female
4
Al0110
Jockey
Arm
Assy.
5
A05351 Bush - Jockey
Arm
6
A02474
Bearing Bush
7 A08585
Jockey Pulley
8
A02520 Spacer
9
A07805
Belt Keeper
10 A07867
Spring - Jockey
Arm
11 A10067 Steering Shaft Assy.
12
A07675
Nylon
Bush
13
A05339
Spacer Tube - Steering Shaft
14
A01673
Knob
15
A10116 Cutterhead Engagement Lever Assy.
16 A10117
Engagement Rod Assy.
17 A05412
Swing
Axle
- Long
18 A10020 Swing
Axle
Assy
19
A05383 Rubber Buffer
20
A05231 Gearbox Pulley
21 A02051
Woodruff
Key
22
A05005
Engine Pulley
23 A05342 Drive Chain
23A
A05061
Link
24
A 10107
Rear
Axle
Assy.
25
A 10113 Disc Brake Assy
26
A05086
Woodruff
Key
27
A06235
Bearing Flange
28 A01396
Flangette Bearing
29 A02520
Spacer
30 A01585 Tyre
30A
A01687
Tube
30B A00493
Rear Wheel Assy. - Complete (Includes Items 30,
30A,
31,
32,40,42,52)
31
A05233
Wheel
Hub
- Male
32
A01599
Wheel
Hub
- Female
33
A03069
Plug Spanner
34
*
'1,6" x 1
v.."
Unc Hex
Bolt
35
*
v.."
x
v,"
Unc Sq. Hd. Setscrew
36
*
lti6" x %" Unc Sq. Hd. Setscrew
37
*
% " x
1%"
Unf
H.T. Hex Setscrew
38
*
J;. r t x
1%"
Unf
H.T. Hex Setscrew
39
*
'1,6" x
1"
Unc Cuphead
Bolt
40 *
v,o"
x %" Unc Hex Setscrew
41
*
¥IO" x %" Unc Sq. Hd. Setscrew
42 *
'1,0" Unc I-Wx
Nut
43
*
Ya
" Unc Hex
Nut
44 *
J/8 "
Unf
Nyloc
Nut
45
46
*
%" BSW
Thin
Nyloc
Nut
47
A02224
Circlip
48
A02289
Circlip
49
A03092
Ratchet Plate
50
A07763
Flat Washer - Special
51
A01025
Tension Washer
52
*
ltio" Internal Shake
proof
Washer
53
*
318
" x %" x 16G Shakeproof Washer
54
*
1/%
r r Internal Shakeproof Washer
55
*
%" x 1'/:," x 14G
Flat
Washer (as required)
56
57
A05071
Vee Belt
58
A05425
Washer - Special
59
A02591
Spring
60
A02476
Bearing
61
A08618
Circlip
62
A07212 Spacer
63 A07286
Washer - Special
64
*
'1,6" x
1"
Unf
H.T. Hex Setscrew
