Rover HD TAB 700 - Side Panels; Left Side Ports; Right Side Components; Top Side Connectors

3
6
7
8 9
3
4
1
2
5




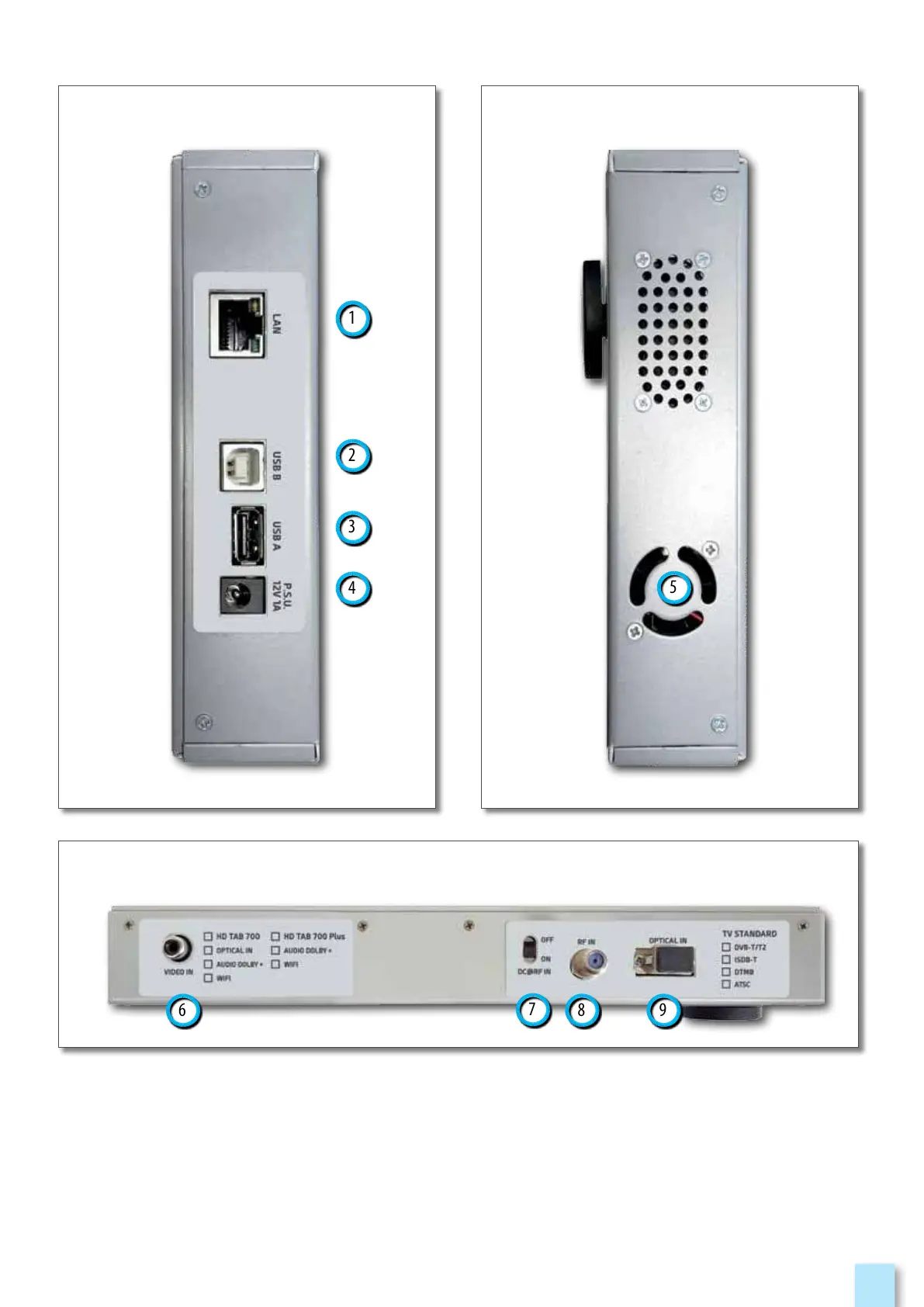

1. = LAN Eternet RJ45 (only for Plus version)
2. = USB B SW upgrades
3. = USB A memory stick
4. = Power Supply input (12 V DC - 2A)
5. = Fan
6. = Analog video IN (CVBS)
7. = Remote Power Supply switch
DC at RF IN ON/OFF
8. = IF/RF IN “F” 75 Ω
9. = OPTIC IN: SC connector
(only for Plus version)

