ENGINE K SERIES 1.8 VVC
Technical Academy
Page 10 of 28 01-34-RG-W-Ver:1
Camshaft Oil Seals
Front (Inlet)
With the camshaft drive belt and camshaft gears removed:
• Screw in gear retaining bolt to protect the threads in the camshaft.

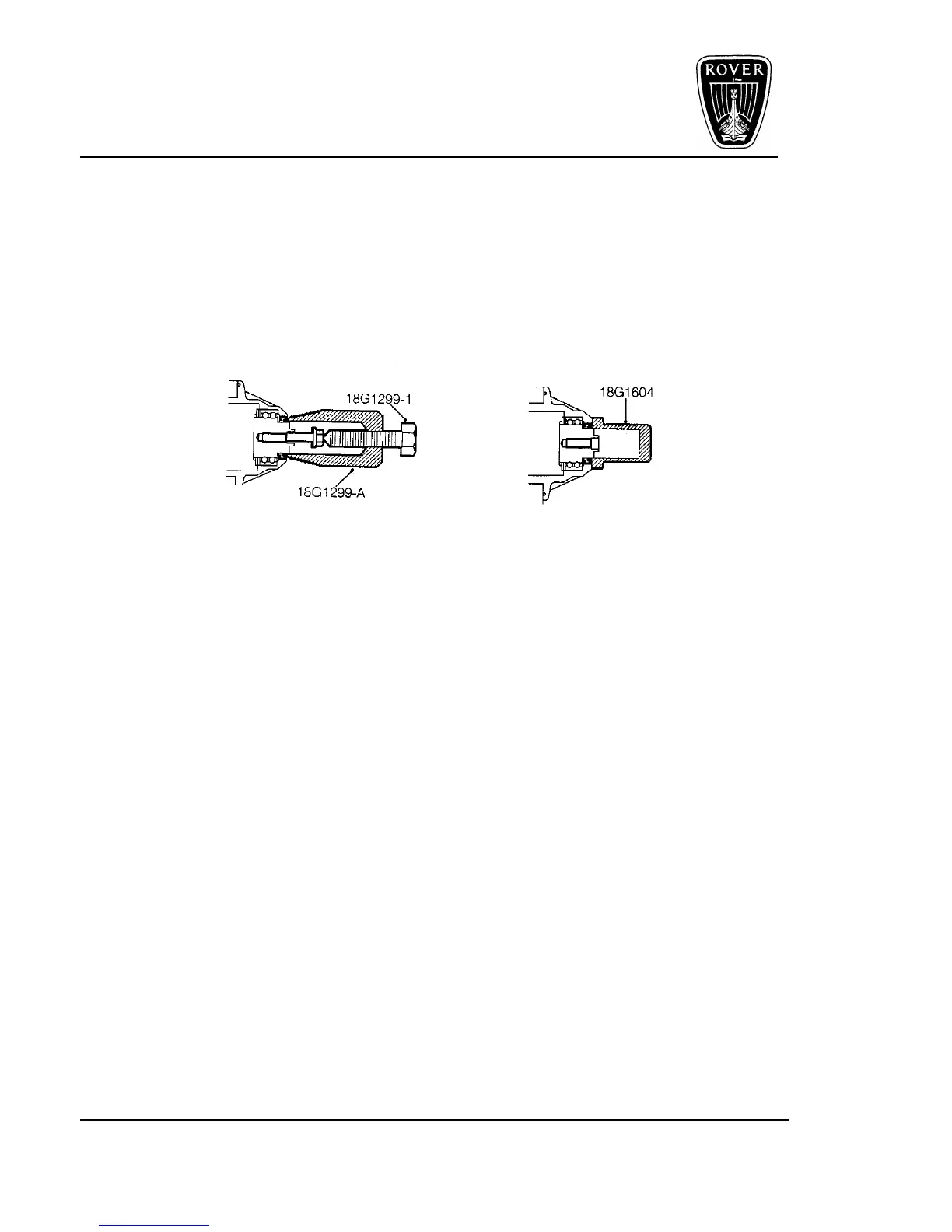

• To remove the oil seal. screw in special tool 18G 1299A into the oil seal, tightening the
centre bolt of the special tool and extract the seal as shown.
• Remove the retaining bolt.
Figure 8
Refit
Thoroughly clean the sealing areas of the cylinder head and camshaft ensuring all traces
of rubber are removed.
NOTE: DO-NOT scrape or lubricate the sealing areas
• Carefully position the new oil seal onto the camshaft.
• Drift in new oil seal using 18G 1604 as shown making sure the seal is flush with the
face of the housing.
• Refit timing belt and gears.
NOTE: The same procedure applies when replacing the rear inlet camshaft oil seal.
Exhaust (rear)
Remove
The same special tool, 18G 1299A is used to remove the exhaust camshaft oil seal
adopting the same procedure as the inlet.
Refit
Carry out the same cleaning process, and DO NOT scrape or lubricate the sealing areas.
• Position the new seal onto the camshaft.
• Carefully drift in the seal using 18G 1587.
• Refit timing belt and gears.
