ENGINE COMPARTMENT FUSE BOX
WARNING
Batteries emit explosive hydrogen gas;
ensure that sparks, flames and other
ignition sources (i.e. cigarattes) are kept
away from the engine compartment.
Fuses 23 to 44 inclusive, listed on the
following page, are located in the engine
compartment fuse box.

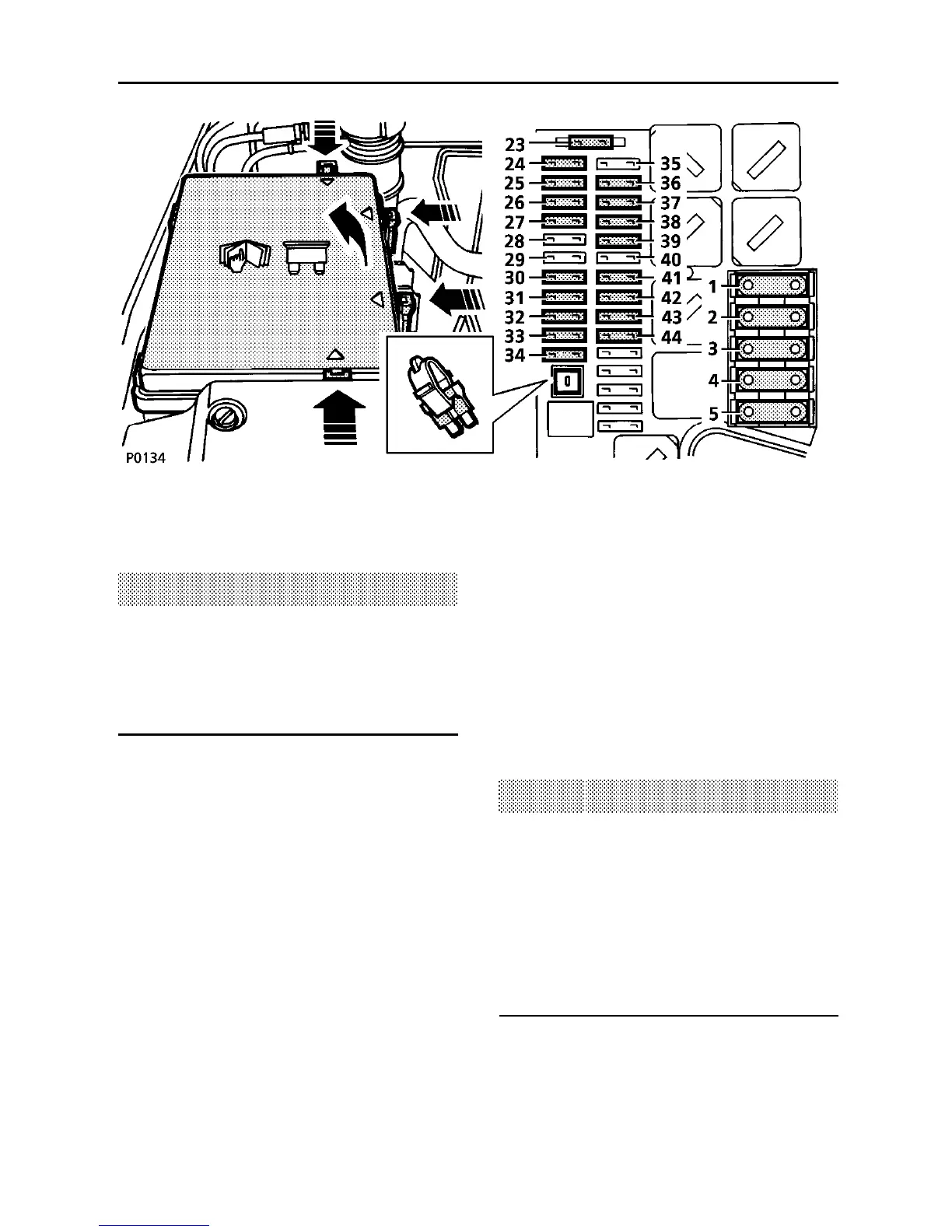

Press each of the four latches in the direction
of the arrows (moulded into the lid) and pivot
the lid upward to disengage the three side
location posts.
A label on the underside of the cover identifies
the fuses and their ratings. The following list
supports the information on the cover.
A fuse puller (red tweezers) is provided for
extracting the fuses. To remove a fuse, press
the fuse puller on to the head of a fuse and
pull.
Refit the cover by engaging the three side
posts in the slots in the fuse box. Close the
cover and then push the four side catches
away from the fuse box until they can be
heard to ’snap’ into position.
WARNING
Fit only replacement fuses of the same
rating and type. Always rectify the cause of
a failure before replacing a fuse. Seek
qualified assistance if necessary.
Never replace a blown fuse with a fuse of a
higher amperage rating - wiring damage or
fire may result.
