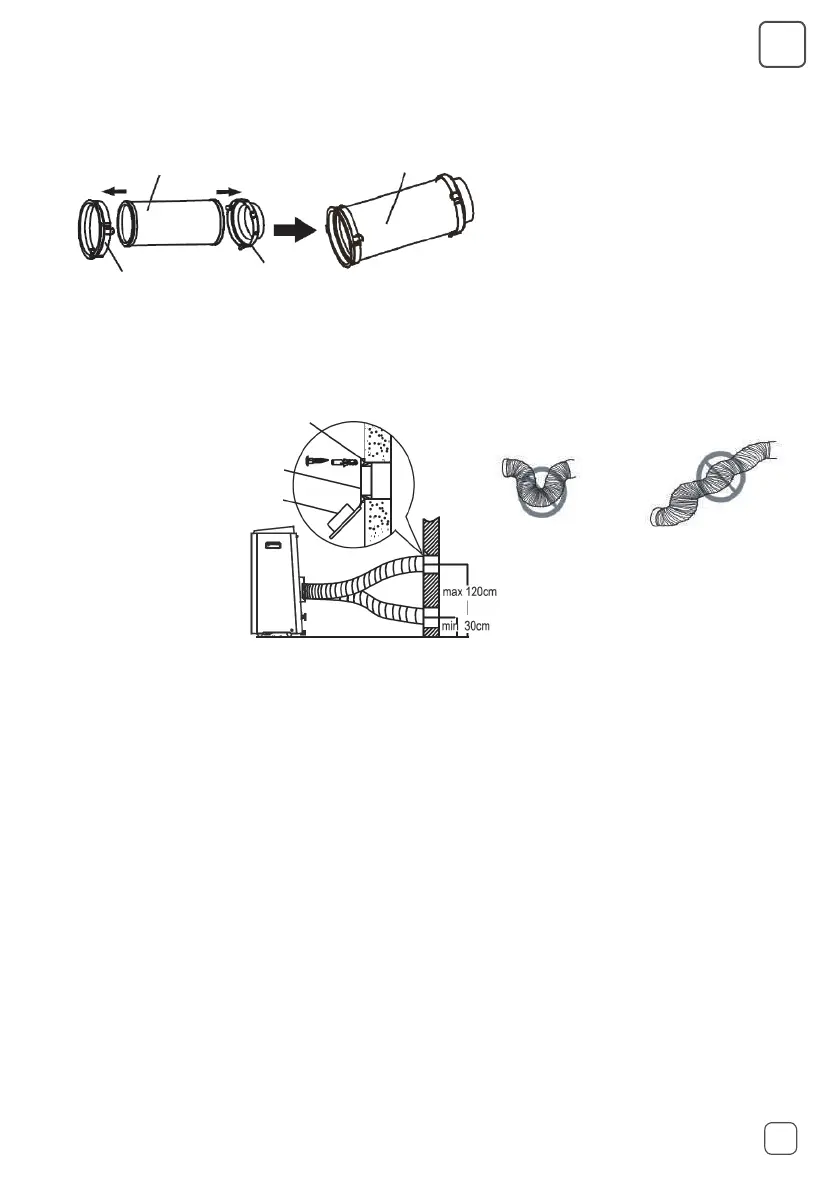

Wall Installation Kit
1. Install the unit adaptor and wall exhaust adaptor A on both sides of the exhaust hose.
Exhaust hose
Unit adaptor
2. Connect the exhaust hose assembly to the back of the appliance.
3. Cut a 125mm hole into the wall for the wall exhaust adaptor B.
4. Secure the wall exhaust adaptor B to the wall using the supplied anchors and screws.
5. Connect the exhaust hose assembly to the wall exhaust adaptor B.
Wall exhaust adaptor A
Exhaust hose assembly
Expansion anchor position
Wall exhaust adaptor B
Adaptor cap
NOTE: Do not bend the exhaust hose.
NOTE: Cover the hole in the
wall using the adaptor cap
when not in use.
10
