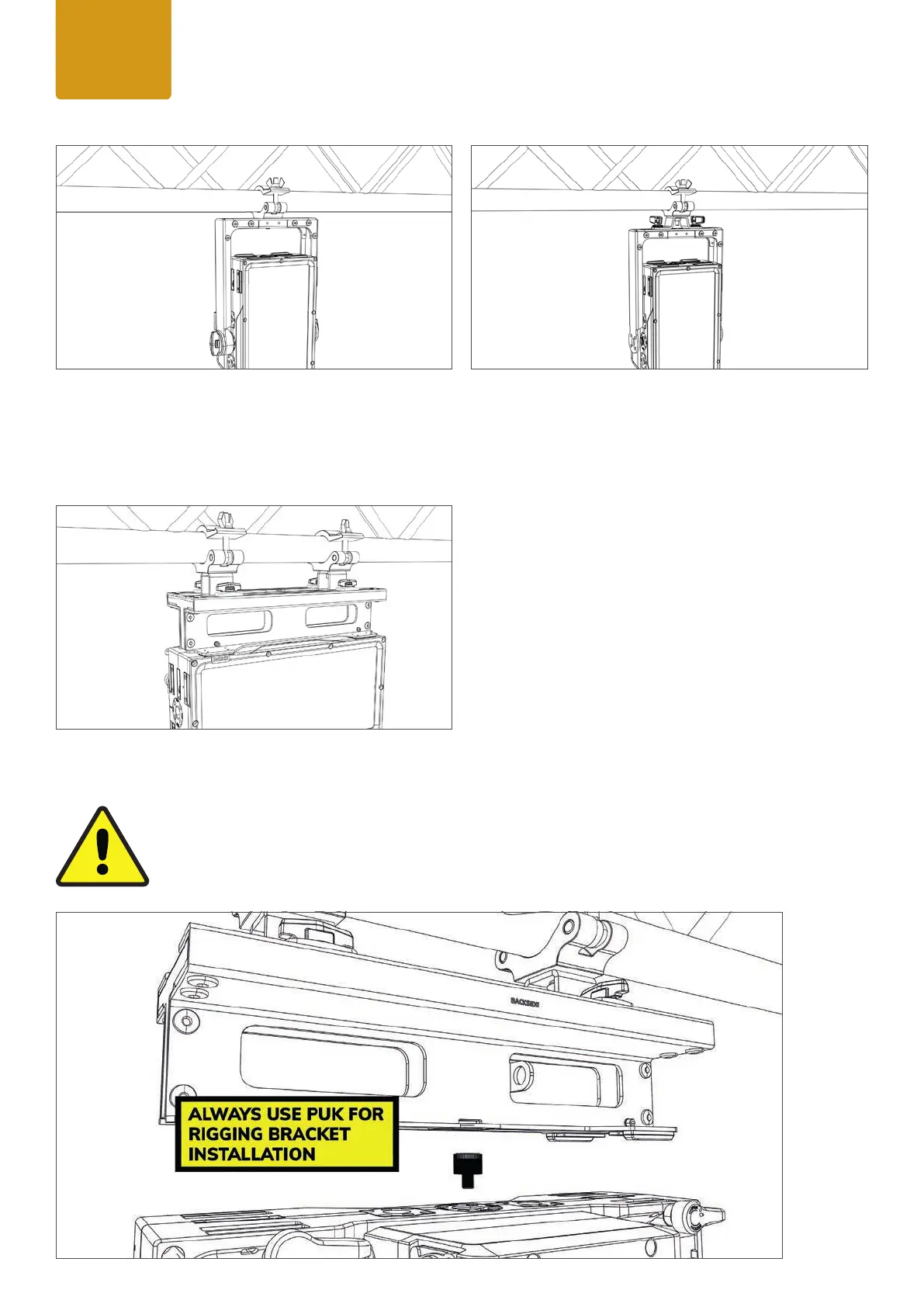

3. Using optional ROXX RIGGING BRACKET with 2x Mounting Clamps
Important Note:
Please be aware of using the centering PUK for safe RIGGING BRACKET installation to the
CLUSTER device.
User
Manual
Max. Tension Load: 72kg
Max. Torsion Load: 6.326 Nmm
e. YOKE 2.2 with 1x Mounting Clamp
Max. Tension Load: 88kg
Max. Torsion Load: 8.238Nmm
f. YOKE 2.2 with 1x Omega Bracket
Max. Tension Load: 66kg
Max. Torsion Load: 6.476Nmm
