4.2 Connections*

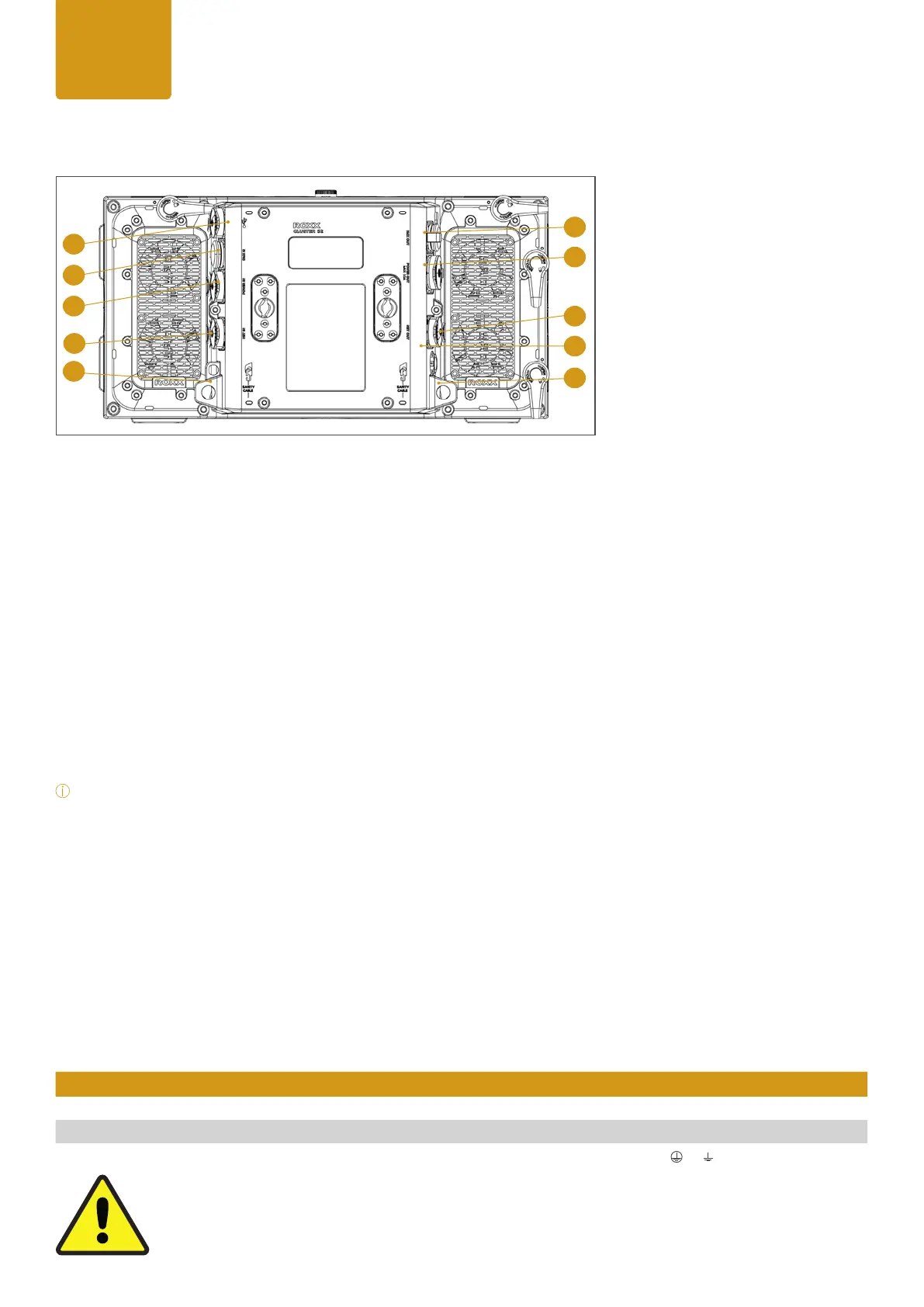

A: Mains In: IP65 Power input connector with rubber sealing cap.Connect using the provided power cable
(when not
in use, always close with rubber sealing cap).
B: Mains Out:
IP65 Power output connector with rubber
sealing cap. Provides power to additional xtures. Ensure that
the total power consumption of all daisy-chained devices connected do not exceed 8A (Ampere)! (when not in use,
always close with rubber sealing cap).
C: DMX IN: Male IP65 5-pin XLR connector (when not in use, always close with rubber sealing cap).
D: DMX OUT:
Female IP65 5-pin XLR connector (when not in use, always close with rubber sealing cap
).
E: GoreTex
F: Safety Eyelet
G: IP65 USB port for rmware updates
H: Ethernet IN, Art-Net /sACN
I: Ethernet OUT, Art-Net /sACN
*Note:
In order to provide protection from spraying water, in accordance with protection class IP65, special IP65-
rated XLR connectors must be used correctly with the DMX input and output sockets, or they must be closed
using the rubber sealing caps. When connected correctly, or when sealed correctly with the rubber sealing
caps, the POWER IN and POWER OUT sockets are protected from spraying water, as in accordance with IP65.
4.2.1. AC Power
The CLUSTER S2 operates on any 100–260 V, 50/60 Hz AC mains power supply with a maximum power consump-
tion of 1250W.
Connect the xture to AC power using the supplied cable or a similar one with Neutrik powerCON
TRUE1 NAC3FX-W
or a compatible type, to ensure the correct ingress protection (IP).
For temporary installations, the mains cable must be tted with a grounded connector intended for exterior use. The
xture must be grounded/earthed and be able to be isolated from AC power. The AC power supply must incorporate
a fuse or circuit breaker for fault protection.
Warning!
Read “Safety Informations” starting on page 3 before connecting the xtures to AC mains power!
Do not connect the xture to an electrical dimmer system, as doing so may cause damage that is not
covered by the product warranty!
A
D
C
G
F
F
E
B
Wire Color (EU models) Wire Color (US models) Conductor Symbol
Brown Black Live L
Blue White Neutral N
Yellow / Green Green Ground (earth)
or
H
I
