7. MAKE ELECTRICAL
Remember to disconnect the power.
Follow the steps below to connect the fan to your
household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connectors with
electrical tape. Make sure there are no loose
strands or connections.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
CONNECTIONS
6

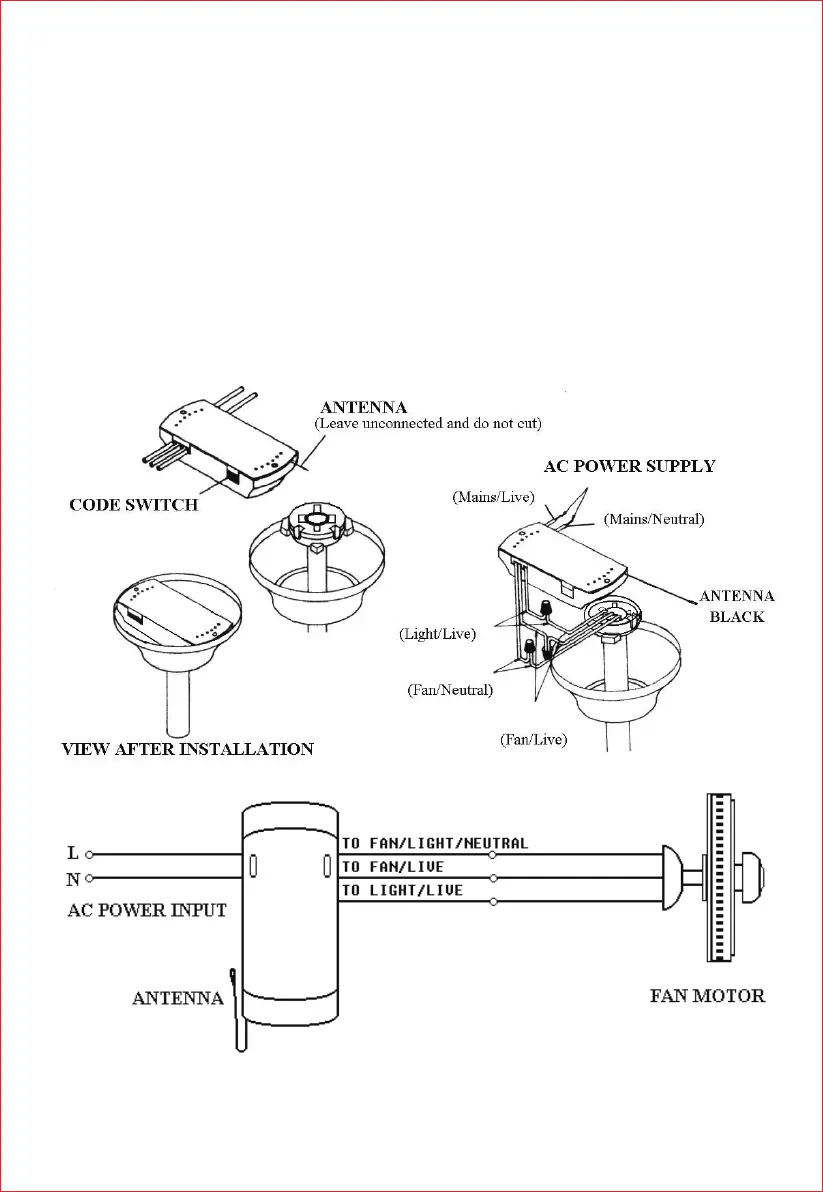

Figure 9
Figure 10
(WHITE)
(BLACK)
(BLUE)
(WHITE)
(BLACK)
To Next Page
