RP LIGHTING 1076 - Finishing the Installation; Install Led Light Kit

To Next Page

To Previous Page

Canopy

Coupling cover

Screws

Outlet box

Hanger

bracket

Receiver

Reverse switch

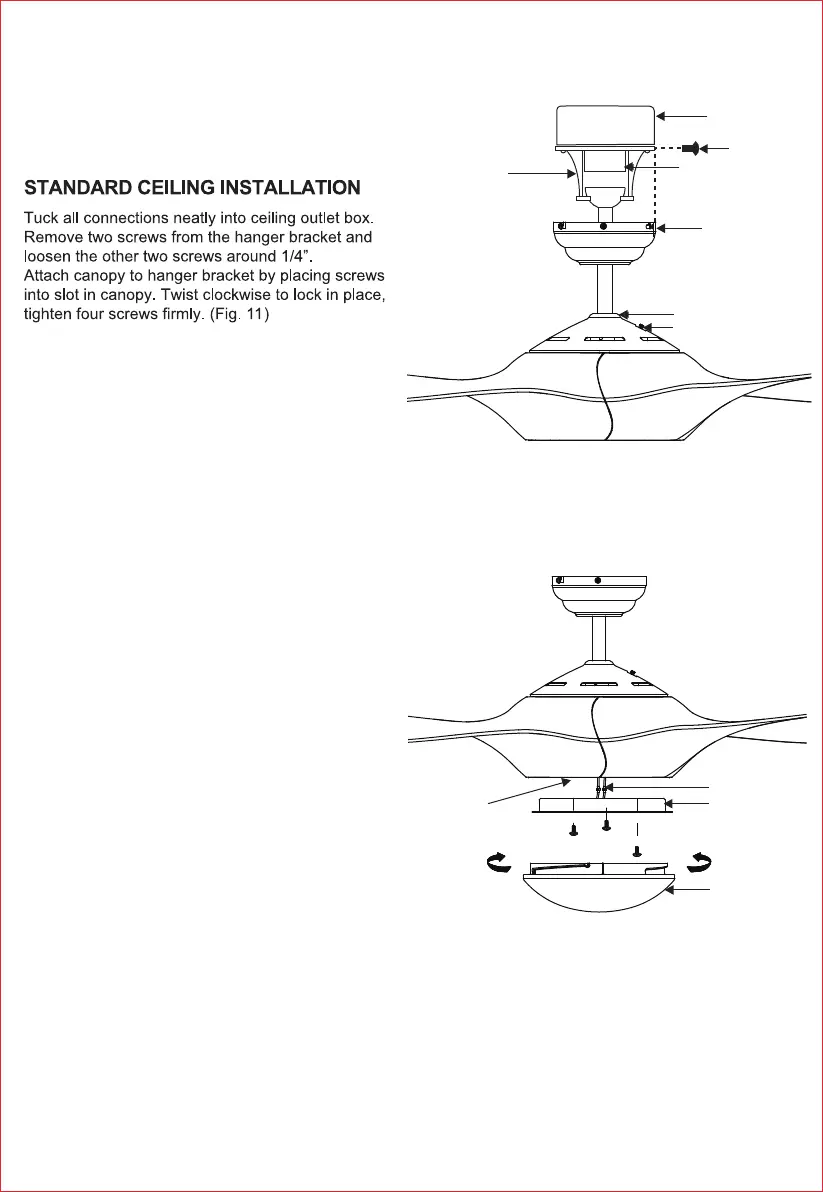

Figure 11

9. INSTALL THE LIGHT KIT

Step 1. Connect the male plug on switch housing to

female plug in LED light kit.

Step 2. Remove the 3 screws on fitter plate and

fix the LED light kit on using these screws.

Step 3. Twist the glass onto the light plate till

tighten. (Fig.12)

Light plate

Glass

Switch housing

Connector

Figure 12

8. FINISHING THE INSTALLATION
