5
BASE MOUNT
BASE MOUNT ASSEMBLY

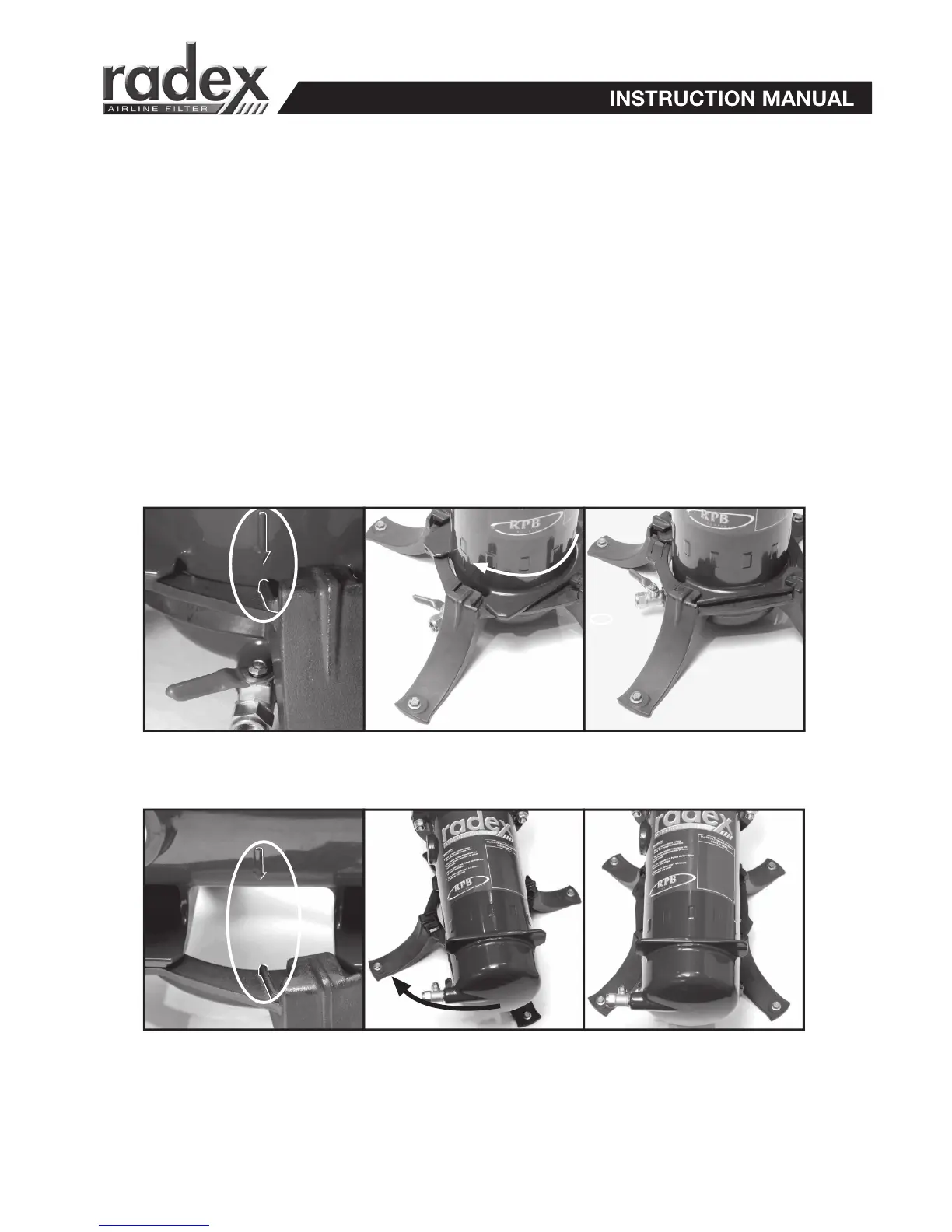

The base mount can be attached in two positions, wall mount or floor mount. To connect the base
mount align the arrows on the base mount with the arrows on the filter, Fig 1.1 for floor mount, Fig
1.2 for wall mount. NOTE: The base mount will only fit in two positions, the arrows must align
before locking.
Turn the filter in a clockwise direction and lock into position. You will hear a click when the base
is in the final position.
Fig 1.1 Floor mount
locked
Fig 1.2 Wall mount
locked
