6
04-900 ASSEMBLY
PRESSURE REGULATOR

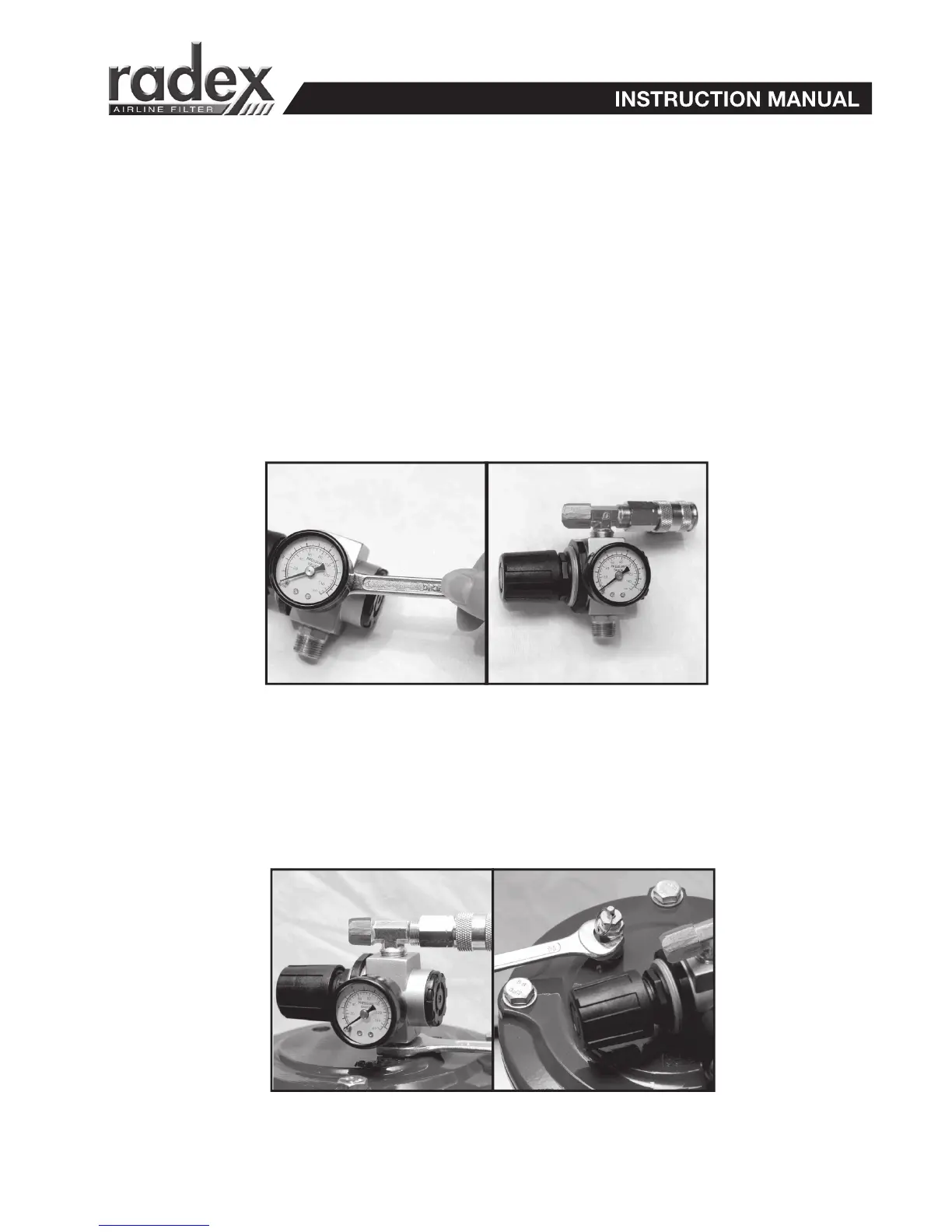

To assemble the pressure regulator, thread the pressure gauge into the body (refer Fig 2.1) and
tighten. Connect the quick disconnect coupler and brass cap to the 3/8” tee and thread the 3/8”
tee into the top of the pressure regulator and tighten (refer Fig 2.2). It is recommended that the
regulator assembly is tightened before mounting onto the Radex Airline Filter. Use thread sealant
on all fittings.
Fit the completed regulator assembly onto the top of the Radex Airline Filter lid (refer Fig 2.3).
Once the regulator assembly has been tightened into position you can fit the pressure relief valve
and tighten (refer Fig 2.4)
! WARNING ! The pressure relief valve must be connected to protect the Radex Airline Filter from
over pressurizing.
Fig 2.1 Fig 2.2
Fig 2.3 Fig 2.4
