7
ASSEMBLY
The Radex Airline Filter has a 1” NPT inlet. It is advised to connect a ball valve close to the inlet
so the unit can be shut off for servicing. Connect inlet fittings and tighten. Once the Radex Airline
Filter is completely assembled and connected to compressed air open supply line and check fitting
for any air leaks, tighten accordingly.
!WARNING! Do not over tighten fittings, as over tightening could crack the Filter Casting.
INLET CONNECTION
FITTING OPTIONAL MICRO MIST FILTER

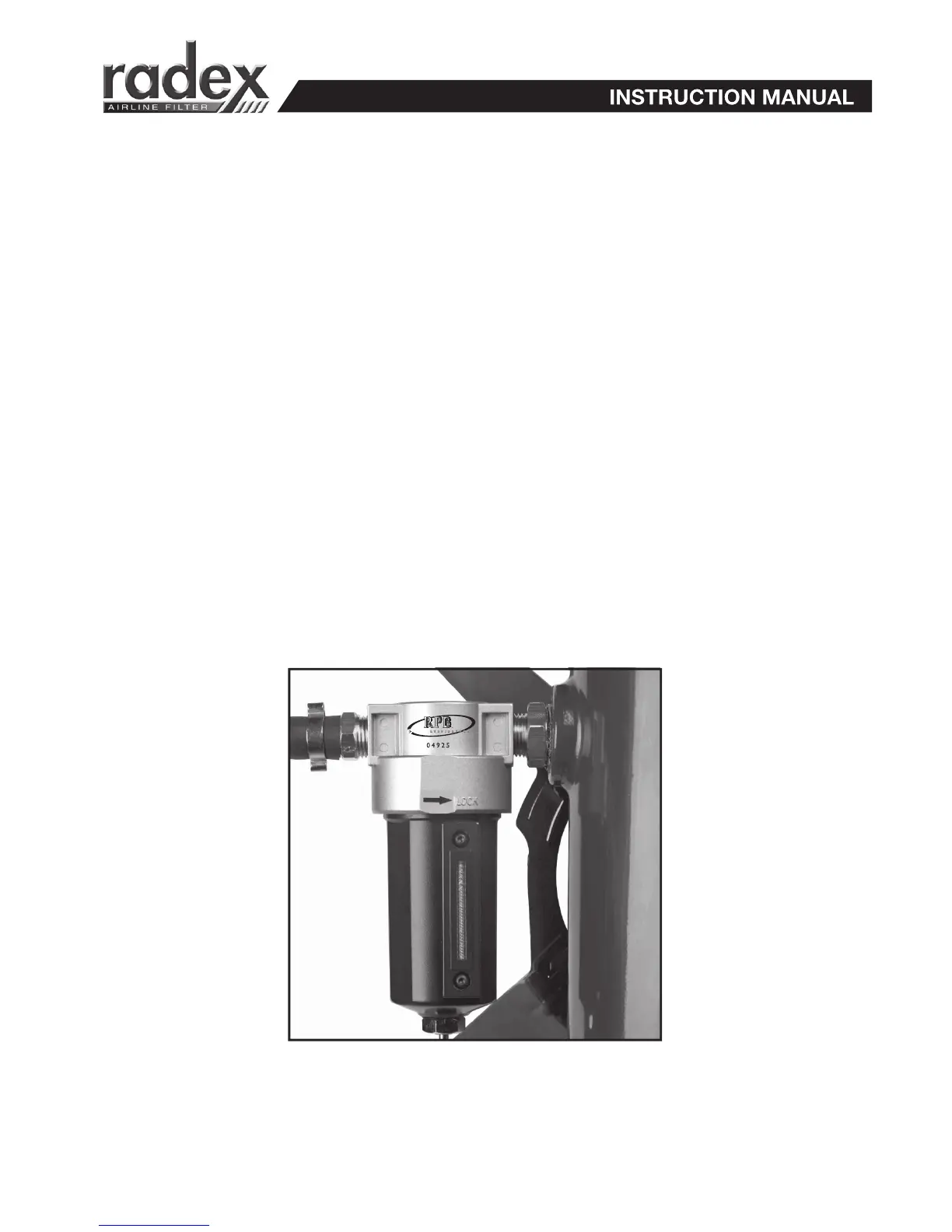

To fit optional micro mist filter 04-925, first thread the reducing nipple 04-926 into the micro mist
filter then thread into the filter inlet and tighten, ensure the micro mist filter is positioned straight so
it drains moisture from the collection bowl. (fig. 31)
FIG 3.1
