8
04-906 ASSEMBLY
SIX OUTLET MANIFOLD

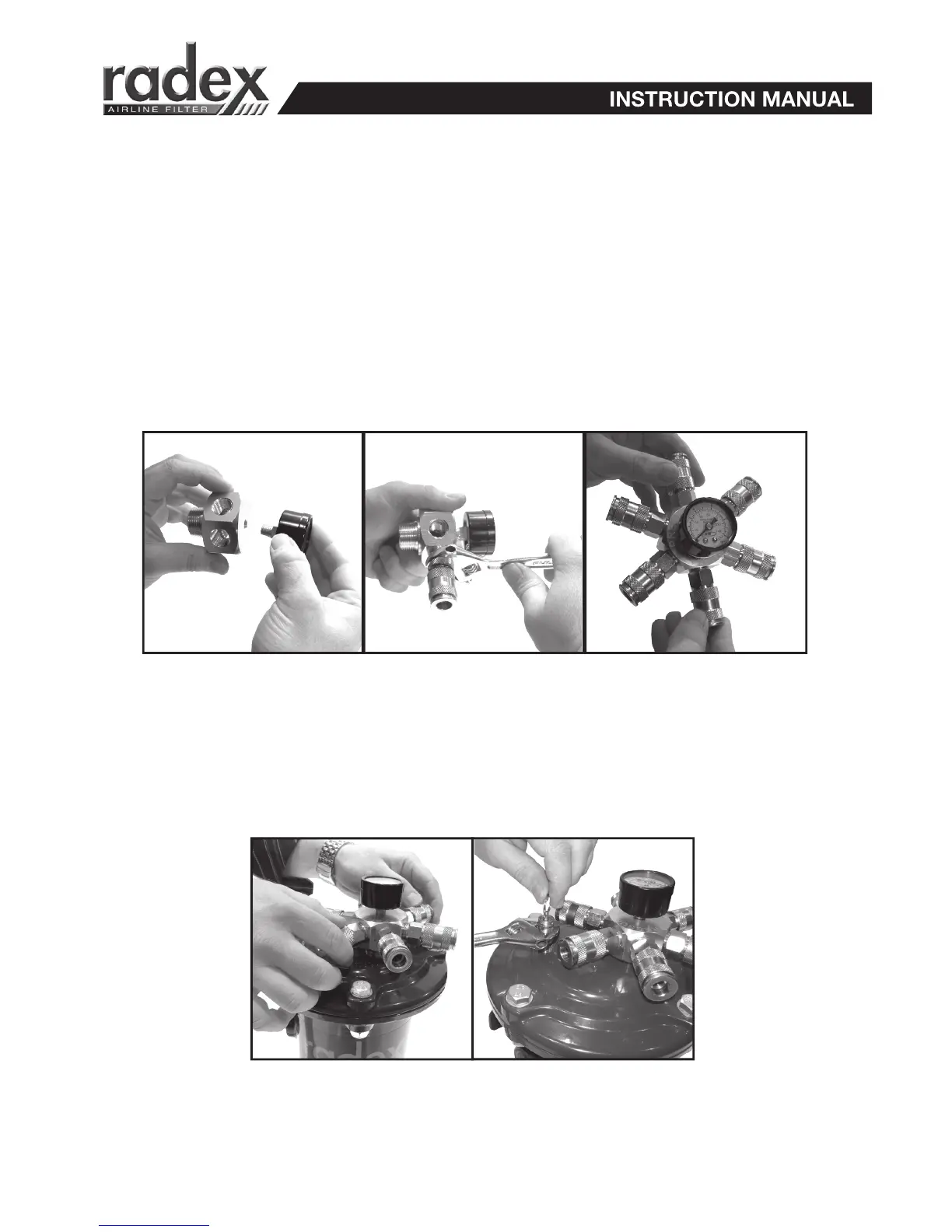

To assemble the Six Outlet Manifold, firstly thread the 04-915 Pressure Gauge into the 04-965 6
Outlet Manifold and tighten (fig 4.1)
Thread all six 04-065 Couplers into the 04-065 Manifold and tighten (fig 4.2)
Thread the completed 04-964 Six Outlet Manifold in to filter lid and tighten (fig 4.3)
Thread the 04-916 Pressure Relief Valve into the lid and tighten.
!WARNING! The pressure relief valve must be connected to protect the Radex Airline Filter from
over pressurizing.
Fig 4.1 Fig 4.2 Fig 4.3
Fig 4.4 Fig 4.5
