04-906 ASSEMBLY
SUPER HIGH FLOW REGULATOR ASSEMBLY
Thread the 04-963 Pressure Gauge and 04-966 1” NPT Connector into the 04-962 Super High
Flow Regulator and tighten. (fig 4.6)
Now thread the completed Regulator into the INPUT port on the body of the Radex Filter Unit
and tighten.
Check ALL fittings and connections are tight.
YOUR FILTER IS NOW READY FOR USE.
Note:
If the pressure gauge on the Super High Flow Regulator and the pressure gauge on the
Manifold are reading more than 10psi apart, your cartridge is blocked and needs replacing.
Refer to your respirator instruction manual for pressure ranges for your respirators, increase the
pressure according to the number of operators.

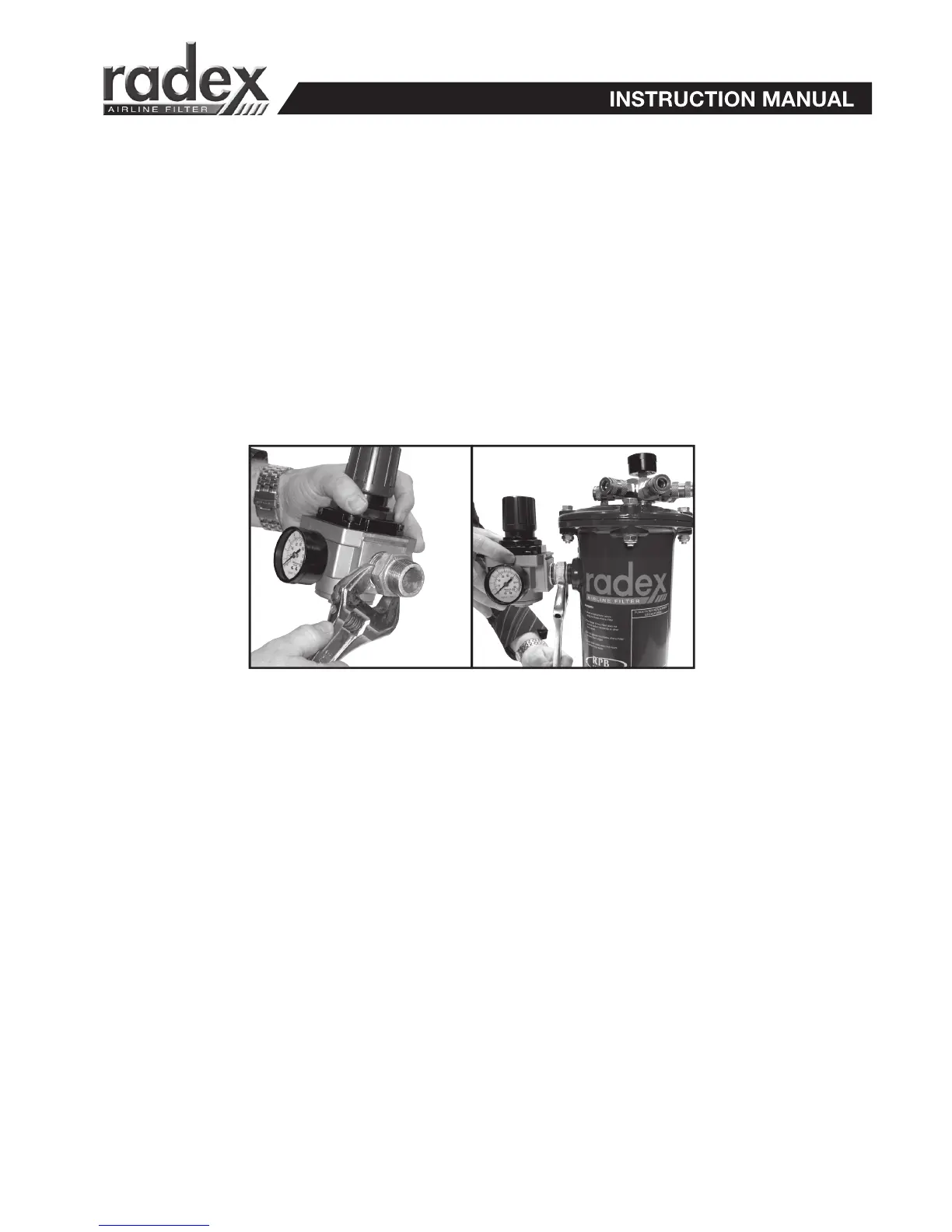

Fig 4.6 Fig 4.7
