POWER SUPPLY REQUIREMENT:
The power input standard is: single phase AC220V 50HZ/60HZ.
Input power supply voltage fluctuation range: <10%.
Input power grid harmonic content: <20%.
Input supply current: <20A.
Input power cable diameter: >2.5MM2.
Equipment wiring diagram:
There are two parts of this equipment that need to be wired by the user. The wiring is as follows:

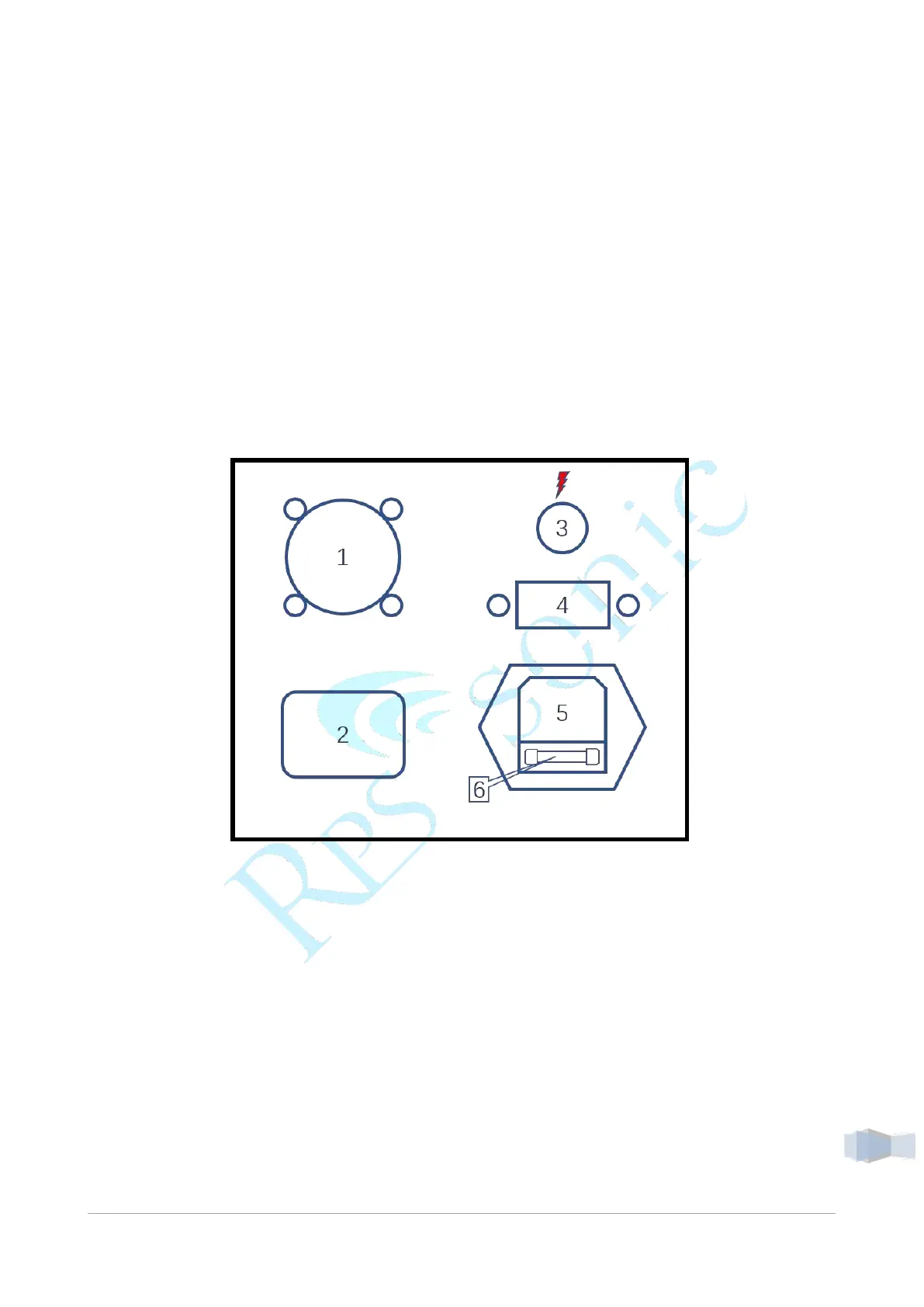

Diagram one：
1, the fan.
2. Power switch.
3. Transducer interface (The transducer interface uses a single-core high-voltage RF interface, the
center line is the positive end of the transducer, and the shield is the negative end of the transducer). (It
is strictly forbidden to reverse!)
4, DB9 female interface, this interface uses the conventional DB9 core wire connection, the adapter
board is attached to the random device, and the adapter board connection method is shown in the wiring
diagram 2.
5, power socket (character type interface).
3
6, fuse holder (this device uses 15A, 250V fuse).
