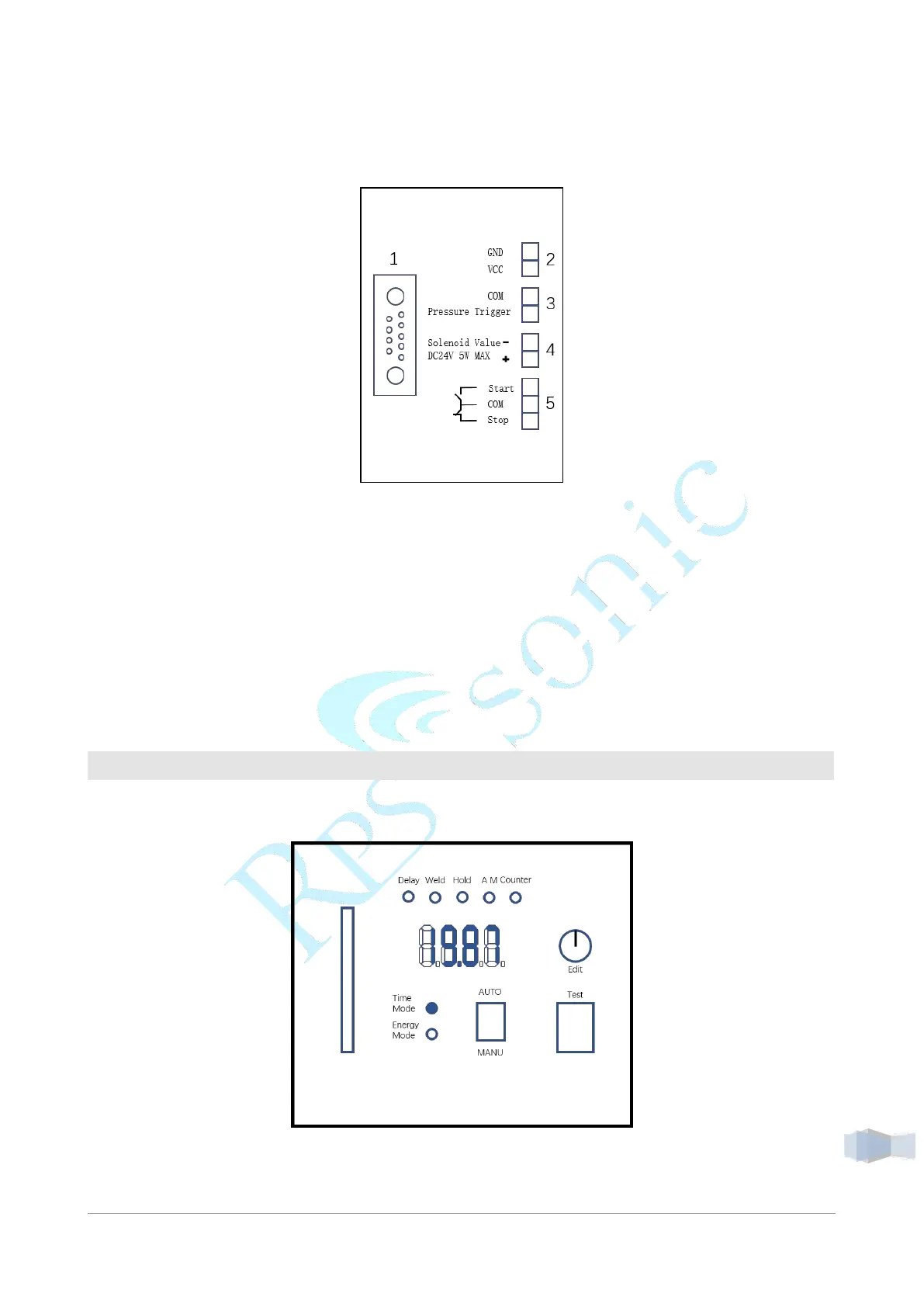

Diagram two
1, DB9 female seat, this port is connected to the base of the power supply sound through the DB9 core
wire.
2, 24V power supply terminal, this port provides a constant voltage of 24V, the maximum current of
100Ma.
3. This port is a pressure trigger port. This port is valid when the device works in pressure trigger mode.
4, Solenoid valve interface, can be connected to the voltage 24V, the maximum power of 5W solenoid
valve.
5, Automatic operation start and emergency stop wiring port.
Operating instructions:
Initial interface
4
The digital tube displays the scanned frequency. The upper five LEDs are off, and the below two
LEDs indicate the current time mode or energy mode. The ship type switch realizes automatic operation
