RS PRO RS-660 - Specifications; Symbols and Annunciators

2 3

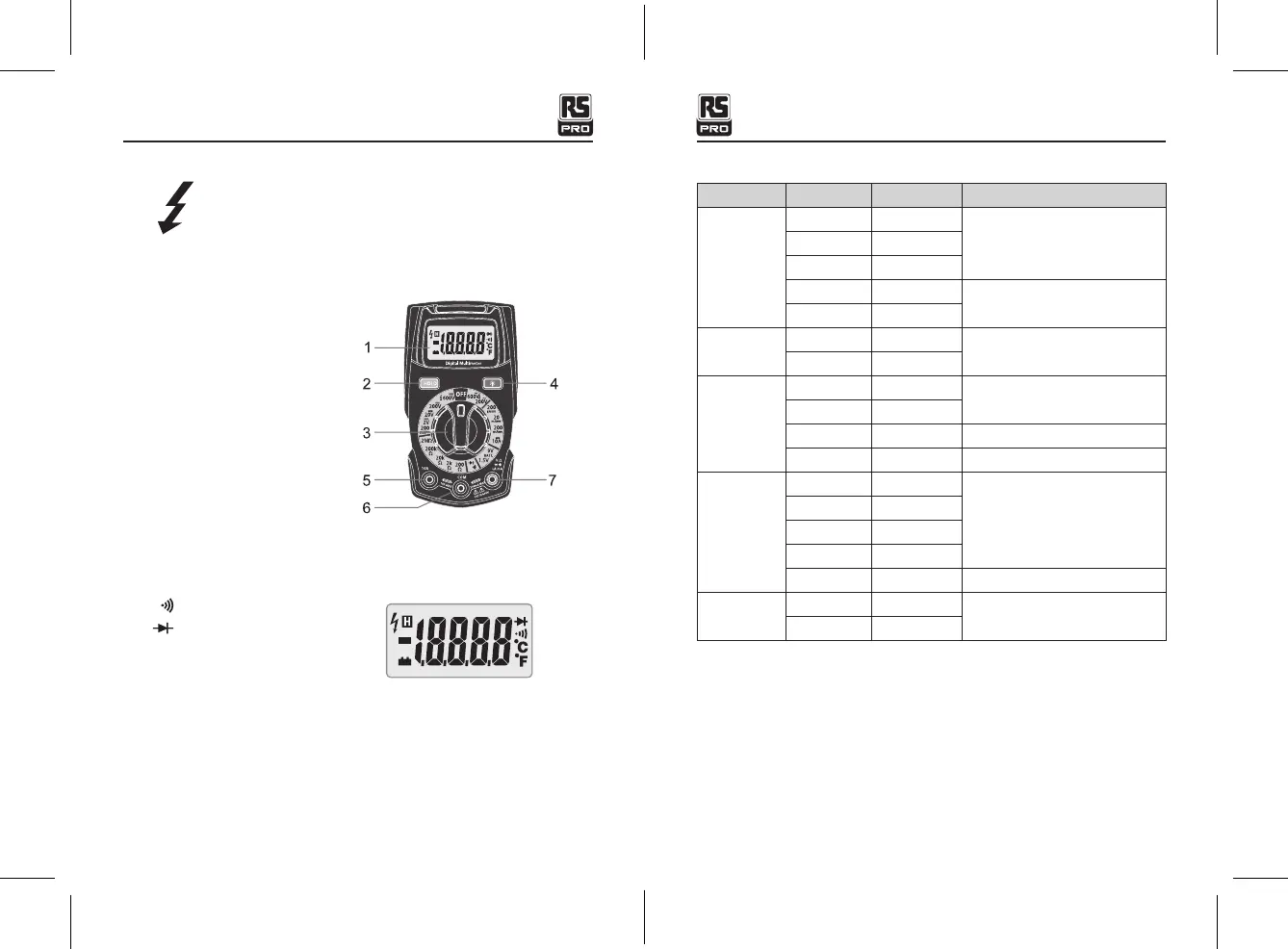

3. Controls and jacks
1. LCD Display
2. Data Hold Button
3. Function Switch
4. Backlight Button
5. 10 A Jack
6. COM Jack
7. Positive Jack
4. Symbols and Annunciators
Continuity
Diode test
μ
μ Micro(amps)
M
M Milli(volts, amps)
K
K Kilo(ohms)
Ω
Ω O hms
VDC
VDC Volts direct current
VAC
VAC Volts alternating current
ADC
ADC Amps direct current
BAT
BAT Battery test
This symbol adjacent to one or more terminals identifies them as
being associated with ranges that may, in normal use, be subjected
to particularly hazardous voltages. For maximum safety, the meter
and its test leads should not be handled when these terminals are
energized.
Note:
Tilt stand, fuse and battery
compartment are on rear of unit.
5. Specications
Function Range Resolution Accuracy
DC Voltage
(V DC)
200 mV 0.1 mV
±(0.5%reading + 3digits)2000 mV 1m V
20 V 0.01 V
200 V 0.1 V
±(0.8%reading + 3digits)
600 V 1 V
AC Voltage
(V AC)
200 V 0.1 V
±(1.2%reading + 10digits 50/60 Hz)
600 V 1 V
DC Current
(A DC)
200 μA 0.1 μA
±(1.0%reading + 5digits)
20 mA 10 μA
200 mA 100 μA ±(1.2%reading + 5digits)
10 A 10 mA ±(3.0%reading + 5digits)
Resistance
200 Ω 0.1 Ω
±(1.0%reading + 5digits)
2 kΩ 1Ω
20 kΩ 0.01 kΩ
200 kΩ 0.1 kΩ
2 MΩ 1kΩ ±(1.5%reading + 5digits)
Battery Test
9 V 10 mV
±(1.0%reading + 2digits)
1.5 V 10 mV
NOTE:
Accuracy specifications consist of two elements:
• (% reading) – This is the accuracy of the measurement circuit.
• (+ digits) – This is the accuracy of the analog to digital converter.
NOTE:
Accuracy is stated at 65° F to 83° F (18°C to 28°C) and less than 75% RH.
