It’s Under Control
®
CHAPTER 3 | INSTALLATION
The RK3-V is designed for ush-mount installations in walls or cabinets. It
requires an available mounting depth of 2.5 inches (63mm) from the front
surface of the wall. There are numerous options for mounting and wiring
the RK3-V.
Note: Make sure to use the included cardboard cut-out template to create
the correct size opening in the wall.
MOUNTING HEIGHT

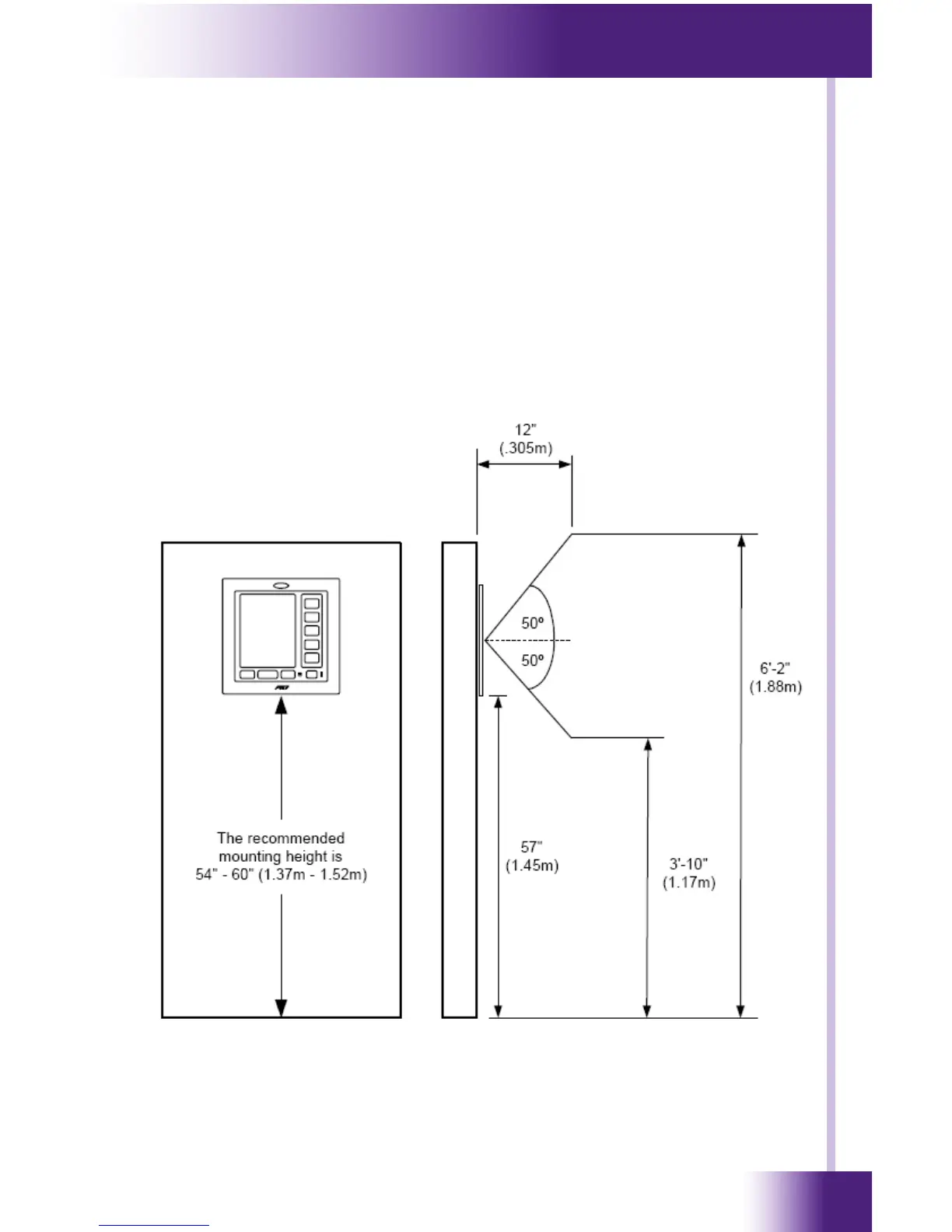

The recommended mounting height for the RK3-V is between 54” (1.37m)
and 60” (1.52m) from the bottom of the faceplate.
RK3-V side view: Viewing angle at 57”
