CHAPTER 3 | INSTALLATION AND OPERATION
CONNECTION OPTIONS

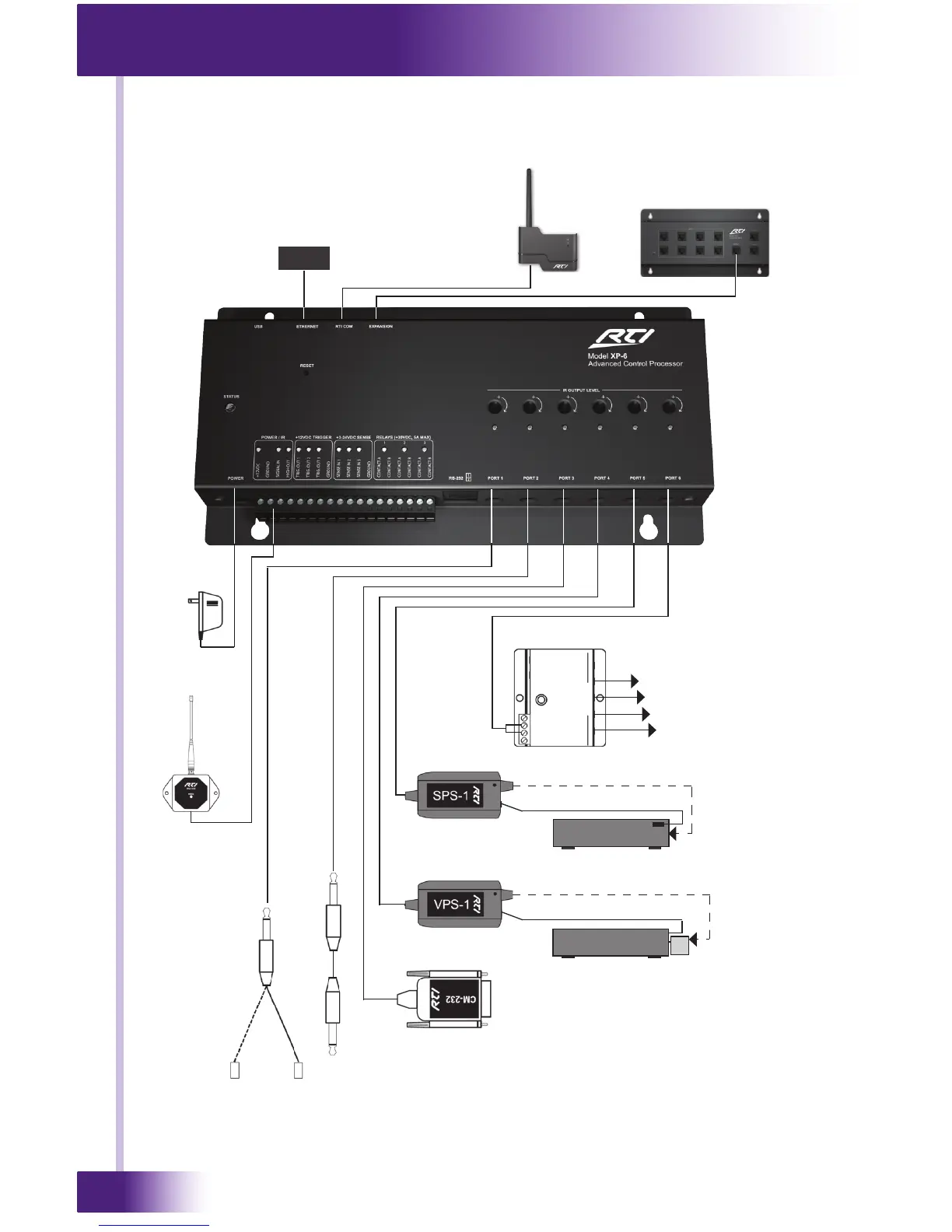

The following diagram illustrates some
of the XP-6 connection options.
Each IR output can
drive up to four
emitters directly.
More than four
emitters require
an amplied
connecting block.
Video
Direct IR
Single or
Dual Emitters.
IR Emitter
Video equipment
with Composite
output.
CM-232 Communication Module
Optional accessories shown
are sold separately.
Voltage
IR Emitter
Source
equipment
with switched
outlet.
Power supply
To Source Equipment,
Surround Processors,
Lighting Systems, etc.
Connecting Block
Power
Supply
RF or IR
Receivers
LAN
ZigBee
®
Module
(ZM-24)
RTI Connecting
Block (CB-8)
