MCE-325 Programmable User Station Description & Specifications 9
Bosch Security Systems, Inc.
Technical Manual
F.01U.193.228
Rev. 13
Connections, Inputs and Outputs
Front Panel
DYNamic MIC HEADSET: This connector accepts a stereo-earphone (5-pin connector), dynamic-mic headset (with or
without a mic on/off switch), or a mono-earphone, dynamic mic headset (4-pin
CARBon MIC HEADSET: This connector accepts a standard 3-conductor, ¼-inch phone plug. The necessary
phantom power is provided to power a carbon microphone or its electronic equivalent.
Panel Microphone Jack
The MCE-325 may be optionally fitted with a gooseneck panel microphone by removing the blanking plug located in the
upper-right corner of the front panel. The panel microphone jack accepts specially made gooseneck microphones (MCP-90
series), which are available from RTS.

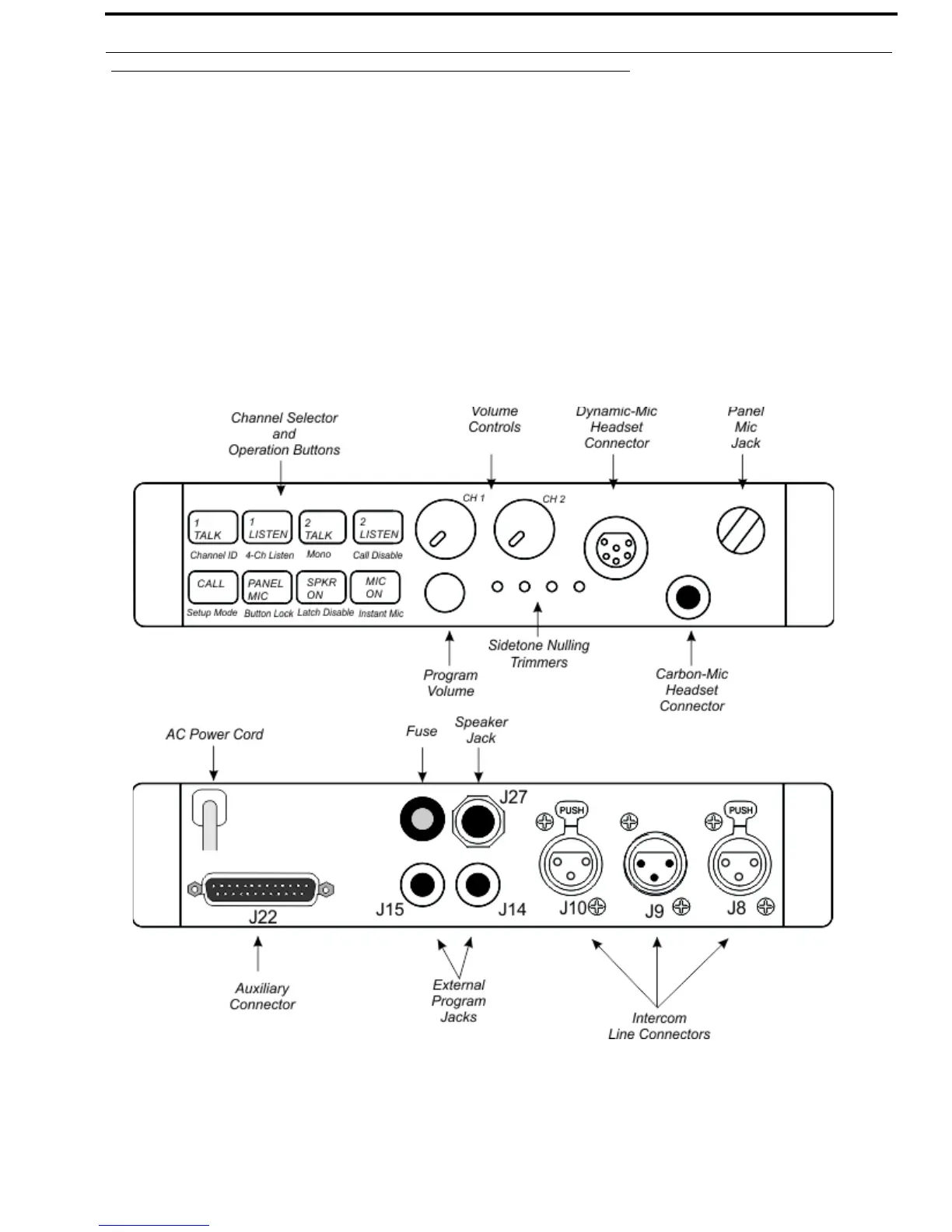

FIGURE 1. MCE-325 front and rear panel features
