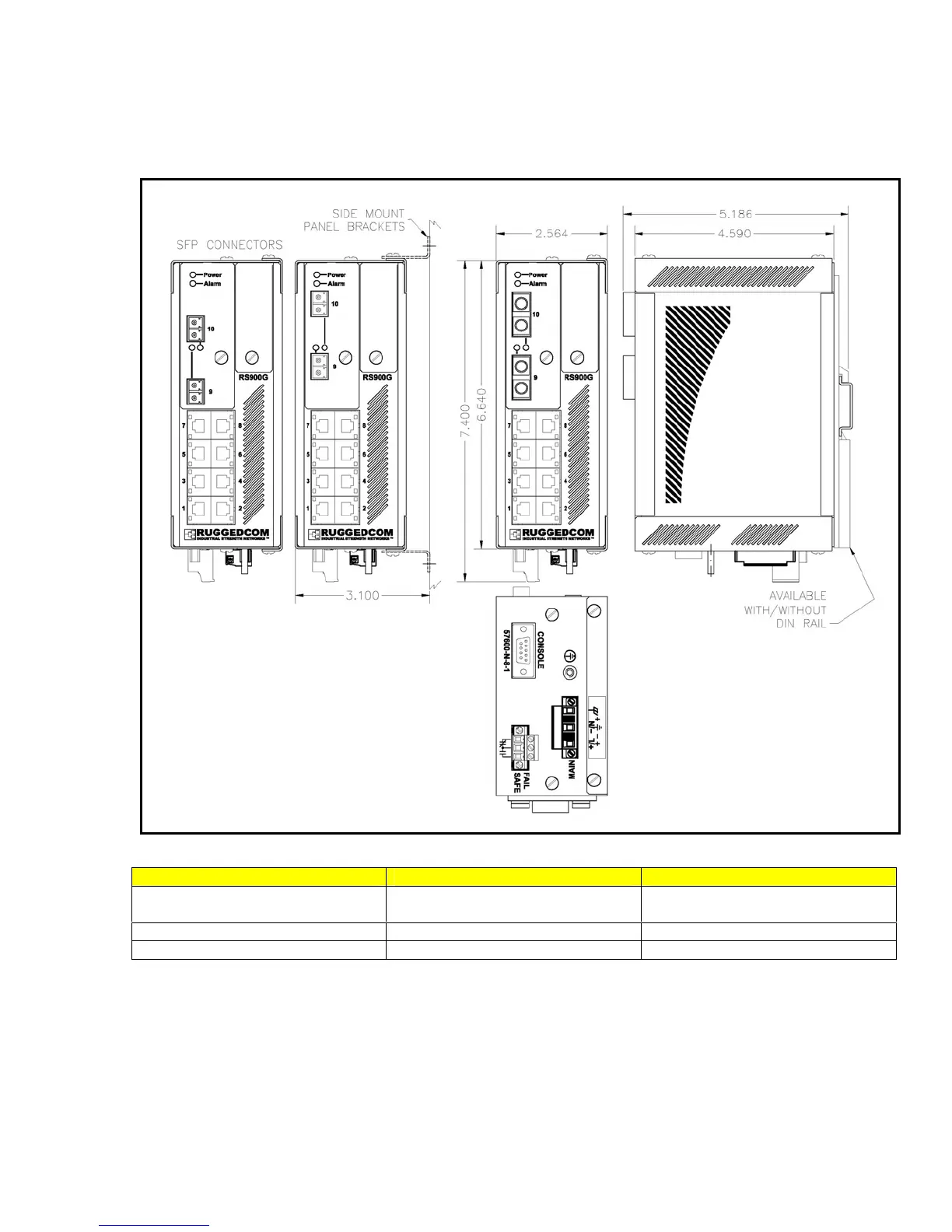

Physical Dimensions
Parameter
Value
Comments
Dimensions
7,4 x 2,6 x 5,0 inches
(187,96) x (66,04) x (127,0) mm
(Length x Width x Depth)
Weight
2.7 lb (1.2 Kg)
Enclosure
20 AWG Galvanized Steel
17
2010 RuggedCom Inc.
All rights reserved
Rev105
