Ruijie Networks RG-WS6008 Series User Manual

4 Configuration Guide
4.1 Setting up Configuration Environment
When you use the wireless controller for the very first time, you will need to configure it through a console port as follows:
 As shown in the following figure, connect the serial port of a character terminal or microcomputer to the console port
through an RS232 cable.
 Set the communication parameters of the terminal. For a microcomputer, you will need to run a terminal emulation
program like Windows operating system’s Hyperterm. Take Hyperterm for example.
1. Run Hyperterm and create a connection.
2. Select the serial port to be connected with the console port of the wireless controller, as shown in figure 4-2.
3. Set communication parameters as follows: baud rate to 9600, data bit to 8, stop bit to 1, parity to No, flow control to
No, as shown in figure 4-3.
4. Go to File->Property->Settings and set terminal emulation type to VT100.

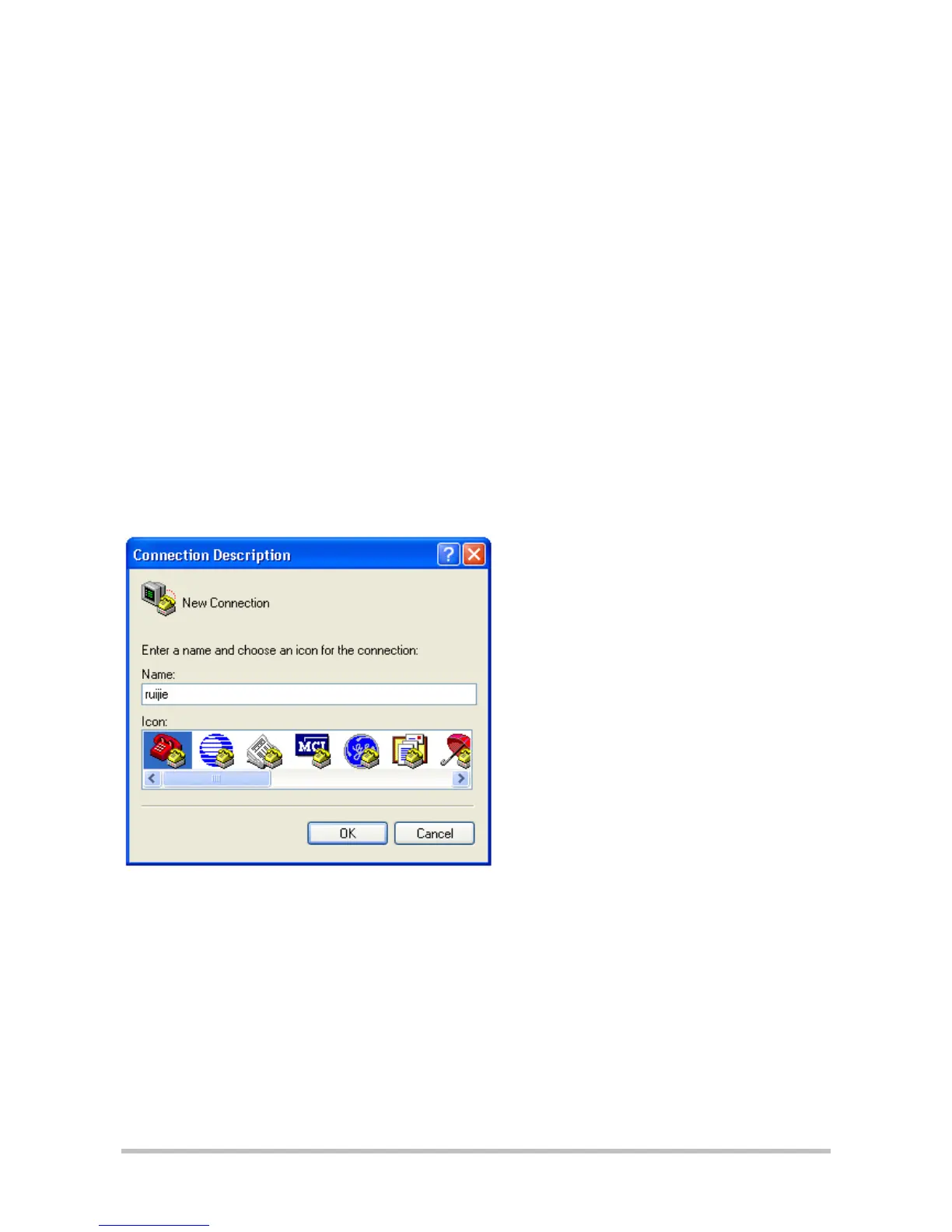

Figure 4-1 Creating Connection
Figure 4-2 Selecting Serial Port to be Connected with Console Port.
