Cookbook Configuration
59
Prerequisites

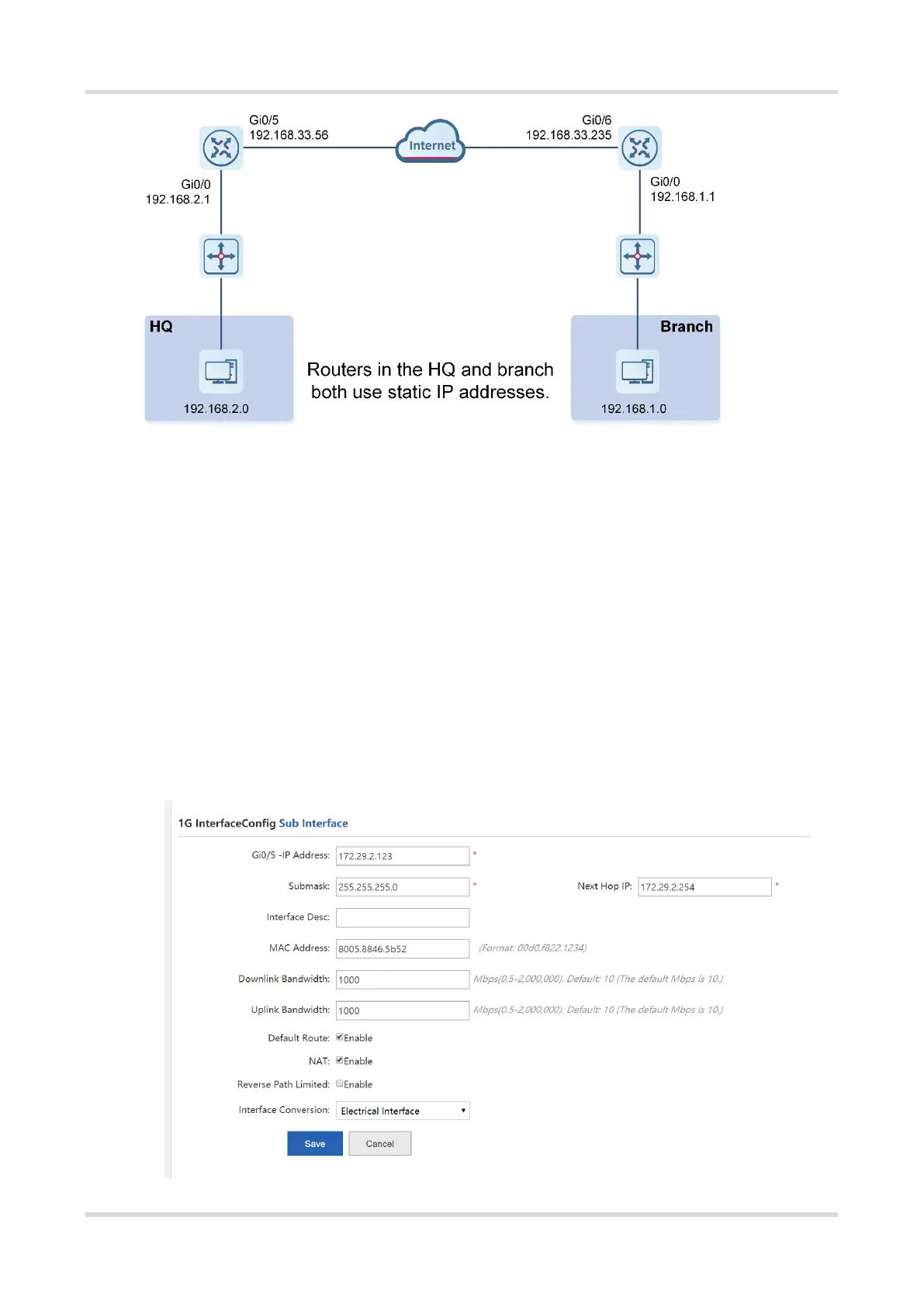

Configure router A in the HQ as the IPsec server.
Configure router B in the branch as the IPsec client.
Keep consistent parameter settings at both ends:
○ Authentication mode: pre-shared key, with the key set to ruijie
○ IKE algorithm: 3DES-MD5, DH2
○ IPsec negotiation scheme: ESP (3DES-MD5)
Procedure
(1) Configure router B in the branch.
Complete wizard-based setup to meet basic Internet access requirements of users in the HQ and branch.
If the users can access the Internet, check whether the next-hop address is configured for the WAN interface.
To Next Page
