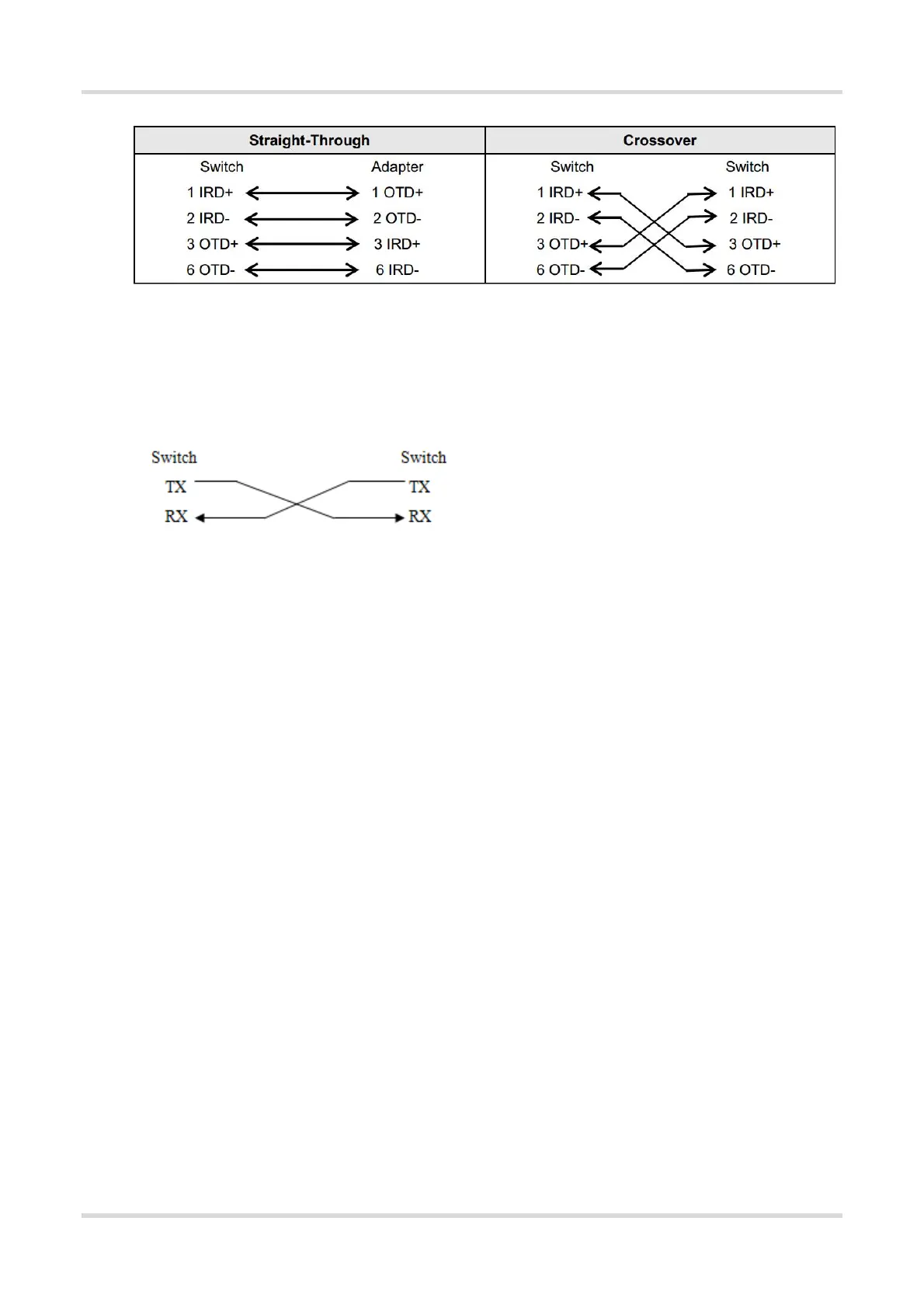

Figure 4-3 100BASE-TX/10BASE-T Connection
Fiber Connection
You can choose to use single mode or multimode fibers according to the transceiver module types. Figure 4-4
shows connection of fiber cables.
Figure 4-4 Fiber Connection
