MODEL 51240B/53540B/53640B/61240B/63540B/63640B
20
Mode b-02: Signal available only
intervals of regeneration cycles
and in service. (Connection refer
to the Figure P5)
B. Process Display (Take 63640B A-01 as example)

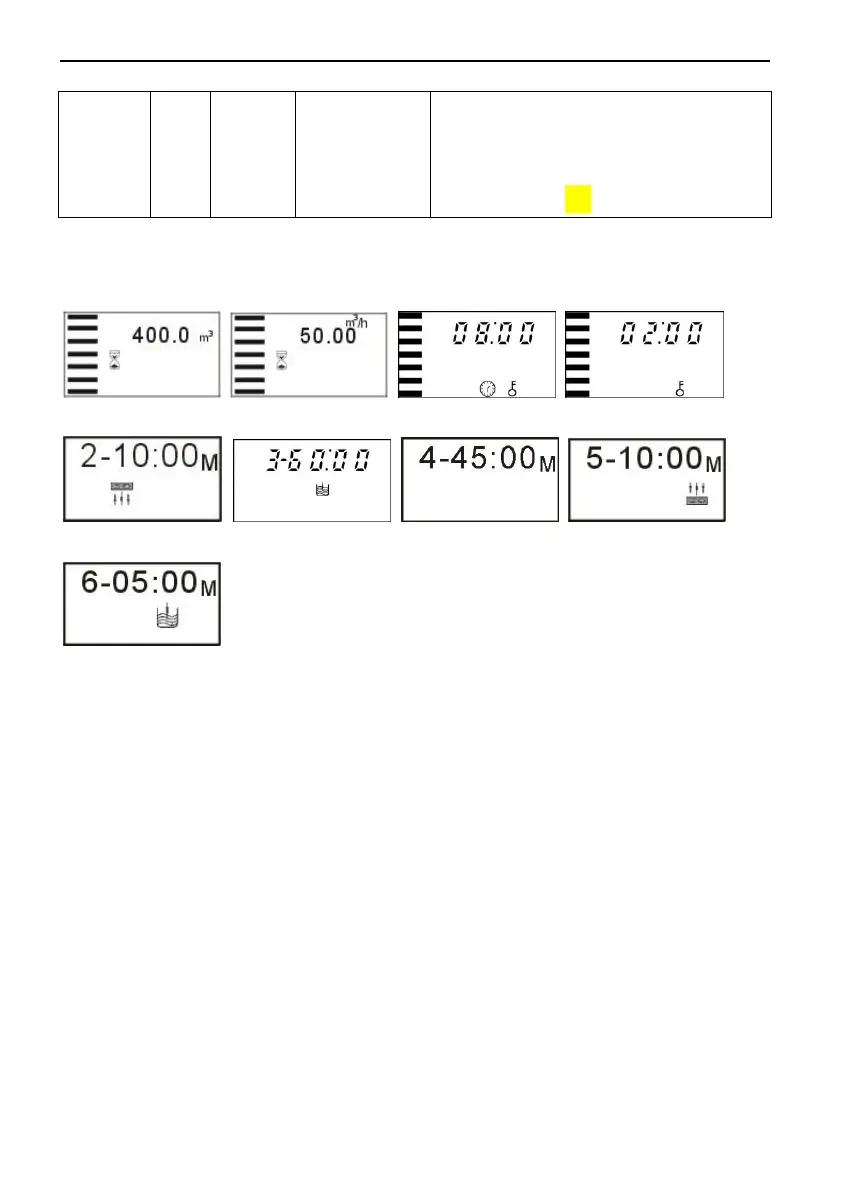

Figure A Figure B Figure C Figure D
Figure E Figure F Figure G Figure H
Figure J
Illustration:
1. In Service status, the figure shows A/B/C/D; In Backwash status, it
shows Figure E/C; In Brine Draw status, it shows F/C; In Slow Rinse status,
it shows G/C; In Fast Rinse status, it shows Figure H/C; In Brine Refill
status, it shows Figure I/C. In each status, every figure shows 15 seconds.
2. Above displays are taking 63640B for example. For the Time Clock Type,
it shows the rest days, such as 1-03D.
3. The display screen will only show “-00-” when the electrical motor is
running.
4. The time of day figure flash continuously, such as “12：12” flash,
indicates long outage of power. It reminds to reset the time of day.
5. The display will show the error code, such as “-E1-” when the system is
in error.
To Next Page
