D. Remote Handling Connector
Used for making pure water, connected with online monitory system or PC
machine: when the conductivity or other parameter reach the setting valve
or PC machine give the signal, need regeneration. It can give the signal to
the remote handling connector of the main control board to let it regenerate
by signal time. The connector receives the signal is as same as handle

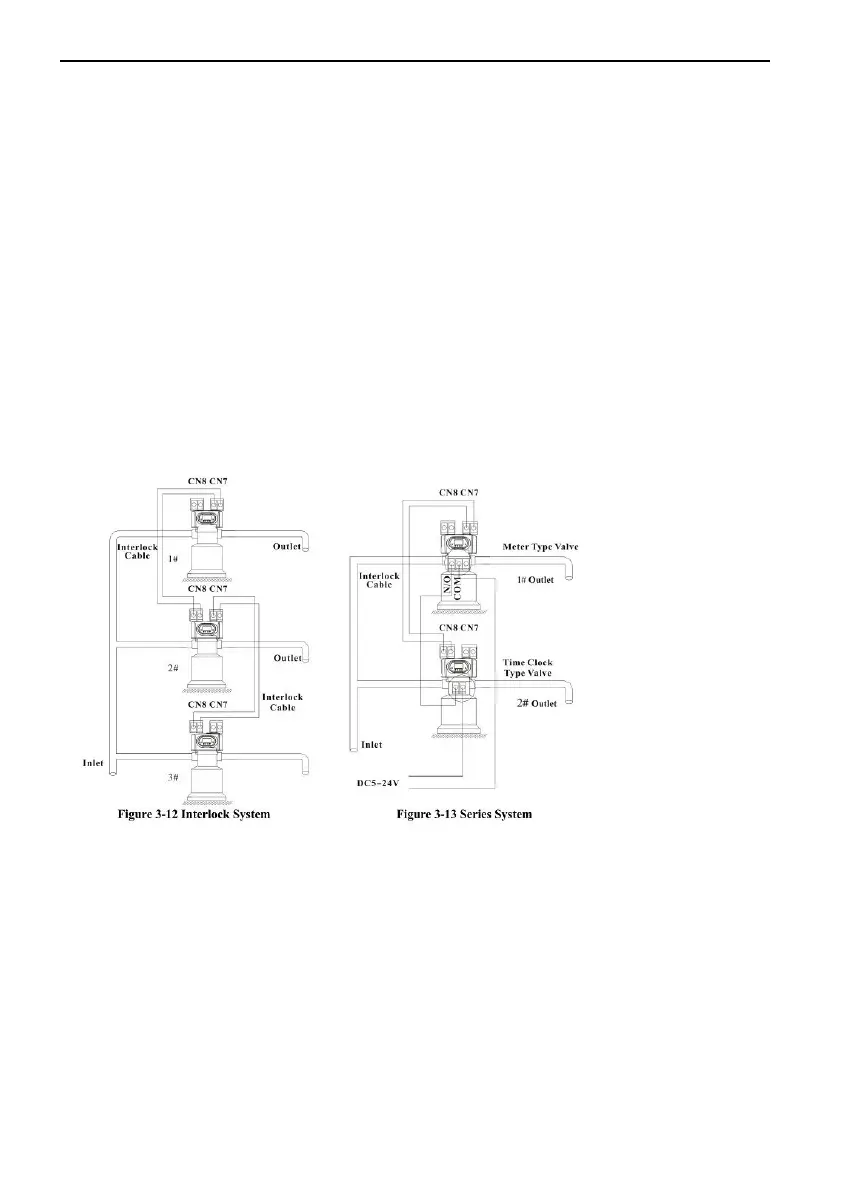

press. The wiring refers to Figure 3-11.
E. Interlock system
At least 2 valves are interlocked connecting in one system and all
valves are in service but regenerate individually. The wiring refers to
Figure3-12.
F.Series System
This is a 2 or more than 2 valves system, all in service, with one flow
meter for the entire system. For the time type valve, the regeneration time
should be set and adjusted to the Max; for the volume type valve, connect
its signal output connector with the remote handle connector of the
time-type valve. That can realize the function of supplying water
simultaneously and regenerating orderly. The wiring refers to Figure 3-13:
