10

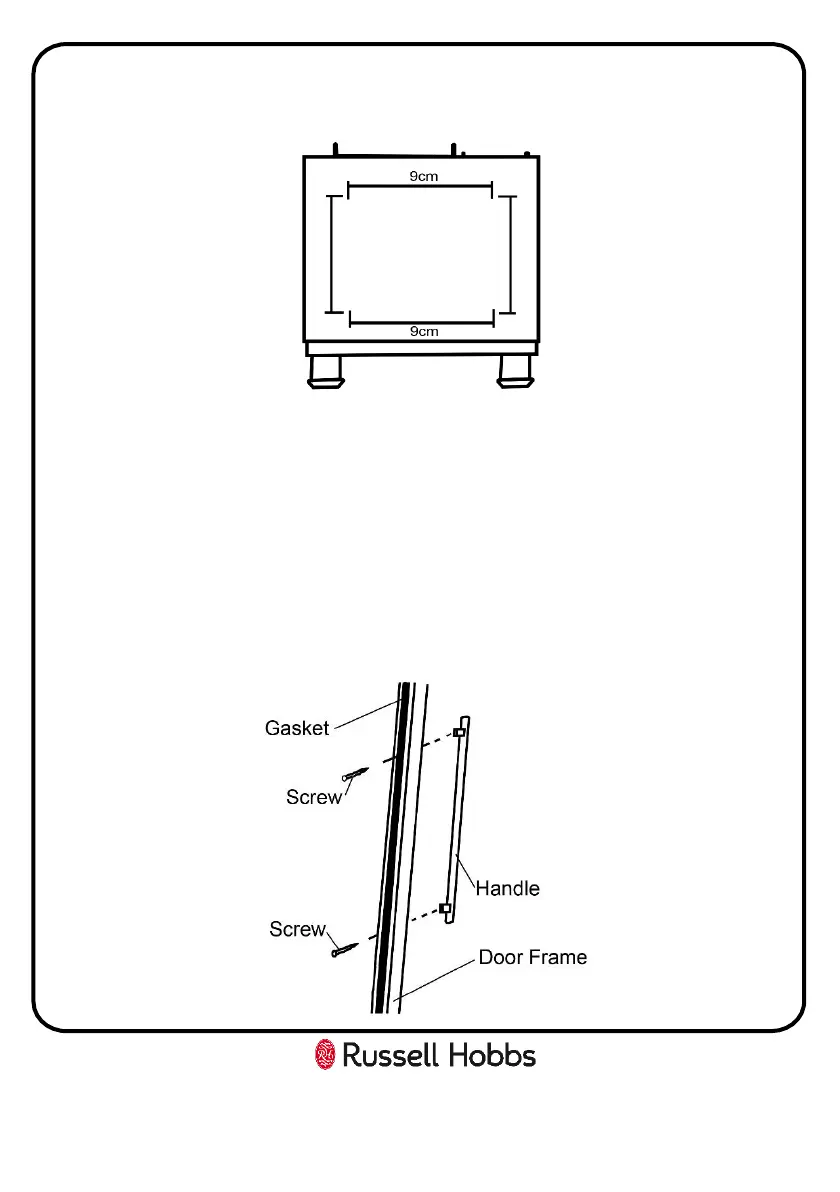

• A decorative plinth can be fitted to the front of the base vent as long as the cut
out shown in the diagram below is made in the plinth. This cut out is required
whether the vent is removed or not.
Handle installation
To install the door handle follow the below steps:
1. Open the door of the appliance and move the door gasket slightly to one side
so that you can see two designated screws/holes for handle installation
2. Install the handle tightly as shown in the diagram below with the two screws
provided.
3. Ensure the door gasket falls back into place and that the door opens and
closes correctly.
9cm
9cm
