14 Russound XSource Installation Guide
AUDIO CONNECTIONS WITH MCASERIES CONTROLLER
The XSource can be used with a Russound MCA-Series
controller and supported user interfaces to access all
features and provide amplication for speakers in multiple
locations.

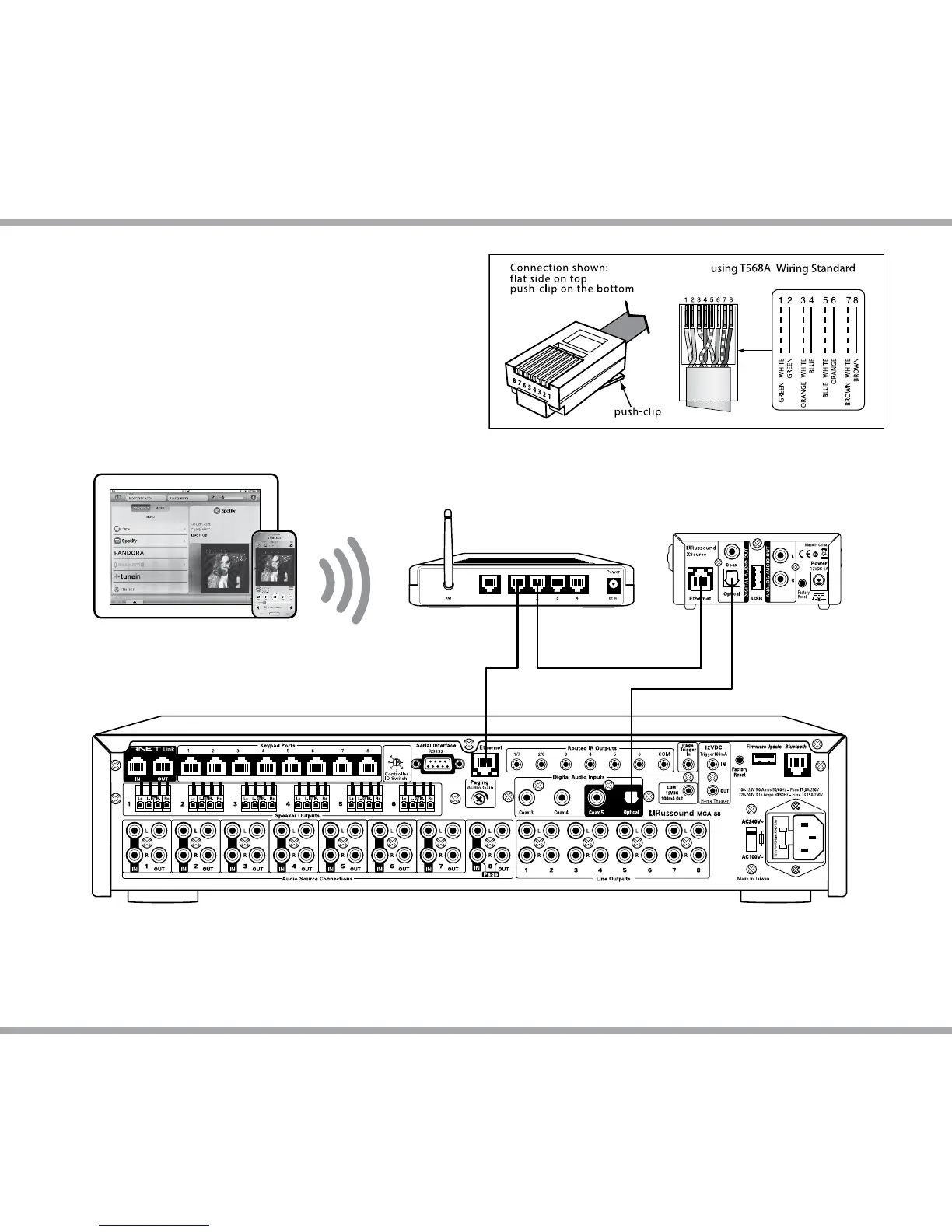

Use the diagram below as an example of possible wiring
connections when using a Russound controller with your
XSource.
/ / /
/
RJ-45 CAT-5 Wiring Scheme
RJ-45
RJ-45
XSource
CAT-5
CAT-5
Optical
MCA-88 Controller
Phone or Tablet
Wireless network
router
WAN
