GET STARTED!
ASSEMBLY INSTRUCTIONS

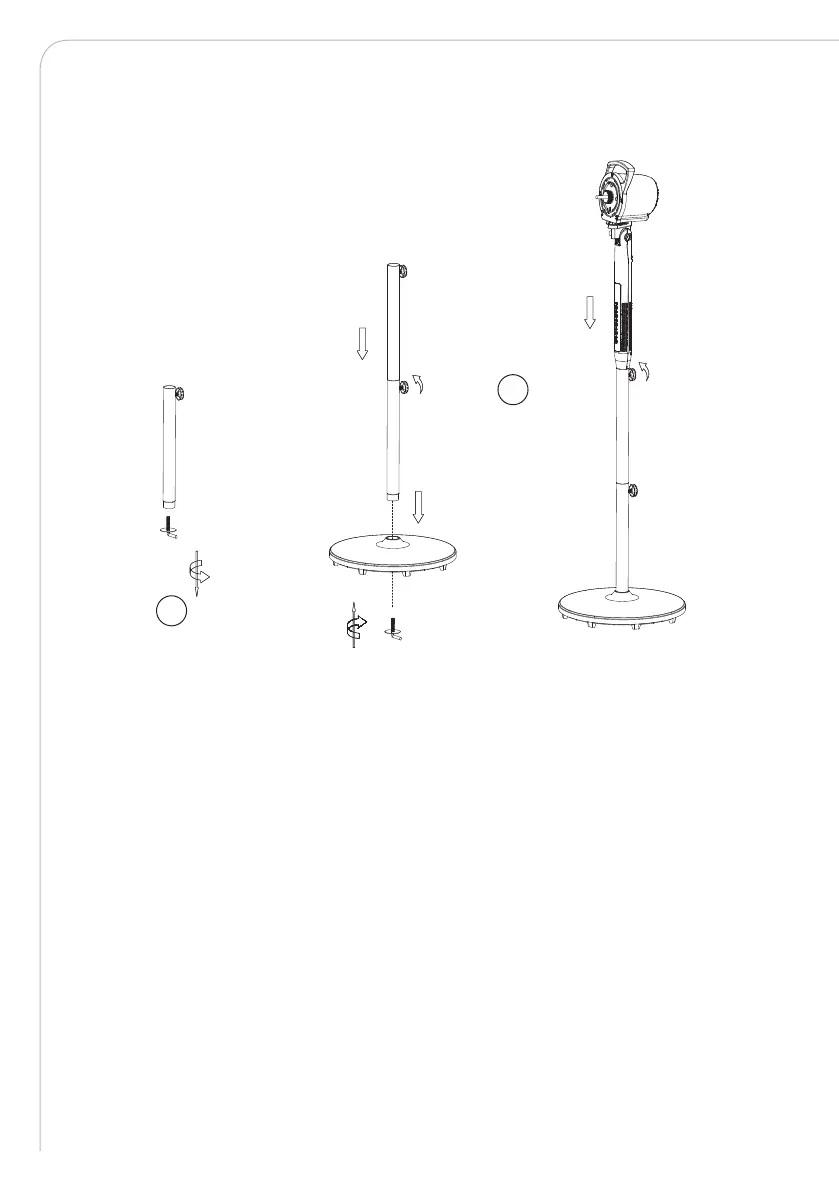

1. Rotate the washer and the L-screw o the lower column.
2. You can assemble this fan in 3 dierent heights.
Table desk fan: Put the control box directly into the base and fix it by tightly
screwing the washer and the L-screw at the back of the base.
Floor standing fan - full height: Put the lower column into the base and fix it
by tightly screwing the washer and the L-screw at the back of the base. Put
the upper column and control box above and use the column fastening bolts
to tighten the connection.
Floor standing fan - mid height: The same procedure as for full height but do
not use the upper column during assembly.
3. Rotate o the grille fastening screw.
4. Align and place the rear grille onto the motor housing. Fix it by tightening the
grille fastening screw.
5. Place the fan blade onto the motor shaft by aligning the groove with the shaft
pin. Fix the blade by tightening the blade fastening screw. Check that the fan
blade can rotate freely by turning it with your hand.
6. Align the front and rear grille.
7. Fasten the front and rear grilles by tightening the screw on the grille clip.
