3. Installation space
3-1. Models:UOSH18AXFWJ and UOSH24AXFWJ
¢

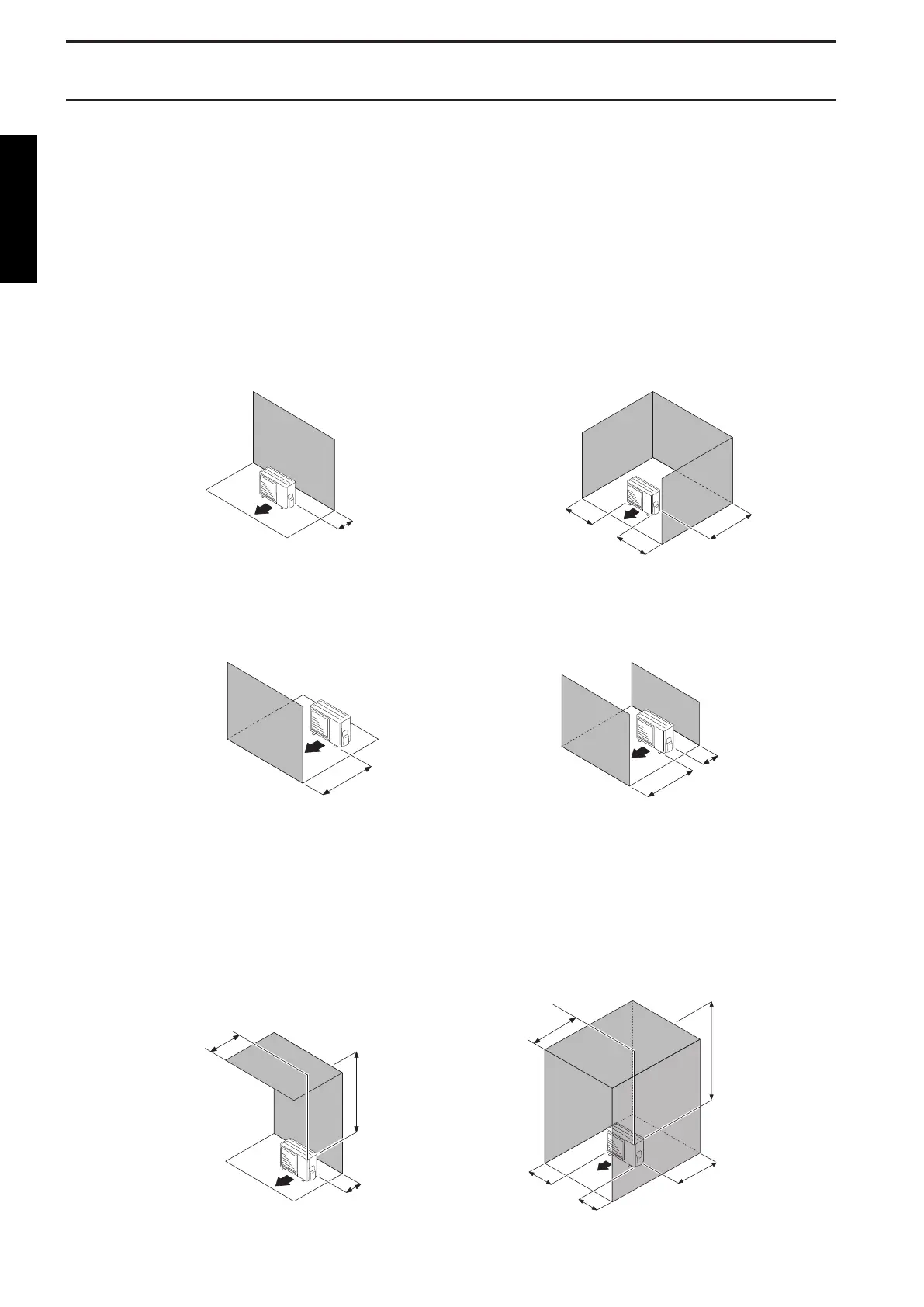

Space requirement
Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
4 (100) or more
10 (250)
or more
12 (300)
or more
4 (100)
or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
24 (600)
or more
24 (600)
or more
4 (100)
or more
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear
and above.
When there are obstacles at the rear, sides,
and above.
12 (300)
or more
Max. 19
(500)
24 (600)
or more
40 (1,000)
or more
4 (100)
or more
10 (250)
or more
20 (500)
or more
Max. 19
(500)
