9
MATAWAY

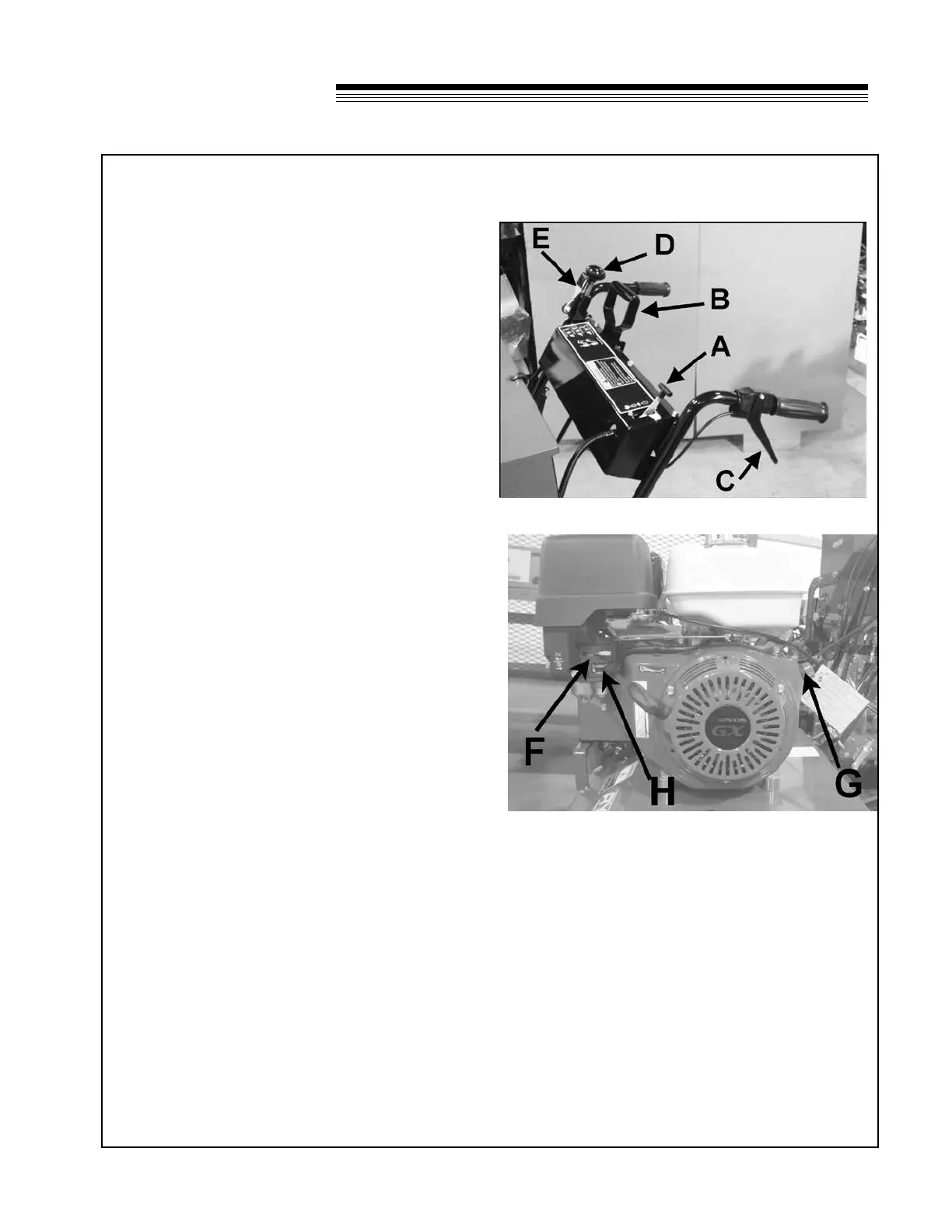

CONTROLS
THROTTLE (A)
Move throttle lever forward to increase engine
speed. Move the lever rearward to decrease
engine speed.
LIFT LEVER (B)
Raises and lowers the frame mounted reel. Pull
the lever back and down to lower the reel Pull
the lever up and forward until it locks over center
to raise the reel .
OPERATOR PRESENCE LEVER (C)
Must be held against the handle bar whenever
the clutch control is engaged or the engine will
stall (the engine can be started without holding
the operator presence lever, if the clutch control
is disengaged).
CLUTCH CONTROL (D)
Engages the clutch for both the drive
transmission and reel rotation. The machine
may be pushed when the drive is disengaged.
Engaging the drive when the machine is off acts
as a parking brake.
REEL CONTROL LEVER (E)
Must be pulled back against the clutch control
handle for the reel clutch to be engaged.
Pull the Reel Control Lever back against the
clutch control and push the clutch control forward
to engage both the drive clutch and the reel
clutch. Push the clutch control forward without
pulling back the reel control lever to engage the
drive clutch ONLY. Pull the clutch control all the
way back until it locks over center to disengage
both clutches.
CHOKE (F)
Move cable control to right to apply choke. Move
choke control to left ro remove choke.
ENGINE SWITCH (G)
Turn the engine switch to the "ON" or "RUN"
position before starting. Turn the engine switch
to the "OFF" position to stop the engine.
FUEL VALVE (H)
Move to the "ON" position to allow fuel to ow to
the engine. Close the fuel valve when the engine
is not being operated.
