9
Jr.
Sodcutter

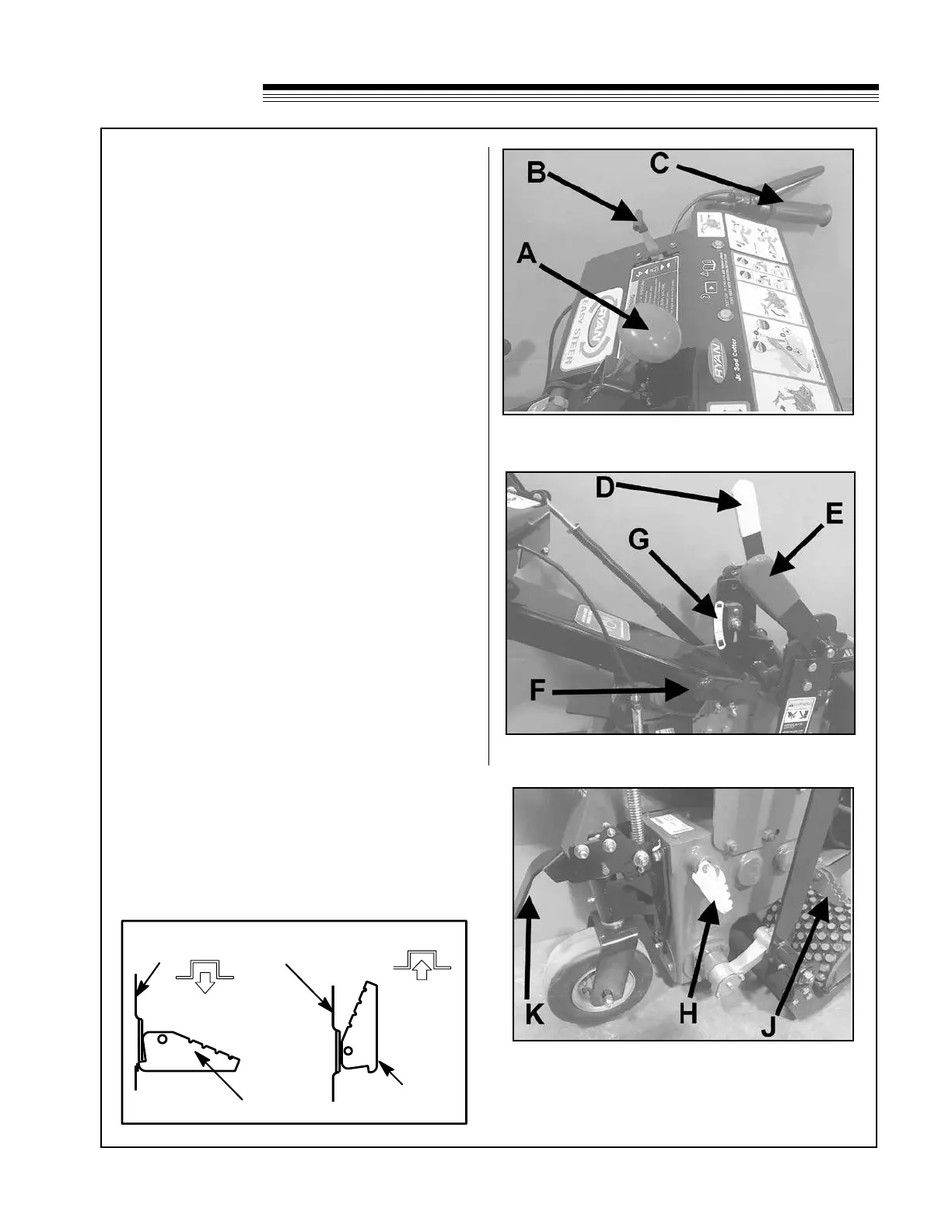

CONTROLS
RED MASTER CLUTCH CONTROL LEVER(A)
Engages / disengages drive belt. Applies brake
to drive belt when pulled FIRMLY to rear.
THROTTLE CONTROL (B)
Controls engine speed.
ENGINE SWITCH
(Located on the engine)
Move to "ON" position to start engine. Move to
"OFF" position to stop the engine.
OPERATOR PRESENCE CONTROL (C)
With master clutch control engaged, engine will
stop if operator presence lever is not depressed.
YELLOW BLADE DEPTH CONTROL LEVER (D)
Raises or lowers cutting blade.
GREEN BLADE DEPTH CONTROL LOCKING
LEVER (E)
Locking lever holds blade depth control in
desired position.
BLACK BLADE ANGLE LOCKING LEVER (F)
Locks blade angle.
DEPTH STOP (G)
Allows resetting of blade depth to the previous
cutting height.
YELLOW BLADE AND RED WHEEL SHIFTER
HANDLES (H & J)
Engage and disengage blade for cutting and
gears for driving Sodcutter.
CASTER WHEEL LOCKING LEVER (K)
Allows for straight cutting when locked (down)
and curved cutting when unlocked (up).
"DISENGAGED"
"ENGAGED"
SHIFTER HANDLE
GEAR
CASE
GEAR
CASE
SHIFTER
HANDLE
