Ryobi 310BVr - Installing the Adapter Onto the Upper Vacuum Tube (Model 31 Obvr Only)

Hooks (3)

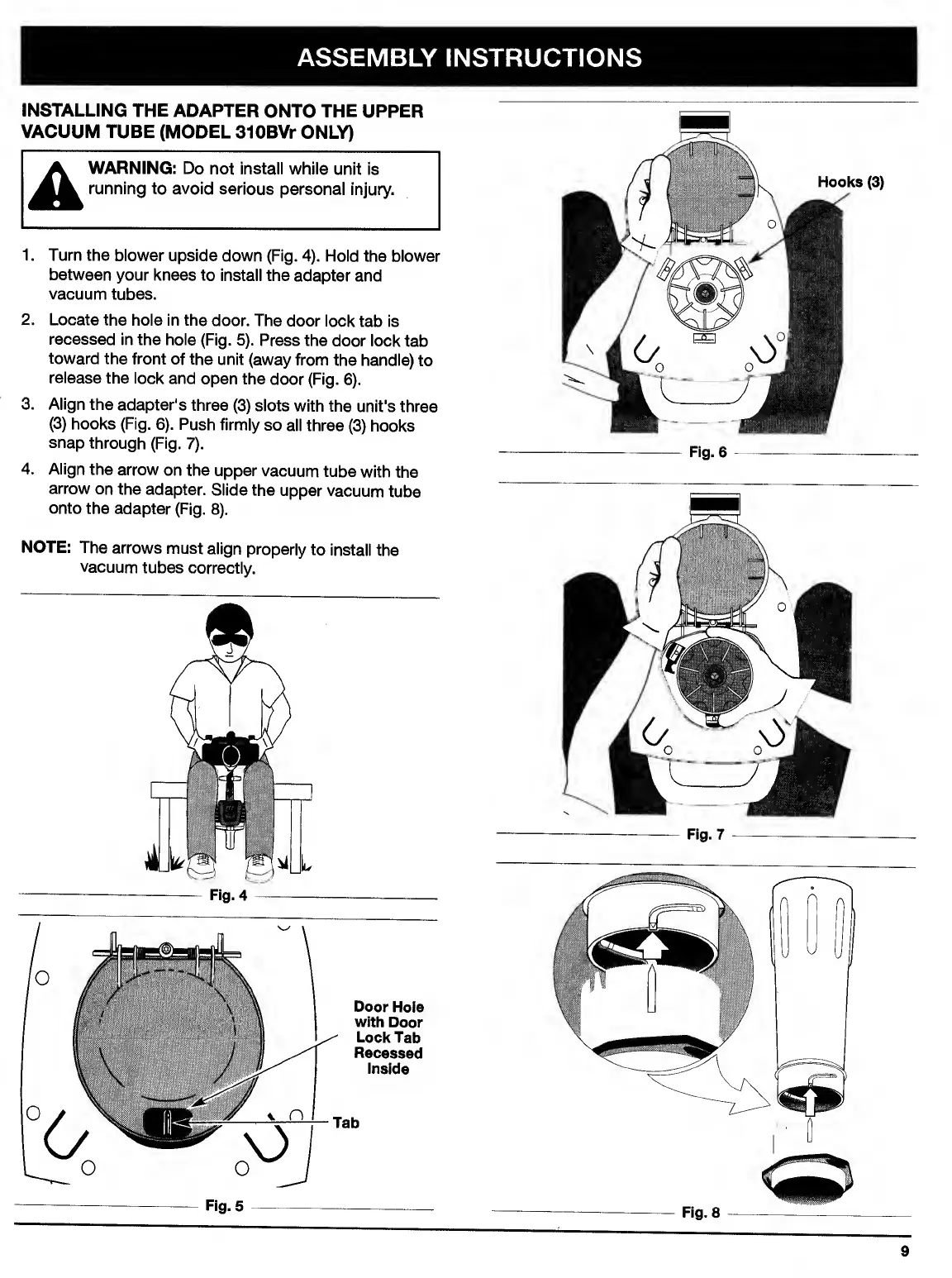

iNSTALLING THE ADAPTER ONTO THE UPPER
VACUUM TUBE (MODEL 310BVr ONLY)
1. T urn the blower upside down (Fig. 4). Hold the blower
between your knees to install the adapter and
vacuum tubes.
2. Locate the hole in the door. The door lock tab is
recessed in the hole (Fig. 5). Press the door lock tab
toward the front of the unit (away from the handie) to
release the lock and open the door (Fig. 6).
3. Aiign the adapter's three (3) slots with the unit's three
(3) hooks (Fig. 6). Push firmly so all three (3) hooks
snap through (Fig. 7).
4. Align the arrow on the upper vacuum tube with the
arrow on the adapter. Siide the upper vacuum tube
onto the adapter (Fig. 8).
NOTE; The arrows must align properly to install the
vacuum tubes correctly.
uoor Hole
with Door
Lock Tab
Recessed
WARNING: Do not install while unit is
running to avoid serious personal injury.
9
