9 - English
Inch
1
0
1
2
3
Inch
1
0
1
2
3
FEED
DIRECTION
H
J
K
L
B
M
Q
R
G
D
O

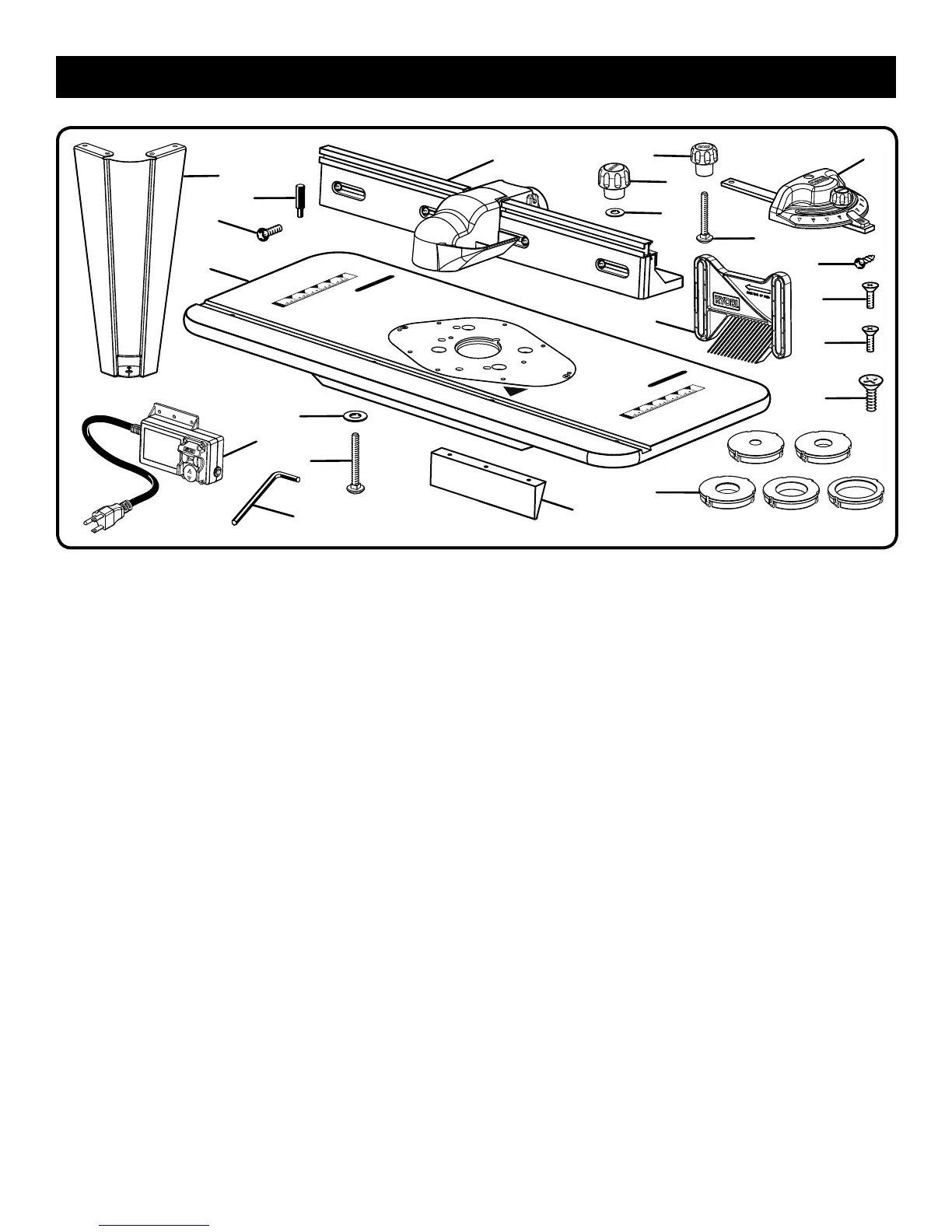

Fig. 4
A
N
C
I
F
E
P
T
S
U
PACKING LIST
See Figure 4.
A. Table Leg Phillips Head Screw ................................... 16
B. Hex Key ........................................................................ 1
C. Starting Pin .................................................................. 1
D. Under Table Guard Screw ............................................ 6
E. Router Insert Plate Screws (5/16-18 x 3/4 in.) ............. 3
F. Router Insert Plate Screws (10-24 x 5/8 in.) ................ 3
G. Router Insert Plate Screws (10-32 x 5/8 in.) ................ 3
H. Table Leg ...................................................................... 4
I. Table Top ...................................................................... 1
J. Switch Box ................................................................... 1
K. Carriage Bolt Washer ................................................... 2
L. Carriage Bolt ................................................................ 2
M. Under Table Guard ....................................................... 2
N. Throat Plates ................................................................ 5
O. Miter Gauge ................................................................. 1
P. Fence Assembly ........................................................... 1
Q. Fence Lock Knobs ....................................................... 2
R. Featherboard ................................................................ 1
S. Featherboard Bolts ...................................................... 2
T. Fence Lock Knob Washer ............................................ 2
U. Featherboard Lock Knobs ........................................... 2
V. Operator’s Manual (not shown)
ASSEMBLY
NOTE: Items A-G are included in a separate blister pack.
