Page 7
SPECIAL NOTE
Your CMS812 mitre cutting and bevel
cutting angles have been preset at the
factory but can and will be misaligned
by rough handling and transportation.
It is essential that your new saw be
realigned before use.
Please adhere to the following resetting
instructions.

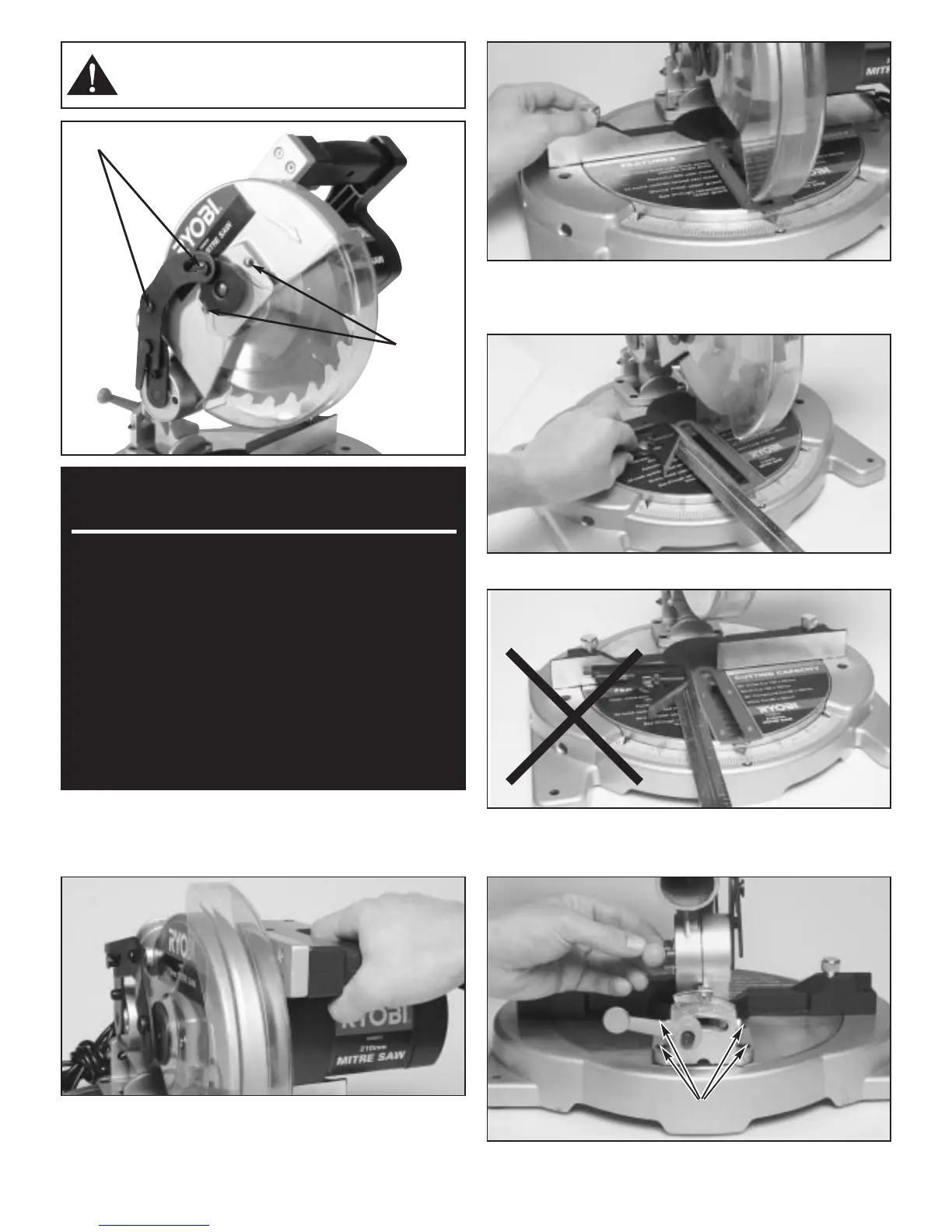

■ SQUARING THE BLADE SAW TO THE FENCE
Pull the saw arm all the way down and engage the lock down
pin to hold the saw arm in the transport position. (Fig 6)
Unlock the mitre table lock knobs. Rotate the mitre table until
the pointer is positioned at 0° position and lock the mitre table
by securing both mitre table lock knobs. (Fig 7)
Lay a set square on the mitre table and against the rear fence
and blade. If the rear fence and blade do not align adjust as
follows. (Fig 8)
Unscrew the four allen screws securing the rear pivot point to
the base and align correctly. (Fig 10)
CAUTION: Always install the blade with the
blade teeth pointing in a downward direction.
Fig.5
Screws
Phillips
Head
Screws
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Allen Screws
To Next Page
