Ryobi CSS1000 User Manual

Page 15
When cutting crown molding by this method the
bevel angle should be set at 33.85
0
. The mitre angle
should be set at 31.62
0
either right or left, depending
on the desired cut for the application. See the chart
below for correct angle settings and correct
positioning of crown molding on mitre table.
The settings in the chart below can be used for
cutting all standard crown molding with 52
0
and 38
0
angles. The crown molding is placed flat on the mitre
table using the compound features of your mitre saw.
Type of Cut
Left Side, inside corner
1. Top edge of molding against fence
2. Mitre table set right 31.62
0
3. Save left end of cut
Right Side, inside corner
1. Bottom edge of molding against fence
2. Mitre table set left 31.62
0
3. Save left end of cut
Left Side, outside corner
1. Bottom edge of molding against fence
2. Mitre table set left 31.62
0
3. Save right end of cut
Right Side, outside corner
1. Top edge of molding against fence
2. Mitre table set right 31.62
0
3. Save right end of cut

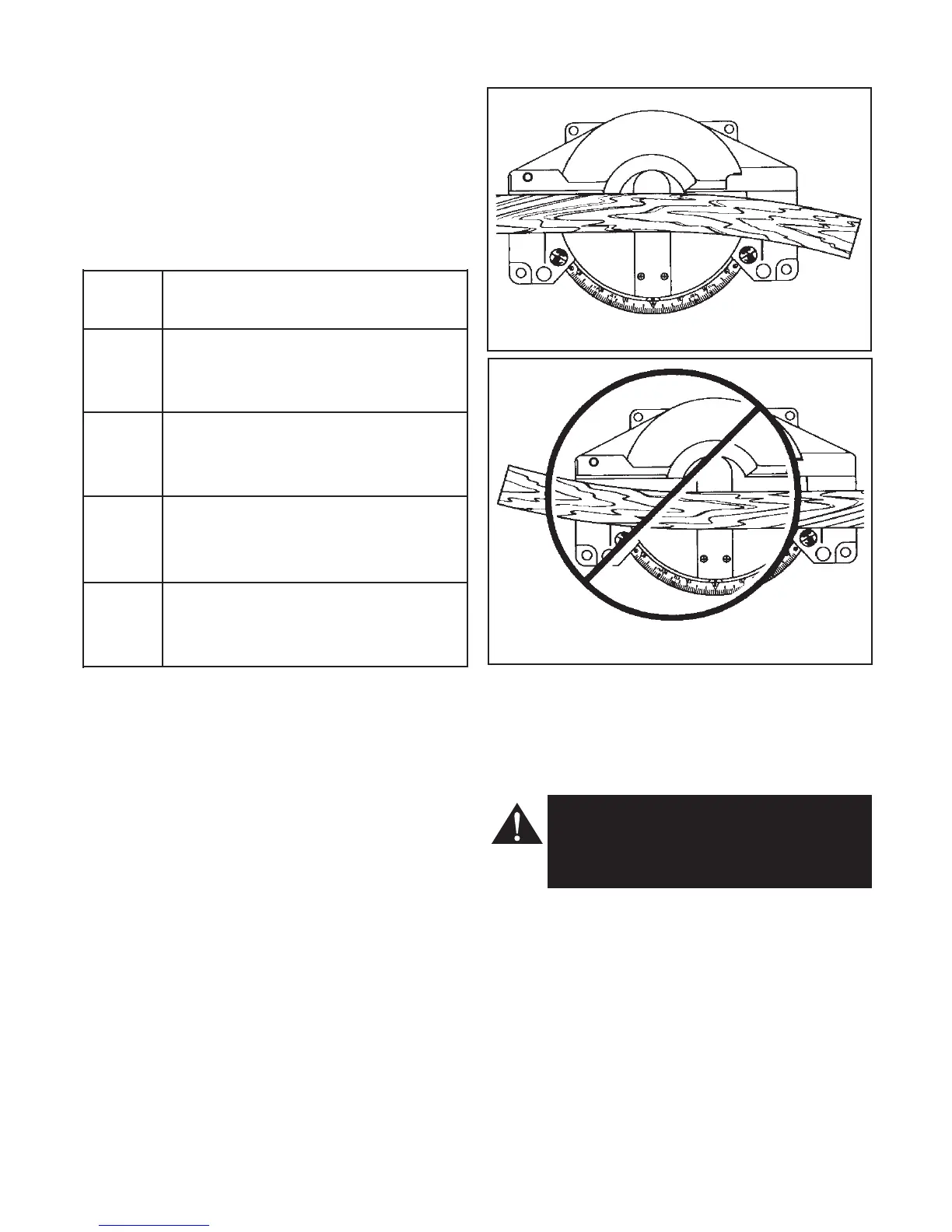

■ CUTTING WARPED MATERIAL
(See Figures 28 & 29)
When cutting warped material, always make sure it is
positioned on the mitre table with the convex side
against the fence as shown in figure 28.
If the warped material is positioned the wrong way as
shown in figure 29, it will pinch the blade near the
completion of the cut.
WARNING: To avoid a kickback and to
avoid serious personal injury, never
position the concave edge of bowed or
warped material against the fence.
Bevel
Angle
Setting
33.85
0
33.85
0
33.85
0
33.85
0
Right
Fig28.
Wrong
Fig 29.
