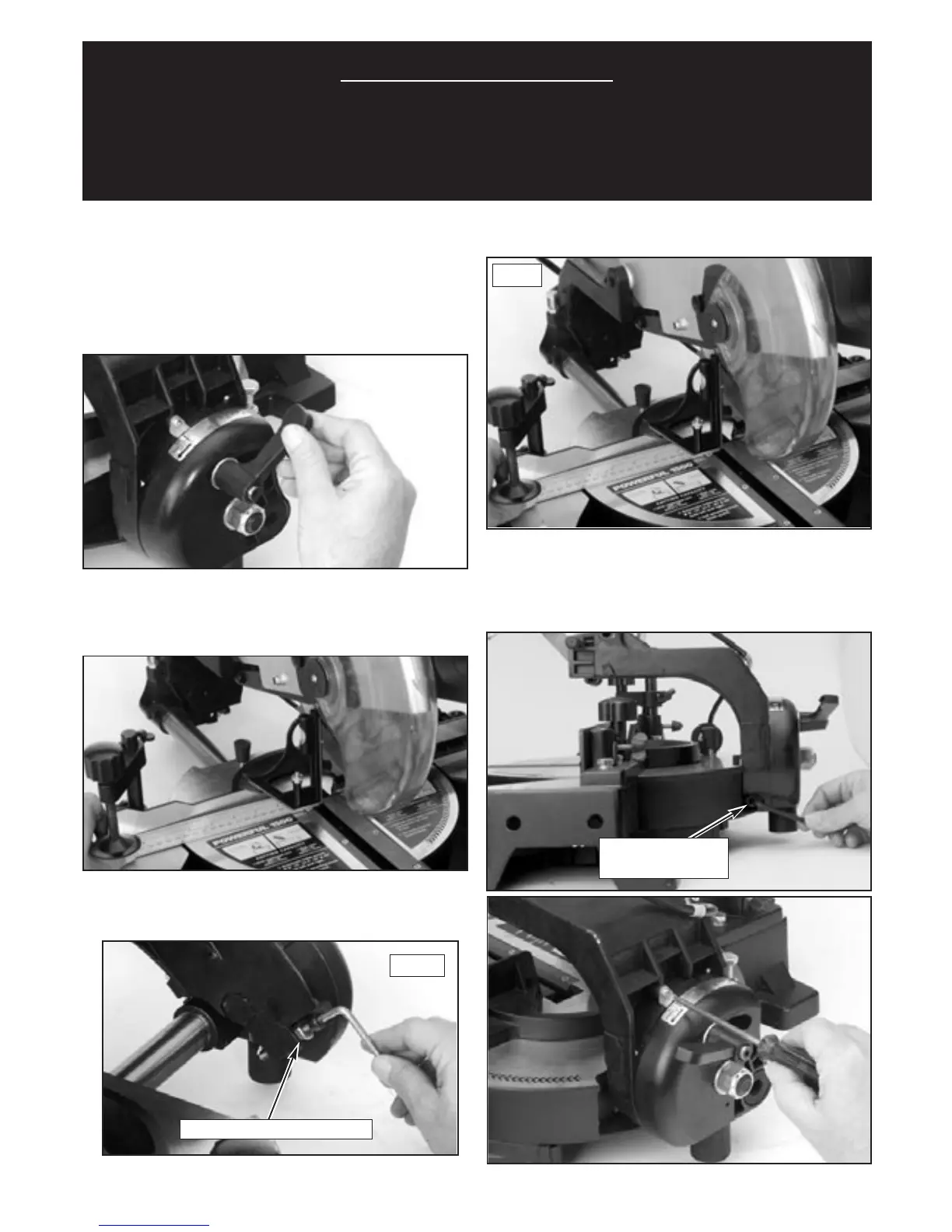

■ SQUARING THE BLADE TO
THE MITRE TABLE AT 0
O
Pull the saw arm all the way down and engage the
lock down pin to hold the saw arm in the transport
position.
Unlock the bevel lock lever and move the saw arm to
the 0 position and lock the bevel lock lever. (Fig 12)
Lay the set square on the mitre table and against the
blade and if the blade and mitre table do not align
adjust as follows. (Fig 13)
Unscrew the 0
0
bevel positioning bolt at the right
hand side as shown. (Fig 14)
Correctly align the blade and mitre table using the set
square and lock the bevel lock lever. (Fig 15)
Reset the 0
0
bevel positioning bolt so when the saw
arm is moved to the 0
0
bevel position the bolt
bottoms out on the 0
0
bevel positioning bar (Fig 16)
and adjust the pointer to the 0
0
position. (Fig 16A)
Page 7
Fig 14
Fig 15
Fig 16
Fig 16A
Fig 12
Fig 13
SPECIAL NOTE:
Your CSS1000 mitre cutting and bevel cutting angles have been preset
at the factory but can and will be misaligned by rough handling and
transportation. It is essential that your new saw be realigned before use.
Please adhere to the following resetting instructions.
0
0
Bevel Positioning Bolt
0
0
Bevel
Positioning bolt
