1
RYOBI ART WORK
Refer to Drawings for Dimensions.
Material: 60lb. Stock Paper.
Color: Lift-off Bright Pink.
2
3
4
5
HOW TO GET STARTED
D
TINE SHAFT
GEAR BOX
ANGLED
EDGE

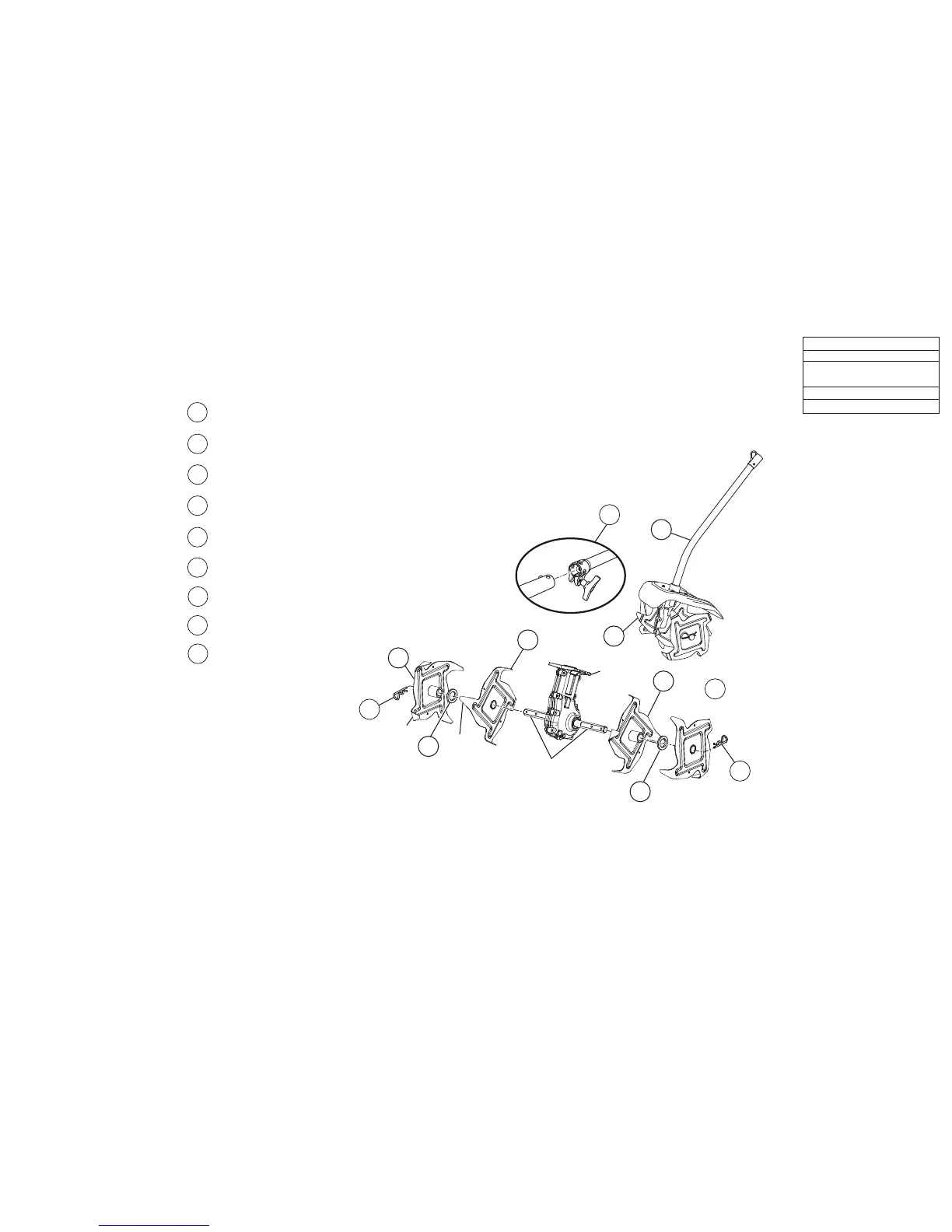

The tiller has four tines - two inner tines, B and C, two outer tines, A and D. For proper operation the tines must be installed correctly.
6
Make The Most Of Your Purchase!
For any questions about operating or maintaining your product, call the Ryobi Help Line!
Your Product has been fully tested prior to shipment to ensure your complete satisfaction.
Troubleshooting tips are available in your operator's manual.
Place tine C on the tine shaft to the left of the gear box. The stamped side of the tine should face away from the gear box.
Place tine B on the tine shaft to the right of the gear box. The stamped side of the tine should face away from the gear box.
Place a felt washer on each side of the tine shaft, and slide to rest against the inner tines.
Place the outer tine D on the left side of the tine shaft. The stamped side should face in toward tine C.
Place the outer tine, A, on the right side of the tine shaft. The stamped side should face in toward tine B.
Note: When installed correctly, the angled edge of the tine blades should face the ground.
7
8
9
Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
To secure the tines to the tine shaft, insert the hitch pin into the holes located on either side of the tine shaft.
Note: See Operator’s Manual for additional tine patterns.
Connect attachment to power head.
5
4
3
1
2
6
9
5
7
8
8
B
A
C
To Next Page
