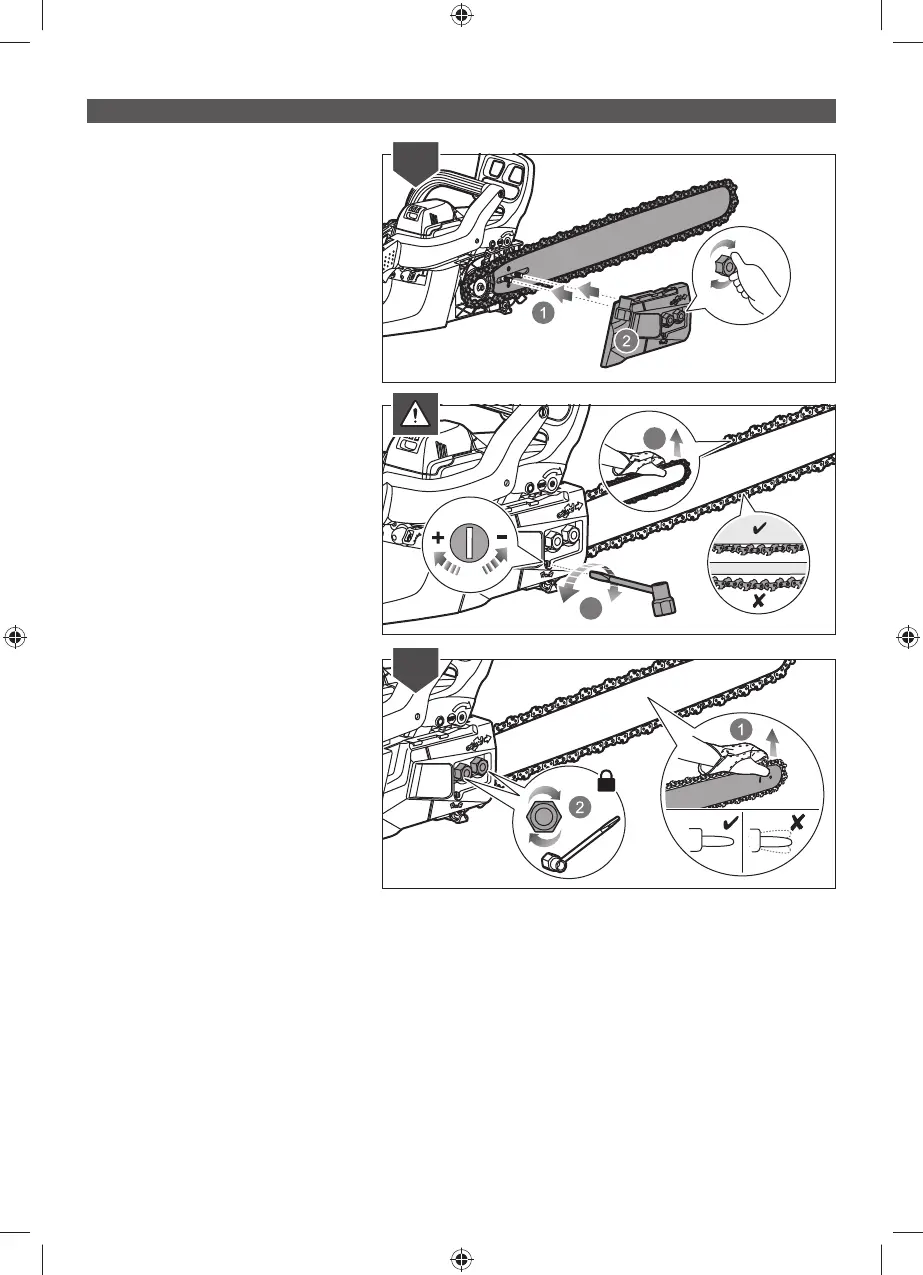

drive links are aligned in the bar groove.
5. Attach the bar to the chain saw and loop
the chain around the drive sprocket.
Replace the chain cover and bar
mounting nuts. Finger-tighten the bar
mounting nuts. The bar must be free to
move for chain tension adjustment.
NOTE: Ensure the chain tensioning
spigot aligns with the hole in the guide
bar.
WARNING: Adjust the chain tension. Refer
to the “Adjusting chain tension” section.
6. Hold the tip of the guide bar up and
tighten the bar mounting nuts securely to
11 ~ 13 Nm (Turn the nut 180° or 3 flats
past finger tight). Do not overtighten.
