FEATURES
OPERATION

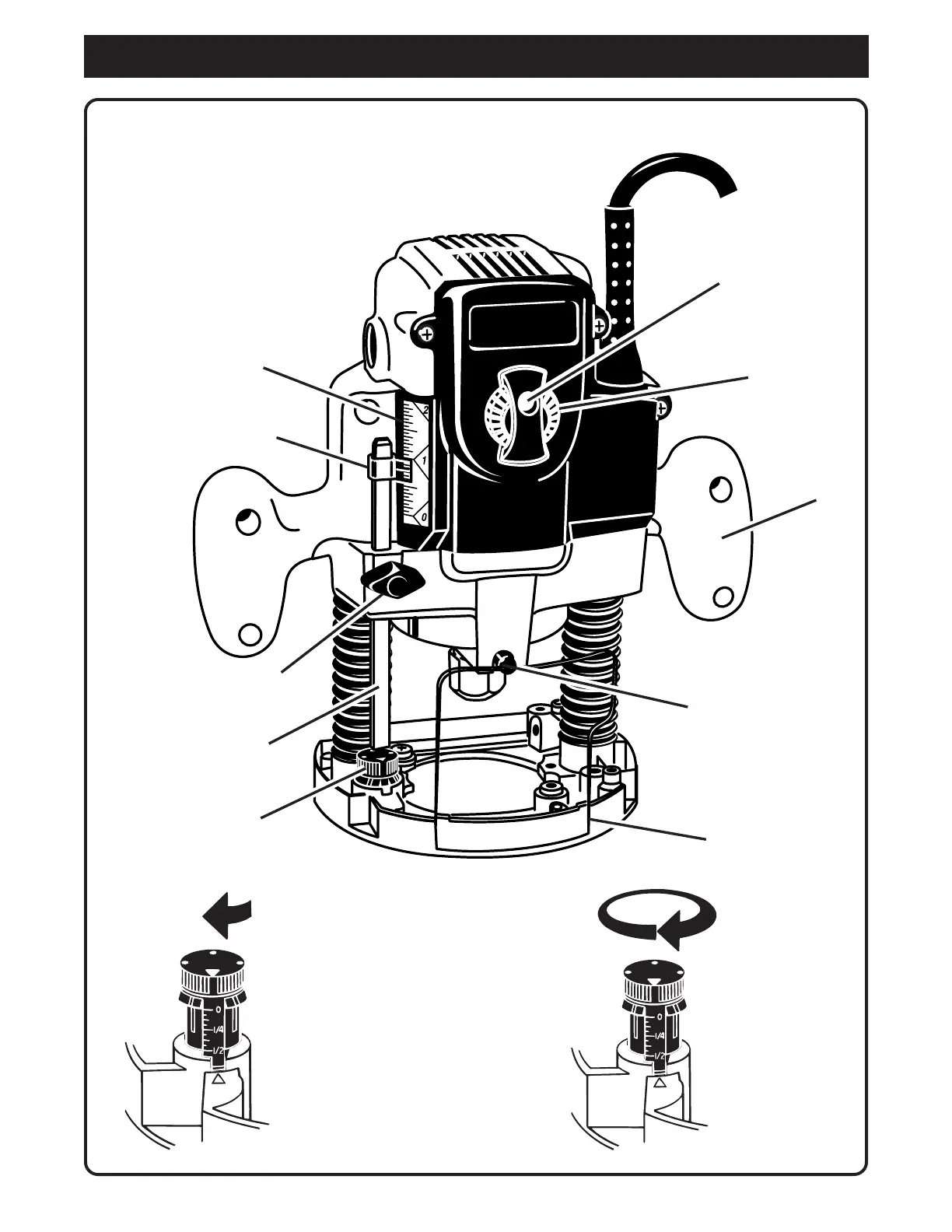

FRONT VIEW OF ROUTER
Fig. 1
CHIP SHIELD
SPINDLE LOCK
ACCU-STOP
TM
MICRO-ADJUSTABLE
DEPTH STOP
STOP BAR
LOCK KNOB
ZERO RESET
INDICATOR
SCALE
HANDLE
EACH 90
O
ROTATION
OF DEPTH STOP KNOB
EQUALS 1/64 in.
(0.4 mm) CHANGE IN
DEPTH OF CUT
EACH COMPLETE
ROTATION (360
O
) OF
DEPTH STOP KNOB
EQUALS 1/16 in. (1.6 mm)
CHANGE IN DEPTH OF
CUT
VARIABLE SPEED
CONTROL SELECTOR
SPEED SELECTION
SIGHT WINDOW
