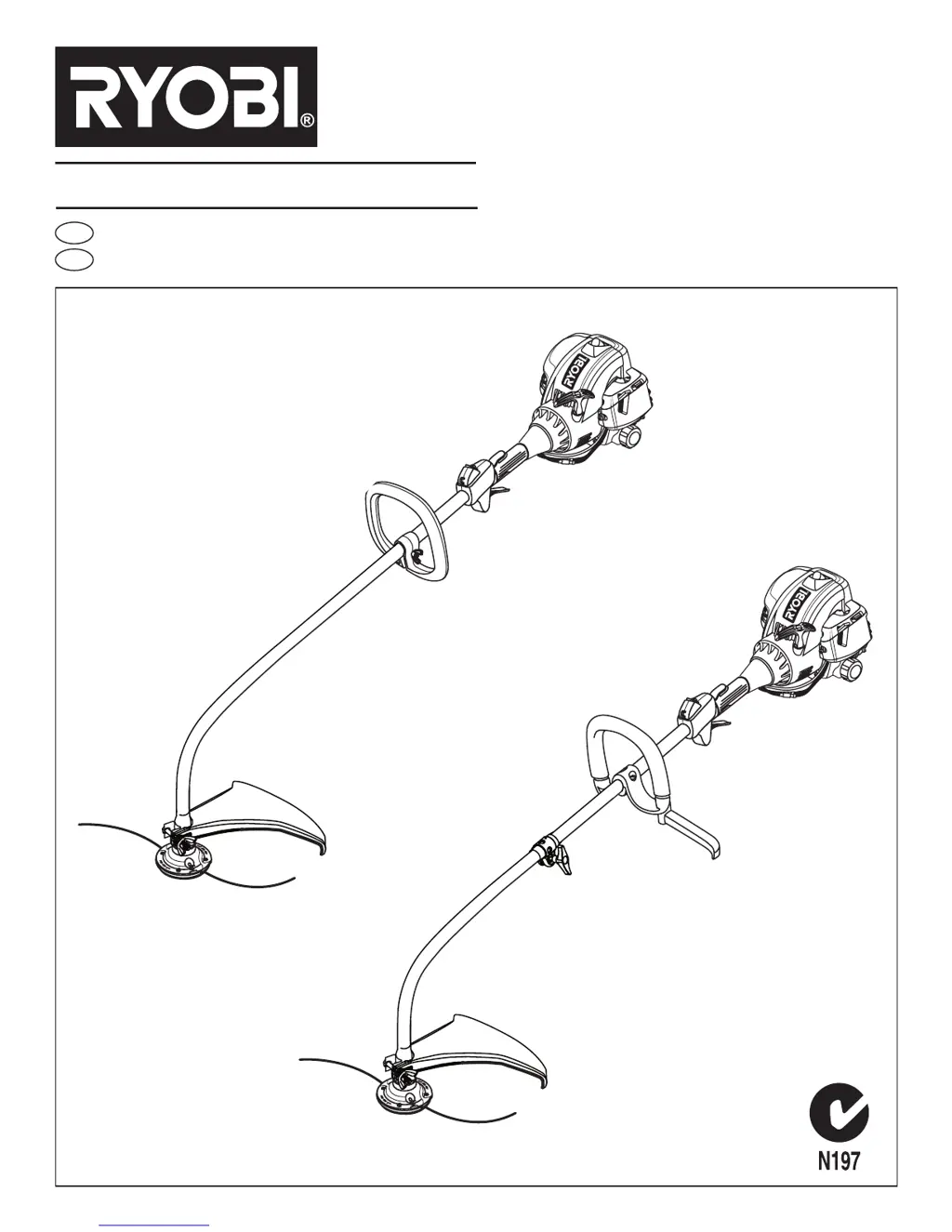

RLT30CDNB / RLT30CESNB
 
 
GB
E
RLT30CDNB
RLT30CESNB

Questions and Answers

  • C
    cody54Aug 6, 2025
    What to do if my Ryobi Trimmer engine will not start?
    • K
      Katelyn MarquezAug 7, 2025
      If your Ryobi Trimmer engine won't start, there are several potential causes. First, check for spark by removing the spark plug, reattaching the cap, and laying it on the metal cylinder. Pull the starter rope and look for a spark at the plug tip. If there's no spark, try a new spark plug. Second, ensure the primer bulb fills with fuel when pushed. If it doesn't, the fuel delivery system may be blocked, and you should contact a servicing dealer. If the bulb fills, the engine might be flooded. Set the start lever to the START position, squeeze the trigger, and repeatedly pull the rope until the engine starts. Note that this may require numerous pulls. Also, if the starter rope pulls harder than when new, contact a servicing dealer.
  • J
    jason26Aug 10, 2025
    Why does my Ryobi Trimmer engine start, run, and accelerate but will not idle?
    • N
      Nicholas VaughnAug 11, 2025
      If your Ryobi Trimmer starts, runs, and accelerates but won't idle, the idle speed screw on the carburetor likely needs adjustment. Turn the idle speed screw clockwise to increase the idle speed.
  • J
    Joy GibsonAug 16, 2025
    What to do if the line will not advance on my Ryobi RLT30CESNB?
    • J
      jessicajohnsonAug 16, 2025
      If the line on your Ryobi Trimmer won't advance, consider these possibilities: The line may be welded to itself, in which case you should lubricate it with silicone spray. There might not be enough line on the spool, so install more line. The line could be worn too short, in which case you should pull the lines while alternately pressing down on and releasing the bump head. The line could also be tangled on the spool, so remove the line from the spool and rewind it. Finally, the engine speed may be too slow, so advance the line at full throttle.
  • J
    joe01Aug 21, 2025
    Why does my Ryobi RLT30CESNB engine not reach full speed and emits excessive smoke?
    • J
      Jose WrightAug 21, 2025
      If your Ryobi Trimmer engine doesn't reach full speed and emits excessive smoke, check the lubricant fuel mixture and use fresh fuel and the correct 2-stroke lubricant mix. Also, the air filter might be dirty, so clean the air filter.
  • M
    Michael BakerAug 26, 2025
    Why does my Ryobi RLT30CESNB Trimmer engine start but will not accelerate?
    • J
      Jessica FloresAug 27, 2025
      If your Ryobi Trimmer engine starts but won't accelerate, allow the engine to completely warm up for approximately three minutes. If it still does not accelerate after this time, contact a servicing dealer.
  • L
    lindseygardnerAug 31, 2025
    What causes grass to wrap around the shaft housing and bump head of my Ryobi Trimmer?
    • R
      Renee KennedyAug 31, 2025
      Grass wrapping around the shaft housing and bump head of your Ryobi Trimmer can be caused by cutting tall grass at ground level, so cut tall grass from the top down. It can also happen if you're operating the trimmer at part throttle, so operate the trimmer at full throttle.

Summary

Symbols

Safety Alert Symbol

Indicates danger, warning or caution. Your safety is involved.

Read Your Operators Manual

Manual contains special messages for safety concerns, operation and servicing.

Wear Eye and Hearing Protection

Wear eye and hearing protection when operating this equipment.

Keep Bystanders Away

Keep all bystanders at least 15m away.

Ricochet Danger

Danger of Ricochet.

No Blade Installation

Do not install any type of blade on this unit.

RPM Decal Information

Rotational direction and maximum speed of the shaft for the cutting attachment.

Footwear Requirement

Wear non-slip safety footwear when using this equipment.

Glove Requirement

Wear non-slip, heavy-duty gloves.

No Smoking Warning

Do not smoke when mixing fuel or filling fuel tank.

Petrol Specification

Use unleaded petrol with an octane rating of 87 or higher.

Lubricant Specification

Use synthetic 2-stroke lubricant for air cooled engines.

Fuel Mixing Procedure

Mix fuel thoroughly and each time before refuelling.

Switch Operation

On/Off Switch. I = ON to Run, O = OFF to Stop.

General Safety Rules

Specific Safety Rules for Trimmer Use

Rules specific to trimmer operation, including guards, line, and handling.

Specifications

Fuel and Refueling

Handling Fuel Safely

Guidelines for safe handling of flammable fuel, avoiding skin contact and inhalation.

Mixing the Fuel

Instructions for mixing petrol and 2-stroke lubricant for the engine.

Filling the Tank

Procedure for safely filling the fuel tank, including cleaning and cap handling.

Starting and Stopping

Instructions for safely starting and stopping the trimmer engine.

Maintenance

Spark Plug Replacement

Information on replacing the spark plug, including type and gap.

Idle Speed Adjustment

Procedure for adjusting the idle speed screw to correct running issues.

Storing the Product

Guidelines for storing the trimmer, including fuel draining and location.

Troubleshooting

Engine Will Not Start

Possible causes and solutions for the engine failing to start.

Engine Starts But Will Not Accelerate

Troubleshooting steps for an engine that starts but lacks acceleration.

Engine Does Not Reach Full Speed

Solutions for an engine that runs but emits excessive smoke and lacks full speed.

Line Will Not Advance

Causes and fixes for the cutting line failing to advance during operation.

Grass Wraps Round Shaft Housing

Solutions for grass entanglement issues around the trimmer's shaft and bump head.

Bump Knob Hard to Turn

Troubleshooting for a stiff or difficult-to-turn bump knob.

Lubricant Drips from Muffler

Reasons and solutions for lubricant leakage from the muffler.
