Ryobi RMX001 - Tools Needed

9 − English

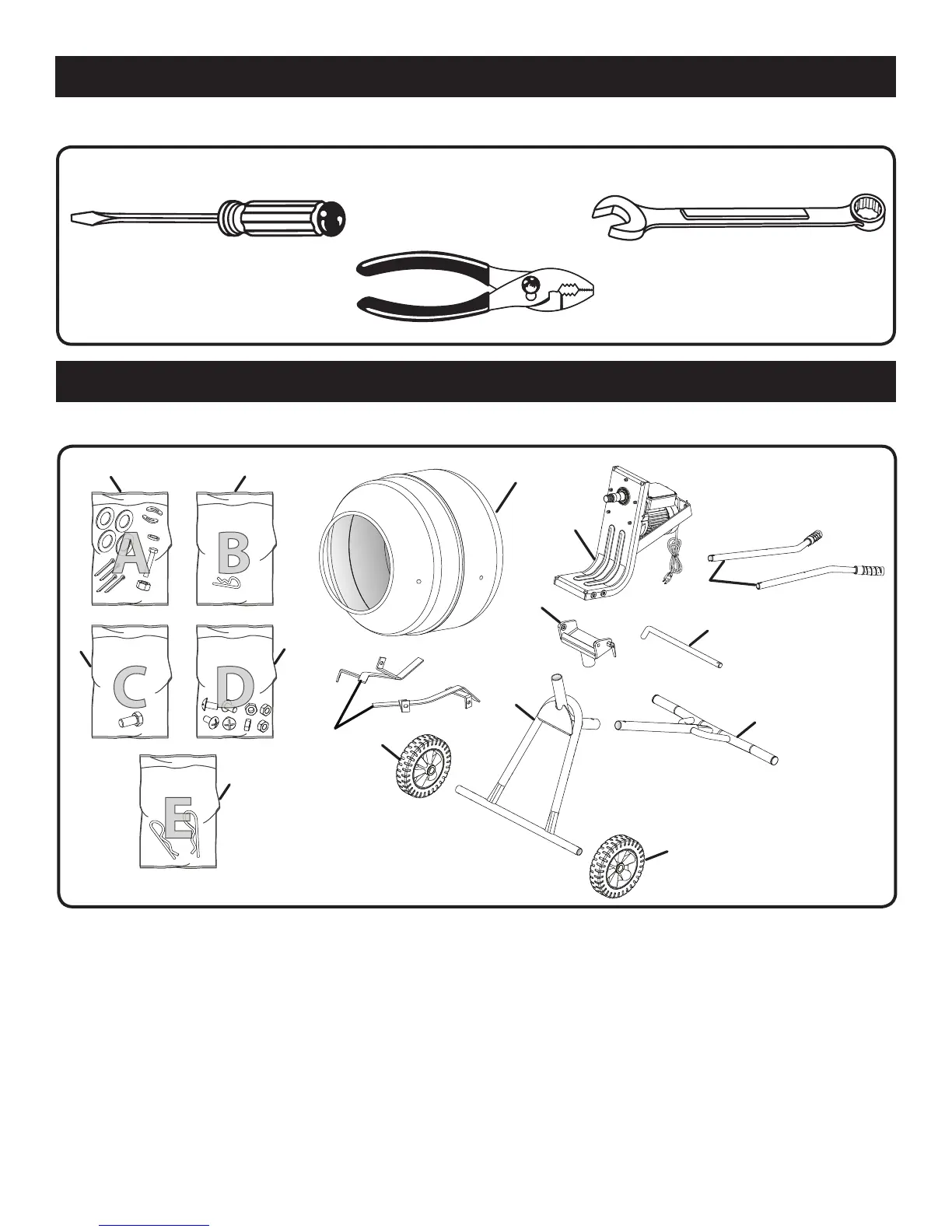

TOOLS NEEDED
LOOSE PARTS
Fig. 5
Fig. 4
FLAT HEAD SCREWDRIVER (LARGE)
PLIERS
17 mm AND 19 mm WRENCHES
The following tools (not included or drawn to scale) are needed for assembly:
Some of the Loose Parts shown below are stored in the drum. Parts not drawn to scale:
A - Plastic Bag (A)
Washer (Large) ......................................................4
Cotter Pin ..............................................................4
Bolt (10 mm) ..........................................................1
Arc Washer ............................................................2
Lock Washer .........................................................1
Nut (10 mm) ........................................................... 1
B - Plastic Bag (B)
Hitch Pin (Small) ....................................................1
C - Plastic Bag (C)
Bolt (17 mm) ..........................................................1
D - Plastic Bag (D)
Nut (12 mm) ........................................................... 4
Bolt (Phillips Hd.) ...................................................4
E - Plastic Bag (E)
Hitch Pin (Large) ....................................................2
F - Drum .........................................................................1
G - Motor Assembly .......................................................1
H - Handle ......................................................................2
I - Pivot Bracket ............................................................1
J - Pivot Pin ...................................................................1
K - Mixing Tine ...............................................................2
L - Wheel ........................................................................ 2
M - Front leg ...................................................................1
N - Rear Leg ...................................................................1
H
F
A
C
B
D
E
G
I
M
L
L
J
N
K
