FEATURES
PRODUCT SPECIFICATIONS
Blade Arbor ..............................................................5/8 in.
Blade Diameter .......................................................... 10 in.
Blade Tilt ................................................................0° - 45°
Rating ...............................................120 V, AC only, 60 Hz
Input .....................................................................15 Amps
No Load Speed ....................................5,000 r/min. (RPM)
Cutting Depth at 0° ...................................................... 3 in.
Cutting Depth at 45° ..............................................2-1/2 in.
ANTI-KICKBACK
PAWLS

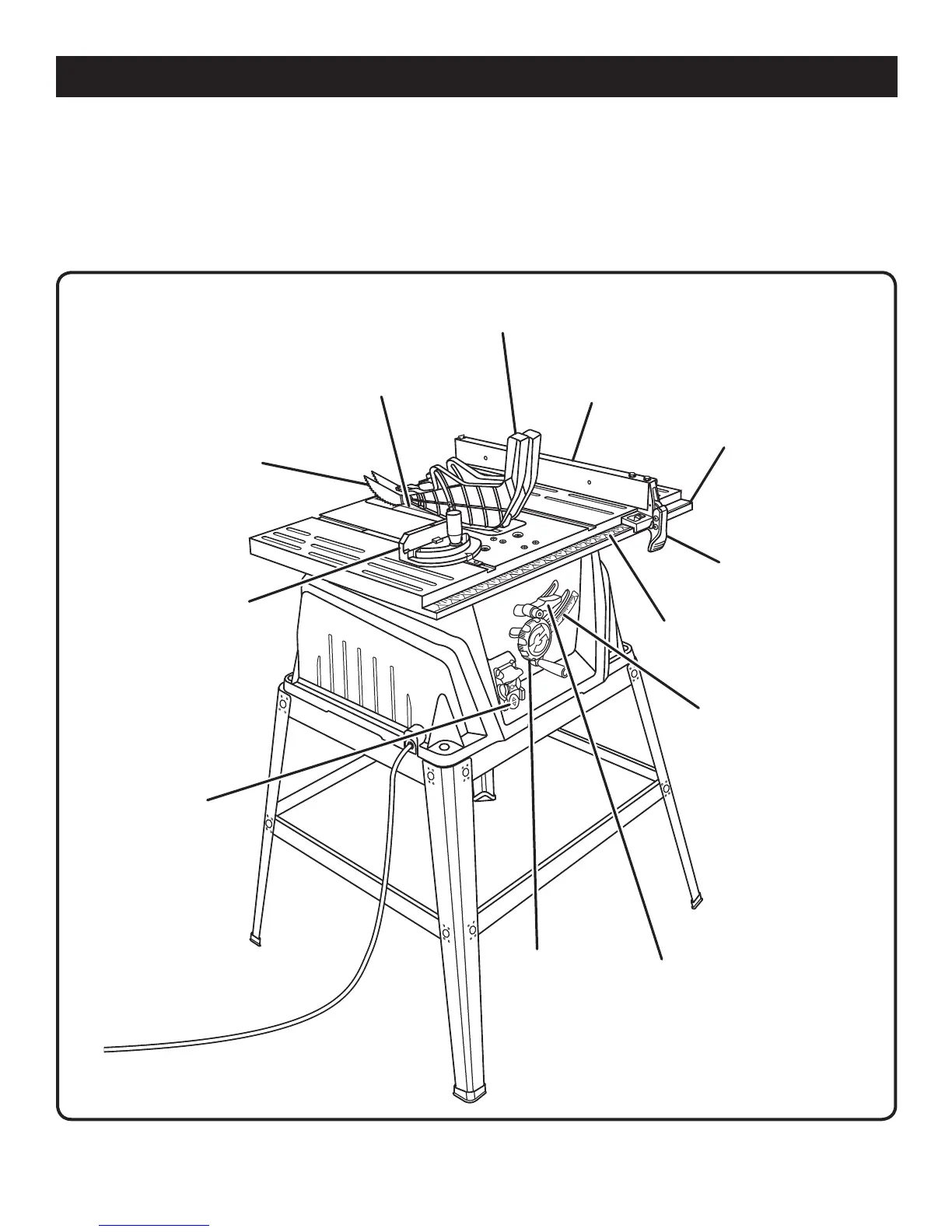

Fig. 2
MITER
GAUGE
BLADE
GUARD
FRONT
RAIL
LOCKING
LEVER
SWITCH
HEIGHT/BEVEL
ADJUSTING
HANDWHEEL
BEVEL
LOCKING
LEVER
BEVEL
SCALE
RIP
FENCE
RIVING
KNIFE
RIP
SCALE
