RYOBI 10 in. TABLE SAW – MODEL NUMBER RTS21

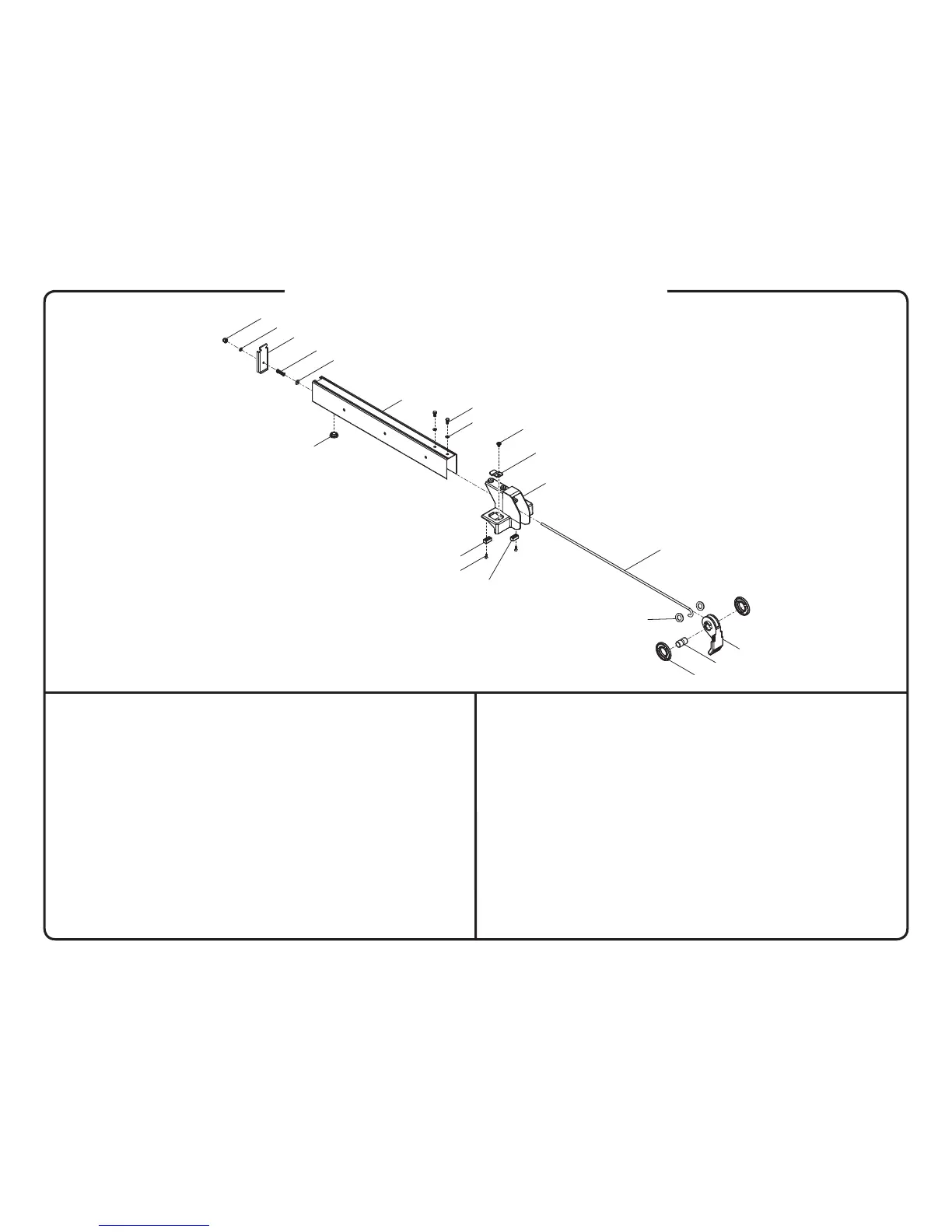

FIGURE C
1
2
3
4
19
6
7
2
9
10
11
12
13
14
8
15
18
5
17
16
1 411071001 Lock Nut (M6) .................................................. 1
2 412011030 Washer (D6.5 x D16 x 1.5t) .............................. 3
3 089037011032 Rear Clamping Plate ........................................ 1
4 0121010915 Compression Spring ........................................ 1
5 089037011039 Front Block Slider, right ................................... 1
6 089037011033 Rip Fence ......................................................... 1
7 410051001 Screw (M6 x 15 mm, Hex Truss Hd.) ............... 2
8 412011115 Washer (D16 x D25 x 1.5t) ............................... 2
9 410541003 Screw (M4 x 10 mm, Pan Hd.) ......................... 1
10 089037011034 Indicator ........................................................... 1
11 089037011035 Front Block ...................................................... 1
12 089037011036 Rod .................................................................. 1
13 089037011037 Clamping Handle ............................................. 1
14 0134010241 Axle .................................................................. 1
15 0121010210 Ring Pad .......................................................... 2
16 0121010209 Rip Fence Slider .............................................. 1
17 089037011038 Front Block Slider, left ...................................... 1
18 089037011040 Screw (8-32 x 8.5 mm, Flat Hd.) ...................... 2
19 412011712 Washer (D1/4 x D13 x 1.5t) .............................. 1
089037011704 Rip Fence Assembly (Inc. Key Nos. 1-18) ....... 1
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
