17 - English
CROSSPIECE
PIVOT
PLATE
OUTER
STAND
SUPPORT
BRACKET
INNER
STAND
SUPPORT
BRACKET
BOLT

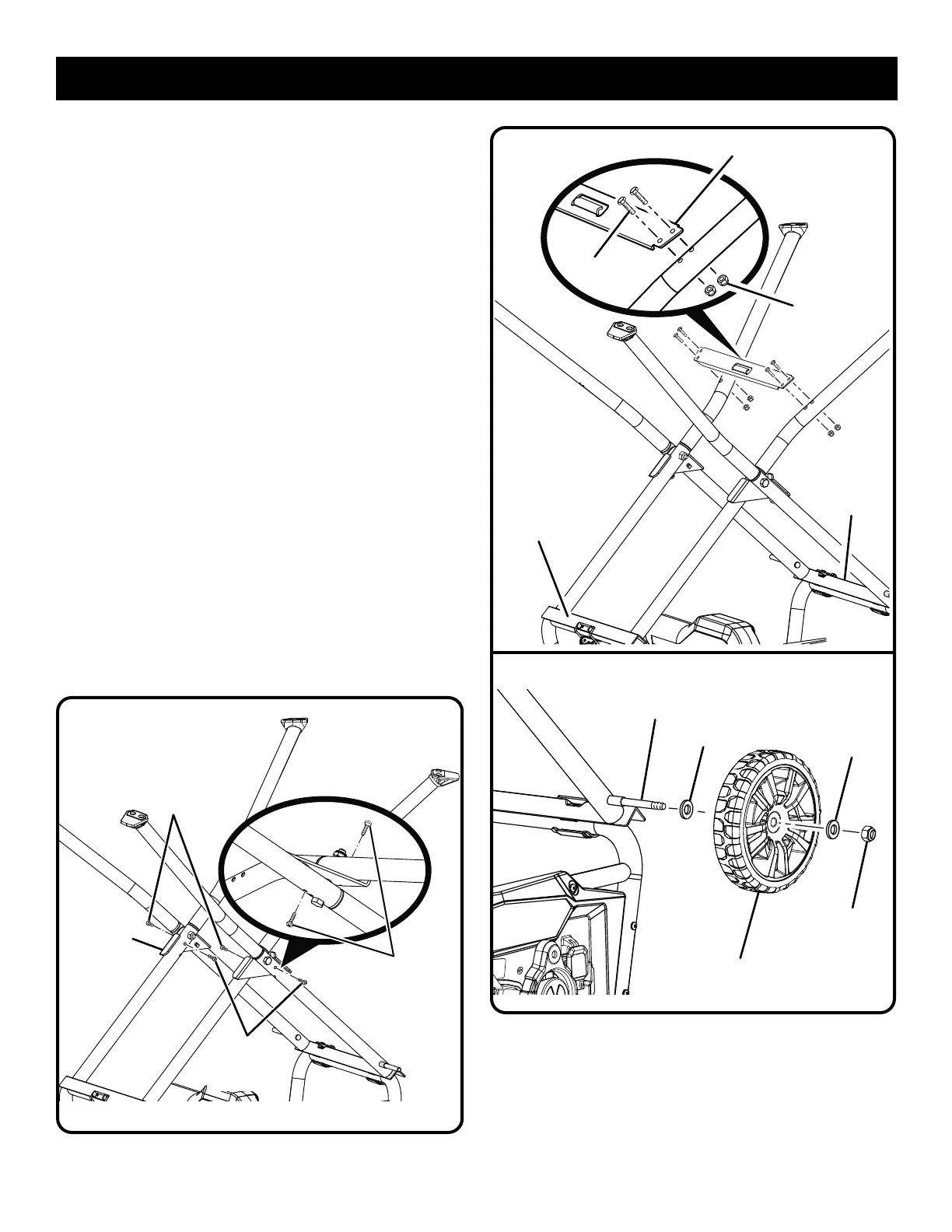

Fig. 9
Locate the screw holes in the legs, near the pivot plates.
Using a Phillips screwdriver, insert self-tapping screws
through each of the holes.
INSTALLING THE CROSSPIECE
See Figure 10.
Locate the following parts:
Lock Nut (M5)
............................................................. 4
Bolt (M5 x 35 mm) ...................................................... 4
Crosspiece ..................................................................1
Place the crosspiece in position as shown, aligning the
holes in the crosspiece with the holes in the lower part
of the stand.
Slide each of the four bolts through the holes in the
crosspiece and the holes in the legs.
Place a lock nut over each bolt. Securely tighten the nut
using an 8 mm wrench and socket.
INSTALLING WHEELS ONTO THE STAND
See Figure 11.
Locate the following parts:
Wheel
.......................................................................2
Washer (OD16 x ID8 x 2t) .........................................4
Lock Nut (M8) ...........................................................2
Slide a washer, a wheel, and another washer onto each
axle.
Thread a lock nut onto the axle and securely tighten,
using a 13 mm wrench.
Fig. 10
Fig. 11
ASSEMBLY
AXLE
WHEEL
WASHER
WASHER
LOCK
NUT
LOCK
NUT
SELF-
TAPPING
SCREW
SELF-
TAPPING
SCREW
SELF-
TAPPING
SCREW
